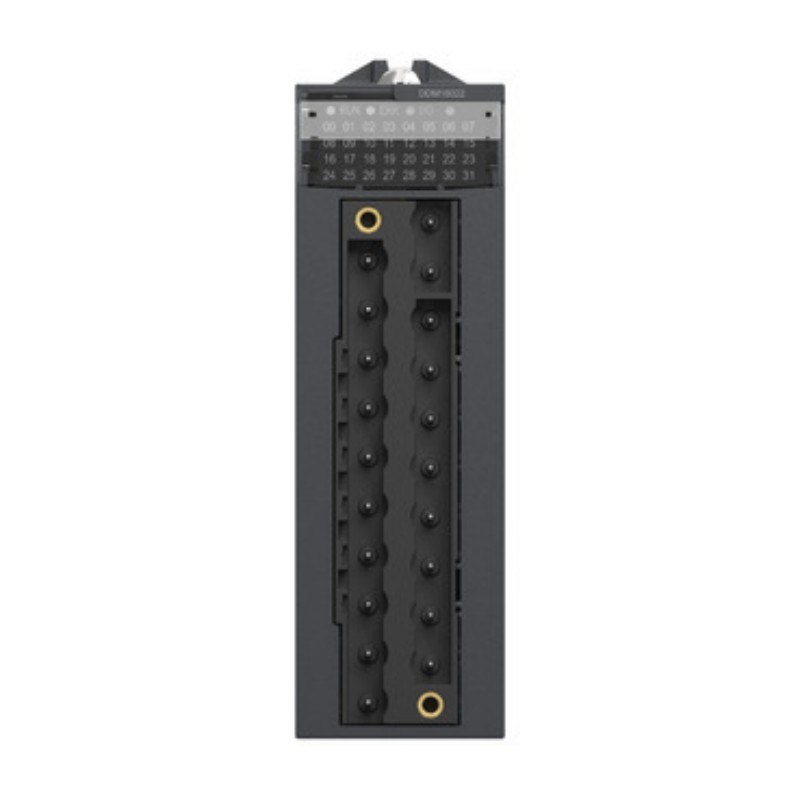

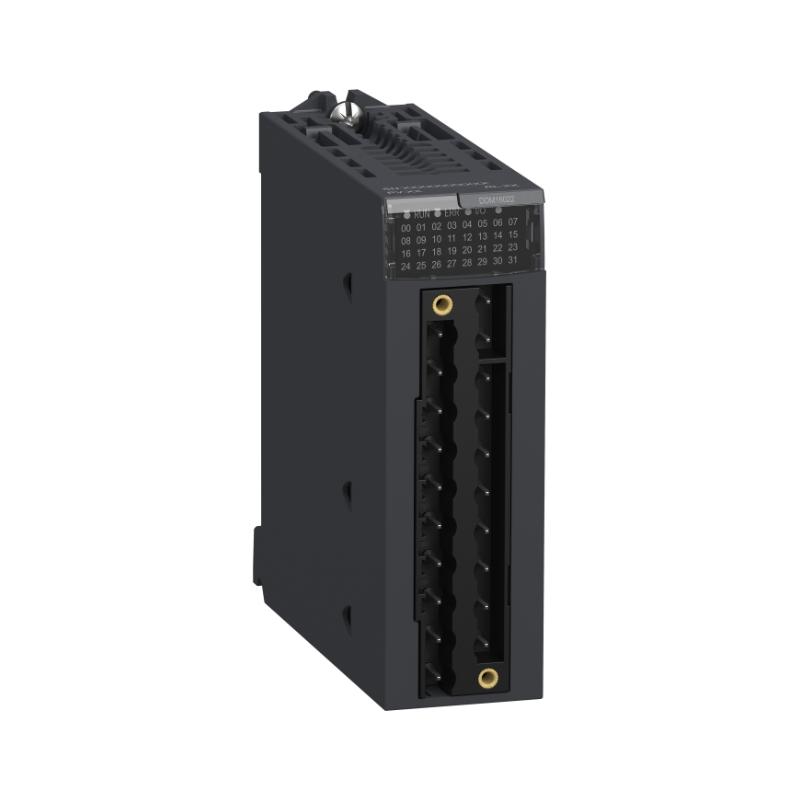

The Schneider BMXDDM16022 is a 16-channel digital input/output (I/O) module designed for use with the Modicon M580 PLC. This module combines both digital inputs and digital outputs in a single, compact unit, offering a cost-effective and flexible solution for industrial automation applications that require both types of I/O functionality. With its 16 digital inputs and 16 digital outputs, the BMXDDM16022 is ideal for controlling and monitoring a wide variety of field devices such as sensors, actuators, relays, and switches.

The BMXDDM16022 is specifically designed for industries requiring high-density I/O, such as manufacturing, process control, building automation, and energy management. Its versatility and modular design allow for easy integration into the Modicon M580 PLC, enabling efficient control of complex systems while optimizing both space and installation time.

Technical Specifications

Model: BMXDDM16022
Type: 16-Channel Digital Input/Output Module
PLC Compatibility: Modicon M580
Number of Inputs: 16 digital inputs
Number of Outputs: 16 digital outputs
Input Voltage: 24V DC
Output Voltage: 24V DC
Input Type:
- Sinking or Sourcing (configurable per channel)
Output Type:
- Transistor (NPN/PNP)
Signal Type: Digital (ON/OFF)
Mounting Type: DIN rail mountable
Dimensions: 140 mm x 120 mm x 60 mm
Weight: 0.55 kg (1.21 lbs)
Operating Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP20 (dust and accidental contact protection)
Certifications: CE, UL, RoHS compliant

Recommended Related Models

To further extend the capabilities of your Modicon M580 PLC system, Schneider Electric offers additional I/O modules that complement the BMXDDM16022:

Schneider BMXDDO1602: A 16-channel digital output module, ideal for applications requiring additional outputs for controlling field devices like actuators, relays, and motors.
Schneider BMXDAI0805: An 8-channel analog input module for integrating devices like temperature sensors, pressure sensors, and other analog field devices into your system.
Schneider BMXPIF0200: A communication interface module that allows data transfer between your Modicon M580 PLC and field devices via protocols like Modbus and Ethernet/IP.

These modules allow you to design systems with more I/O channels, enhanced communication options, or support for both digital and analog signals.

Popular Schneider Electric Models

Schneider Modicon M580 – A high-performance, Ethernet-enabled PLC designed for critical applications, offering cybersecurity, redundancy, and real-time control.
Schneider Modicon M340 – A scalable PLC solution for mid-range automation applications, offering flexible I/O expansion and robust control capabilities.
Schneider ATV320 – A Variable Frequency Drive (VFD) designed for controlling motors in applications like HVAC, pumps, and conveyors, with energy-efficient motor control.
Schneider ATV630 – A powerful VFD suitable for managing large-scale motor control applications in heavy industries.
Schneider EcoStruxure™ Control Expert – A PLC programming software that streamlines the configuration, integration, and management of Modicon PLCs.

These models complement the BMXDDM16022 by offering high performance, scalability, and seamless integration with Schneider Electric’s other automation products.

Applications

The BMXDDM16022 is ideal for a wide variety of applications where both digital input and output signals are required, including:

Manufacturing Automation: Used to control and monitor sensors, limit switches, and actuators in automated assembly lines, robotic arms, and production equipment.
Process Control: Critical in chemical, pharmaceutical, and food processing industries where digital signals from devices such as valves, level sensors, and flow meters must be controlled.
Building Automation: Controls systems such as lighting, HVAC, security systems, and access control, making it ideal for commercial and industrial buildings.
Energy Management: Connects to energy meters, pumps, and valves, optimizing the monitoring and management of energy consumption in large facilities or campuses.
Water and Wastewater Treatment: Used for controlling and monitoring flow meters, pumps, and level sensors in water treatment and distribution systems, ensuring efficient water management.
Material Handling: Controls devices like conveyors, sorters, and automated guided vehicles (AGVs) in logistics and warehouse operations, ensuring smooth material flow and distribution.

The BMXDDM16022 is a versatile module that enables efficient, high-density I/O management for complex industrial systems across these applications.

Advantages

High I/O Density: With 16 digital inputs and 16 digital outputs in one compact module, the BMXDDM16022 reduces the need for multiple modules and minimizes space requirements in control panels.
Flexible I/O Configuration: Supports both sinking and sourcing input configurations and NPN/PNP output types, offering compatibility with a wide range of field devices.
Easy Integration: Easily integrates into the Modicon M580 PLC, enhancing the modularity of your system and making it easy to scale up or modify as needed.
Compact Design: The module’s compact form factor makes it ideal for applications where space is at a premium.
Durable and Reliable: With an IP20 protection rating, the BMXDDM16022 ensures reliability in industrial environments, providing protection against dust and accidental contact with live parts.
Wide Temperature Range: It operates within a temperature range of 0°C to 60°C (32°F to 140°F), making it suitable for use in most industrial environments.
Certified for Safety: The module meets CE, UL, and RoHS certifications, ensuring that it complies with international safety, environmental, and quality standards.

Technical FAQs

How many digital inputs and outputs does the BMXDDM16022 have?
The BMXDDM16022 provides 16 digital inputs and 16 digital outputs in a single module, making it ideal for applications that require both types of signals.
What voltage does the BMXDDM16022 operate at?
The module operates with 24V DC, which is standard for most industrial digital I/O applications.
Can the inputs and outputs be configured for both sinking and sourcing?
Yes, the BMXDDM16022 supports sinking and sourcing input configurations and NPN/PNP output types, offering flexibility for different field devices.
What is the protection rating of the BMXDDM16022?
The module has an IP20 protection rating, ensuring it is protected from dust and accidental contact with live parts.
What is the weight of the BMXDDM16022 module?
The BMXDDM16022 weighs approximately 0.55 kg (1.21 lbs), making it lightweight and easy to install.
What is the operating temperature range for the BMXDDM16022?
The module operates within a temperature range of 0°C to 60°C (32°F to 140°F), suitable for most industrial environments.
Can the BMXDDM16022 be used in hazardous environments?
The module is rated IP20, so it is suitable for most industrial environments but may require additional protective measures for highly hazardous or corrosive environments.
What certifications does the BMXDDM16022 have?
The BMXDDM16022 is CE, UL, and RoHS certified, ensuring it meets international standards for safety and environmental impact.
Is the BMXDDM16022 compatible with other Schneider Electric PLCs?
The BMXDDM16022 is designed specifically for the Modicon M580 PLC, but may also be compatible with other Schneider Electric PLCs that support similar I/O modules.
How is the BMXDDM16022 mounted?
The module is DIN rail mountable, simplifying installation in industrial control panels.
