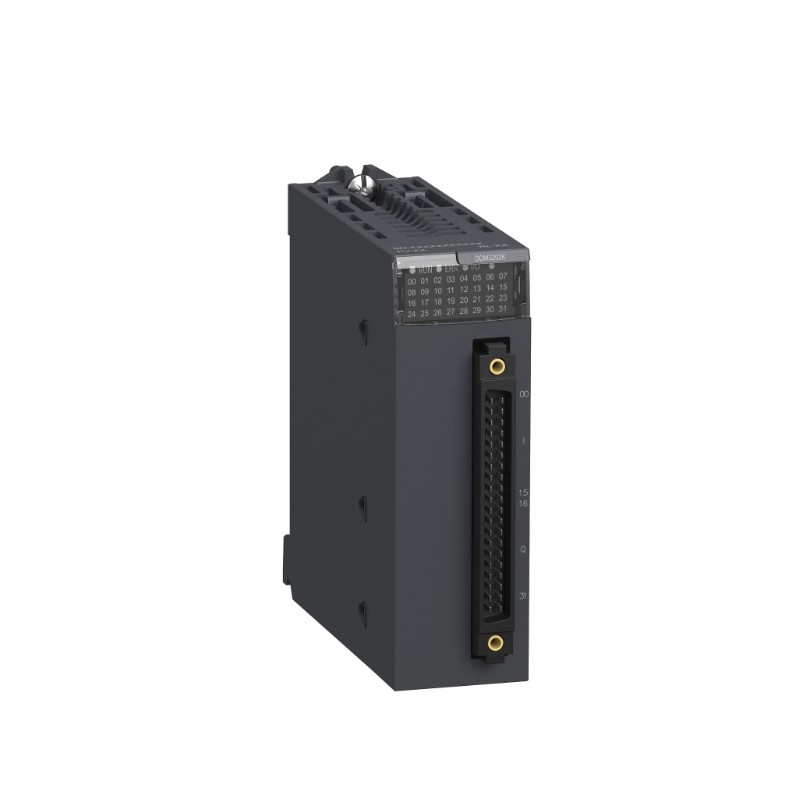

BMXDDM3202K 5 BMXDDM3202K-1 BMXDDM3202K-3 BMXDDM3202K-2

The Schneider BMXDDM3202K is a 32-channel digital input/output (I/O) module designed for use with the Modicon M580 PLC. This high-performance module provides both digital inputs and digital outputs, making it a versatile solution for controlling and monitoring a wide range of field devices in industrial automation systems. With 32 digital inputs and 32 digital outputs, the BMXDDM3202K is well-suited for applications that require a large number of digital I/O signals, including manufacturing automation, process control, building automation, and energy management.

This module allows you to connect and control various industrial devices such as sensors, switches, actuators, relays, and motors, providing a flexible and scalable I/O solution for both simple and complex control systems. Designed for high-density applications, the BMXDDM3202K can easily integrate into the Modicon M580 system, enabling efficient and real-time control of processes while minimizing the need for additional hardware.

Technical Specifications

Model: BMXDDM3202K
Type: 32-Channel Digital Input/Output Module
PLC Compatibility: Modicon M580
Number of Inputs: 32 digital inputs
Number of Outputs: 32 digital outputs
Input Voltage: 24V DC
Output Voltage: 24V DC
Input Type:
- Sinking or Sourcing (configurable per channel)
Output Type:
- Transistor (NPN/PNP)
Signal Type: Digital (ON/OFF)
Mounting Type: DIN rail mountable
Dimensions: 140 mm x 160 mm x 60 mm
Weight: 1.1 kg (2.43 lbs)
Operating Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP20 (dust and accidental contact protection)
Certifications: CE, UL, RoHS compliant

Recommended Related Models

For enhanced functionality and system expansion, Schneider Electric offers a variety of related I/O modules and accessories that are compatible with the Modicon M580 PLC:

Schneider BMXDDO3202K: A 32-channel digital output module, perfect for controlling more field devices, such as actuators, relays, and motors in larger systems.
Schneider BMXDAI1602: A 16-channel analog input module, ideal for integrating devices that output analog signals like temperature sensors and pressure transmitters.
Schneider BMXPIF0200: A communication interface module, enabling seamless communication between the Modicon M580 PLC and field devices over Modbus, Ethernet/IP, and other industrial protocols.

These modules allow you to customize your system to meet specific application needs, offering extended I/O capacity, communication flexibility, and a comprehensive automation solution.

Popular Schneider Electric Models

Schneider Modicon M580 – A high-performance, Ethernet-enabled PLC, designed for mission-critical applications, offering advanced cybersecurity and redundancy features.
Schneider Modicon M340 – A scalable PLC designed for medium to large-scale automation applications, featuring flexible I/O expansion and robust control capabilities.
Schneider ATV320 – A Variable Frequency Drive (VFD) designed for energy-efficient motor control in HVAC systems, pumps, and conveyor systems.
Schneider ATV630 – A robust VFD for controlling large motors in heavy industrial applications, providing precise speed and torque control.
Schneider EcoStruxure™ Control Expert – Schneider Electric’s PLC programming tool designed for easy configuration, integration, and management of Modicon PLCs.

These Schneider Electric products complement the BMXDDM3202K and are suitable for integration into larger automation systems, providing more I/O channels, advanced communication features, and precise control for critical industrial operations.

Applications

The BMXDDM3202K is ideal for applications that require a high number of digital input and output signals in industries such as:

Manufacturing Automation: Used to monitor and control sensors, limit switches, actuators, and other field devices in production lines, robotic systems, and automated machinery.
Process Control: Essential for industries like chemical, oil & gas, and pharmaceuticals, where digital inputs from valves, level sensors, and flow meters are required for precise process control.
Building Automation: Ideal for controlling lighting, HVAC systems, access control systems, and security devices in commercial buildings, office complexes, and industrial facilities.
Energy Management: Utilized in power distribution, substation control, and smart grid applications to monitor and control energy meters, switches, and power sensors for improved energy efficiency.
Water and Wastewater Treatment: Monitors pumps, level sensors, and flow meters in water treatment plants, ensuring the efficient and safe handling of water and wastewater systems.
Material Handling: Used for controlling conveyors, sorting systems, and automated guided vehicles (AGVs) in logistics and warehouse operations, ensuring efficient material movement and tracking.

The BMXDDM3202K module offers a flexible and scalable solution for industries that require large-scale digital I/O to optimize operational performance and process control.

Advantages

High I/O Density: With 32 digital inputs and 32 digital outputs in a single module, the BMXDDM3202K is ideal for high-density applications, saving valuable space in control panels.
Flexible Configuration: The module supports both sinking and sourcing input configurations and NPN/PNP output types, providing maximum compatibility with various field devices.
Modular and Scalable: Designed for easy integration with the Modicon M580 PLC, the BMXDDM3202K allows for scalable solutions as your system grows, making it suitable for both simple and complex applications.
Compact Design: Despite offering high-density I/O, the module is compact in size, helping to reduce the space required in industrial control systems.
Durable Construction: The IP20 protection rating ensures the module is well-protected from dust and accidental contact with live parts, ensuring long-term reliability in industrial environments.
Wide Operating Temperature Range: The module operates in temperatures from 0°C to 60°C (32°F to 140°F), making it suitable for a wide range of environments.
Certified for Safety and Compliance: The CE, UL, and RoHS certifications guarantee that the module complies with international safety, environmental, and quality standards.

Technical FAQs

How many digital inputs and outputs does the BMXDDM3202K have?
The BMXDDM3202K provides 32 digital inputs and 32 digital outputs, making it ideal for applications that require high-density digital signal processing.
What voltage does the BMXDDM3202K operate at?
The module operates with 24V DC, which is commonly used in industrial control systems for both digital inputs and outputs.
Can the inputs and outputs be configured for both sinking and sourcing?
Yes, the BMXDDM3202K supports both sinking and sourcing input configurations and NPN/PNP output types, offering flexibility for different field devices.
What is the protection rating of the BMXDDM3202K?
The module has an IP20 protection rating, providing basic protection against dust and accidental contact with live parts.
What is the weight of the BMXDDM3202K module?
The BMXDDM3202K weighs approximately 1.1 kg (2.43 lbs), which makes it easy to install in industrial control panels.
What is the operating temperature range for the BMXDDM3202K?
The module operates within a temperature range of 0°C to 60°C (32°F to 140°F), suitable for most industrial environments.
Can the BMXDDM3202K be used in hazardous environments?
The module is rated IP20, so while it is suitable for most industrial environments, it may require additional protective measures for use in hazardous or corrosive environments.
What certifications does the BMXDDM3202K have?
The BMXDDM3202K is CE, UL, and RoHS certified, ensuring it meets international standards for safety, quality, and environmental compliance.
Is the BMXDDM3202K compatible with other Schneider Electric PLCs?
The BMXDDM3202K is specifically designed for use with the Modicon M580 PLC, but may be compatible with other Schneider Electric PLCs that support similar I/O modules.
How is the BMXDDM3202K mounted?
The module is DIN rail mountable, simplifying installation in industrial control panels.
