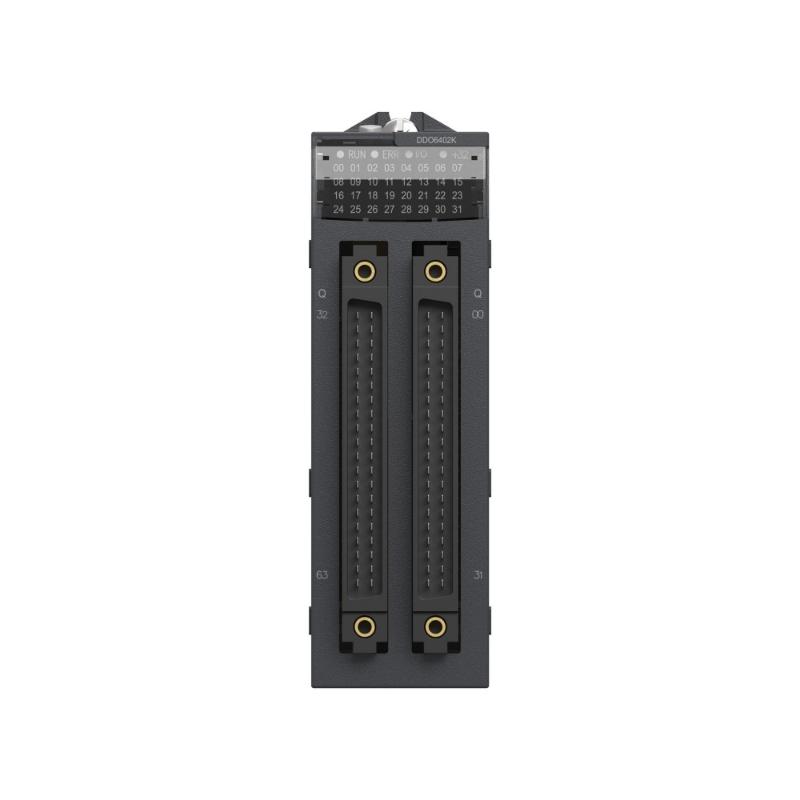

The Schneider BMXDDO6402K is a high-density 64-channel digital output module designed for integration with the Modicon M580 PLC. This module provides a highly efficient solution for controlling a large number of digital devices in demanding industrial applications. The BMXDDO6402K module is ideal for large-scale automation systems, manufacturing processes, building control systems, and energy management, where a high number of digital outputs are required in a compact form factor.

With 64 digital outputs, the BMXDDO6402K offers a significant reduction in space and wiring requirements, making it an ideal choice for applications that demand high I/O density, such as robotic systems, automated production lines, power distribution systems, and large-scale industrial control systems. Designed for 24V DC output voltage, this module also supports NPN and PNP configurations, providing flexibility and compatibility with a wide range of field devices.

Technical Specifications

Model: BMXDDO6402K
Type: 64-Channel Digital Output Module
PLC Compatibility: Modicon M580
Number of Outputs: 64 digital outputs
Output Voltage: 24V DC
Output Type:
- Transistor (NPN/PNP)
Signal Type: Digital (ON/OFF)
Mounting Type: DIN rail mountable
Dimensions: 140 mm x 360 mm x 60 mm
Weight: 1.5 kg (3.31 lbs)
Operating Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP20 (dust and accidental contact protection)
Certifications: CE, UL, RoHS compliant

Recommended Related Models

To further expand the capabilities of your Modicon M580 PLC system and enhance the flexibility of your industrial automation, Schneider Electric offers several complementary I/O modules and accessories:

Schneider BMXDDI6402K: A 64-channel digital input module that allows for the monitoring of a large number of digital signals from sensors, switches, and other field devices.
Schneider BMXDAI1602: A 16-channel analog input module designed for the integration of analog devices such as temperature sensors, pressure transducers, and flow meters.
Schneider BMXPIF0200: A communication interface module that enables communication between the Modicon M580 PLC and field devices via industrial protocols, including Modbus and Ethernet/IP.

These modules provide additional flexibility in your automation setup, allowing for the integration of more devices and enhanced communication capabilities.

Popular Schneider Electric Models

Schneider Modicon M580 – A high-performance, Ethernet-enabled PLC designed for critical industrial applications, offering advanced cybersecurity, redundancy, and real-time control.
Schneider Modicon M340 – A flexible and scalable PLC solution designed for medium-to-large-scale applications, supporting I/O expansion and communication flexibility.
Schneider ATV320 – A Variable Frequency Drive (VFD) that offers efficient motor control for applications such as HVAC systems, pumps, and conveyors.
Schneider ATV630 – A robust VFD for controlling large motors in heavy-duty industrial applications, offering precise control and energy savings.
Schneider EcoStruxure™ Control Expert – A PLC programming software that simplifies the configuration, integration, and management of Modicon PLCs, ensuring ease of use and scalability.

These Schneider Electric products complement the BMXDDO6402K, enhancing the overall performance and capabilities of industrial automation systems.

Applications

The BMXDDO6402K is ideal for applications requiring high-density digital output control. Some common applications include:

Manufacturing Automation: Controls numerous devices such as motors, actuators, solenoids, and robotic systems in automated production lines, improving efficiency, flexibility, and speed.
Process Control: In industries like chemical, oil & gas, and pharmaceuticals, the module is used to control various devices, including valves, pumps, and conveyors.
Building Automation: Controls systems such as lighting, HVAC, access control, and security systems in large commercial and industrial buildings, optimizing energy consumption and comfort.
Energy Management: Used in smart grid systems and energy distribution, it helps control switchgear, energy meters, and power relays, enabling efficient energy management and reducing consumption.
Water and Wastewater Treatment: Manages pumps, valves, and flow meters in water treatment plants, ensuring proper water distribution and waste processing.
Material Handling: Ideal for controlling conveyors, sorting systems, and automated guided vehicles (AGVs) in logistics and warehouse operations, enhancing material flow and operational efficiency.

The BMXDDO6402K is perfect for large-scale automation systems that require 64 digital outputs to control a wide variety of field devices, making it a versatile solution for complex industrial applications.

Advantages

High-Density I/O: With 64 digital outputs in a single module, the BMXDDO6402K enables high-density output control in a compact, space-saving design, reducing panel size and wiring complexity.
Flexible Output Configuration: Supports both NPN and PNP output configurations, providing compatibility with a broad range of industrial devices.
Scalable Solution: Integrates seamlessly with the Modicon M580 PLC, allowing for easy expansion as your automation system grows, without the need for additional hardware.
Durable and Reliable: Designed with an IP20 protection rating, the module is well-suited for industrial environments, providing protection from dust and accidental contact.
Wide Operating Temperature Range: The module operates in a temperature range of 0°C to 60°C (32°F to 140°F), making it suitable for most industrial environments.
Certified for Compliance: The CE, UL, and RoHS certifications ensure the BMXDDO6402K meets international standards for safety, quality, and environmental impact.

Technical FAQs

How many digital outputs does the BMXDDO6402K have?
The BMXDDO6402K provides 64 digital outputs, making it ideal for applications that require high-density output control.
What voltage does the BMXDDO6402K operate at?
The module operates with 24V DC outputs, a standard voltage for digital output devices in industrial control systems.
Can the digital outputs be configured for both NPN and PNP?
Yes, the BMXDDO6402K supports both NPN and PNP output configurations, providing compatibility with a wide variety of field devices.
What is the protection rating of the BMXDDO6402K?
The BMXDDO6402K has an IP20 protection rating, ensuring protection against dust and accidental contact with live parts.
What is the weight of the BMXDDO6402K module?
The module weighs approximately 1.5 kg (3.31 lbs), making it manageable and easy to install in control panels.
What is the operating temperature range for the BMXDDO6402K?
The module operates within a temperature range of 0°C to 60°C (32°F to 140°F), suitable for most industrial applications.
Can the BMXDDO6402K be used in hazardous environments?
While the IP20 rating provides basic protection, the module may require additional protective measures for use in highly hazardous or corrosive environments.
What certifications does the BMXDDO6402K have?
The BMXDDO6402K is CE, UL, and RoHS certified, meeting international standards for quality, safety, and environmental compliance.
Is the BMXDDO6402K compatible with other Schneider Electric PLCs?
The BMXDDO6402K is specifically designed for use with the Modicon M580 PLC, but may also be compatible with other Schneider Electric PLCs that support similar I/O modules.
How is the BMXDDO6402K mounted?
The module is DIN rail mountable, simplifying installation and making it easy to integrate into industrial control panels.
