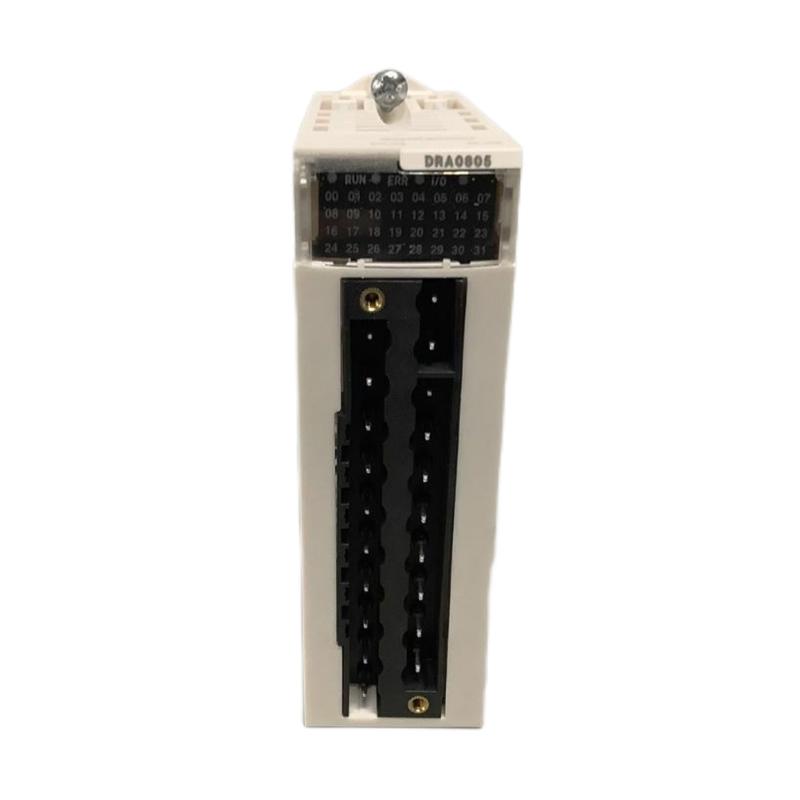

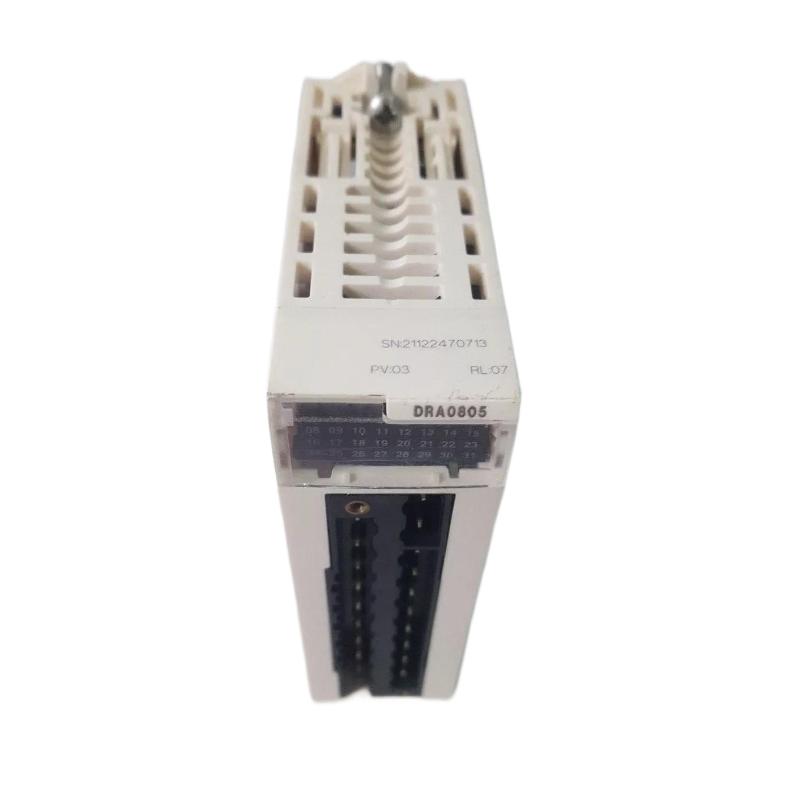

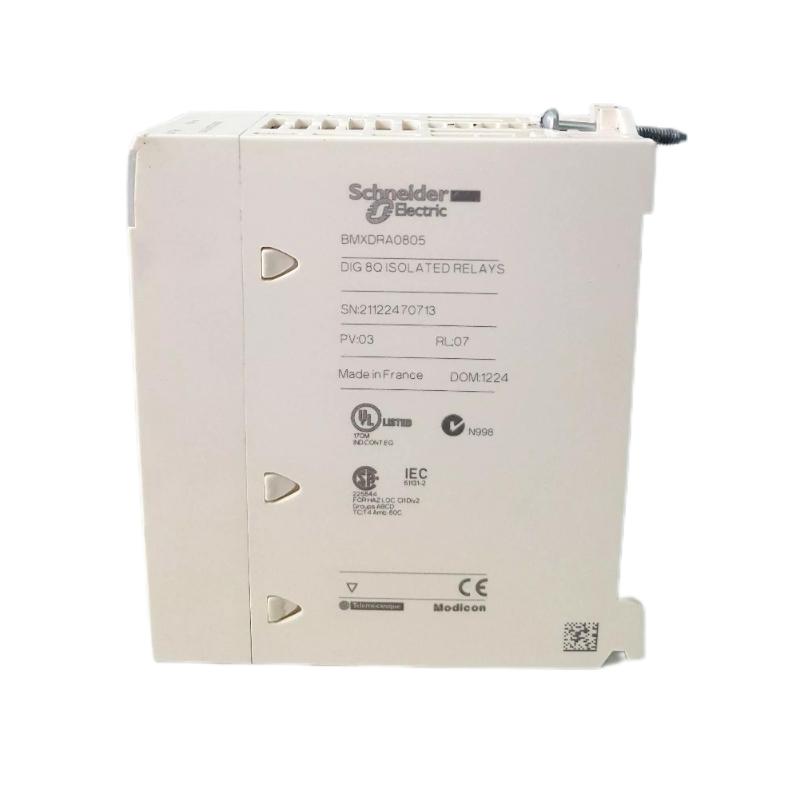

BMXDRA0805 5 Schneider BMXDRA0805-2 Schneider BMXDRA0805-3 Schneider BMXDRA0805-1

The Schneider BMXDRA0805 is an 8-channel relay output module designed for use with the Modicon M580 PLC. This module provides a flexible and reliable solution for controlling a variety of devices that require dry contact relay outputs, such as motors, lights, solenoids, and alarm systems. The BMXDRA0805 is ideal for applications in manufacturing automation, process control, building management, and energy systems, where robust relay output control is essential.

With 8 relay outputs, the BMXDRA0805 is designed to handle higher voltages and currents compared to typical transistor-based outputs, making it suitable for controlling devices that require AC or DC voltage switching. The module integrates seamlessly into the Modicon M580 PLC system, offering both NO (Normally Open) and NC (Normally Closed) relay configurations for greater flexibility in different types of applications.

Technical Specifications

Model: BMXDRA0805
Type: 8-Channel Relay Output Module
PLC Compatibility: Modicon M580
Number of Outputs: 8 relay outputs
Relay Type:
- SPDT (Single Pole, Double Throw)
- NO (Normally Open) / NC (Normally Closed)
Output Voltage:
- AC: 250V AC, 3A
- DC: 24V DC, 3A
Signal Type: Digital (ON/OFF)
Mounting Type: DIN rail mountable
Dimensions: 140 mm x 120 mm x 60 mm
Weight: 0.55 kg (1.21 lbs)
Operating Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP20 (dust and accidental contact protection)
Certifications: CE, UL, RoHS compliant

Recommended Related Models

For expanding your Modicon M580 PLC system and improving its versatility, Schneider Electric offers additional modules and accessories:

Schneider BMXDDI0805: A 8-channel digital input module, useful for monitoring switches, sensors, and other field devices that require digital signal inputs.
Schneider BMXDAI1602: A 16-channel analog input module, ideal for integrating analog sensors such as temperature transmitters and pressure sensors into your control system.
Schneider BMXPIF0200: A communication interface module, enabling communication between the Modicon M580 PLC and field devices over industrial communication protocols such as Ethernet/IP, Modbus, and Profibus.

These modules provide a flexible and scalable approach to building a robust industrial automation system with Schneider Electric products.

Popular Schneider Electric Models

Schneider Modicon M580 – A high-performance PLC with Ethernet connectivity and cybersecurity features, designed for mission-critical applications.
Schneider Modicon M340 – A versatile PLC suitable for medium to large automation systems, offering modular I/O options and powerful communication capabilities.
Schneider ATV320 – A Variable Frequency Drive (VFD) offering energy-efficient motor control for applications such as pumps, HVAC, and conveyors.
Schneider ATV630 – A heavy-duty VFD designed for controlling large motors in industrial applications requiring robust performance.
Schneider EcoStruxure™ Control Expert – A programming software for Modicon PLCs, enabling easy integration, configuration, and management of your control system.

These Schneider Electric solutions, when paired with the BMXDRA0805, can help you develop a complete, scalable automation solution for various industrial sectors.

Applications

The BMXDRA0805 is ideal for controlling a variety of industrial devices that require relay-based outputs. Typical applications include:

Manufacturing Automation: Controls motors, pumps, and actuators in production lines, helping automate processes and increase throughput.
Process Control: Used in industries such as chemical, pharmaceutical, and food processing, where relays control devices like solenoids, valves, and temperature controllers.
Building Automation: Controls systems such as lighting, HVAC, fire alarms, and security devices in commercial and industrial buildings, optimizing energy consumption and safety.
Energy Management: Manages energy meters, power relays, and other control devices in energy distribution systems, enabling efficient power management.
Water and Wastewater Treatment: Used to control pumps, motors, and level sensors in water treatment facilities and systems, ensuring proper water distribution and waste management.
Material Handling: Controls conveyor systems, sorting mechanisms, and automated guided vehicles (AGVs) in logistics operations, improving material flow and operational efficiency.

The BMXDRA0805 offers precise control over field devices with higher power requirements, making it an essential component for industrial systems that use relay-based controls.

Advantages

High Power Handling: The BMXDRA0805 supports both AC (250V) and DC (24V) relay outputs, with 3A current capacity per channel, making it ideal for controlling higher-power devices.
Flexible Relay Configurations: The module supports both Normally Open (NO) and Normally Closed (NC) configurations, allowing for greater flexibility in different application scenarios.
Easy Integration: Seamlessly integrates into the Modicon M580 PLC system, simplifying configuration and reducing setup time.
Compact and Efficient Design: The 8-channel relay output module is compact, saving space in control cabinets and reducing wiring complexity in large systems.
Robust and Reliable: With an IP20 protection rating, the module offers solid protection against dust and accidental contact with live parts, ensuring dependable operation in industrial environments.
Wide Operating Temperature Range: The module can operate in temperatures from 0°C to 60°C (32°F to 140°F), making it suitable for most industrial applications.
Certified for Compliance: The CE, UL, and RoHS certifications ensure the BMXDRA0805 meets the highest international standards for safety, quality, and environmental sustainability.

Technical FAQs

How many relay outputs does the BMXDRA0805 have?
The BMXDRA0805 has 8 relay outputs, ideal for controlling multiple high-power devices such as motors, solenoids, and lights.
What is the output voltage range of the BMXDRA0805?
The module supports AC output of up to 250V and DC output of 24V, offering flexibility for a wide range of applications.
What is the current capacity of each output?
Each relay output can handle up to 3A, making it suitable for controlling high-power devices in industrial settings.
Can the BMXDRA0805 be used with both AC and DC devices?
Yes, the BMXDRA0805 supports both AC (250V) and DC (24V) relay outputs, allowing for versatile use in different industrial applications.
What is the weight of the BMXDRA0805 module?
The BMXDRA0805 weighs approximately 0.55 kg (1.21 lbs), making it easy to handle and install in control panels.
What is the protection rating of the BMXDRA0805?
The BMXDRA0805 has an IP20 protection rating, offering protection against dust and accidental contact with live parts.
What is the operating temperature range for the BMXDRA0805?
The module operates within a temperature range of 0°C to 60°C (32°F to 140°F), suitable for most industrial environments.
Can the BMXDRA0805 be used in hazardous environments?
The IP20 rating provides basic protection, but additional protective measures may be required for use in more hazardous or corrosive environments.
Is the BMXDRA0805 compatible with other Schneider Electric PLCs?
The BMXDRA0805 is specifically designed for use with the Modicon M580 PLC, though it may also be compatible with other Schneider Electric PLCs that support similar I/O modules.
How is the BMXDRA0805 mounted?
The BMXDRA0805 is DIN rail mountable, making it easy to install in industrial control panels.
