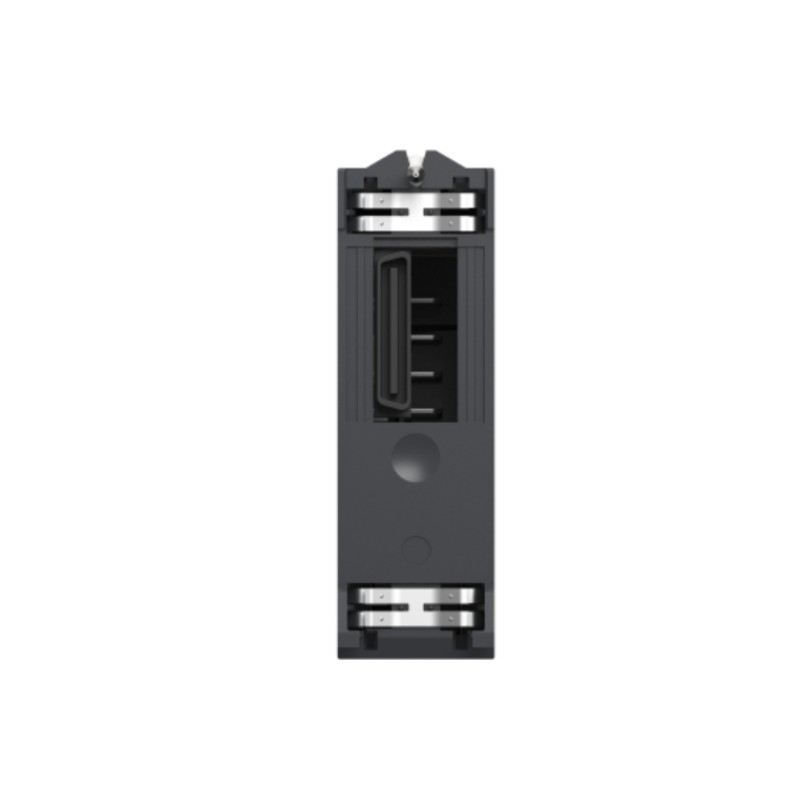

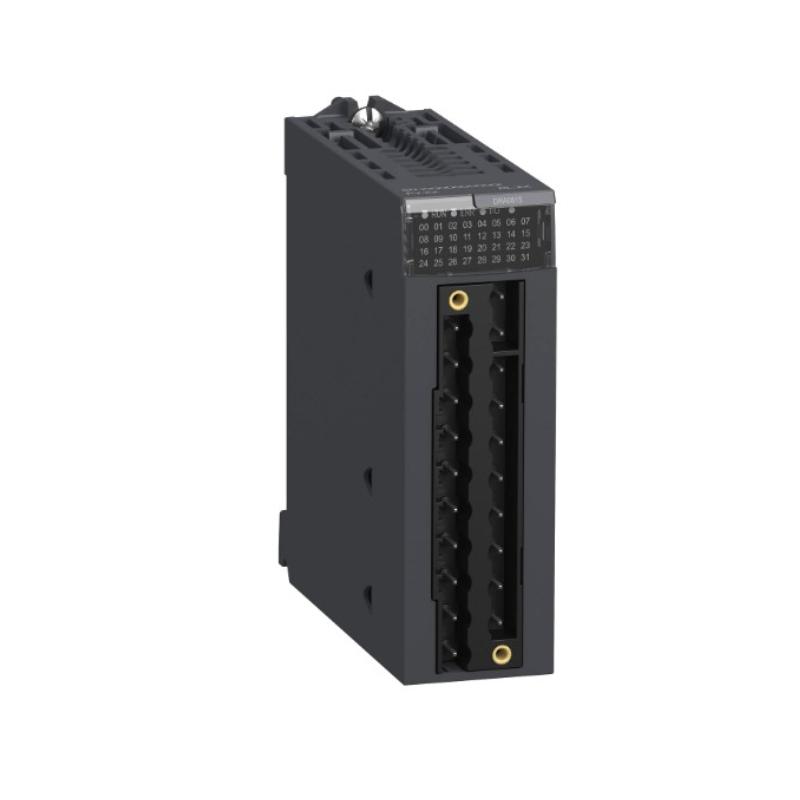

BMXDRA0815 (1) BMXDRA0815 (2) BMXDRA0815 (3) BMXDRA0815 (4)

The Schneider BMXDRA0815 is an 8-channel relay output module designed for use with the Modicon M580 PLC. This high-performance module is engineered to provide reliable control for industrial applications that require relay switching for various devices, such as motors, solenoids, lights, alarms, and valves. The BMXDRA0815 module is perfect for applications in industries like manufacturing automation, process control, building management, and energy distribution, where digital on/off switching is essential.

With 8 relay outputs, the BMXDRA0815 supports both AC and DC voltages, allowing it to manage a variety of industrial devices that require high-power switching. It offers both Normally Open (NO) and Normally Closed (NC) configurations, providing the flexibility needed for different control scenarios. This module integrates seamlessly into the Modicon M580 PLC, offering reliable, fast switching for automation systems.

Technical Specifications

Model: BMXDRA0815
Type: 8-Channel Relay Output Module
PLC Compatibility: Modicon M580
Number of Outputs: 8 relay outputs
Relay Type:
- SPDT (Single Pole, Double Throw)
- NO (Normally Open) / NC (Normally Closed)
Output Voltage:
- AC: 250V AC, 5A
- DC: 24V DC, 5A
Signal Type: Digital (ON/OFF)
Mounting Type: DIN rail mountable
Dimensions: 140 mm x 120 mm x 60 mm
Weight: 0.55 kg (1.21 lbs)
Operating Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP20 (dust and accidental contact protection)
Certifications: CE, UL, RoHS compliant

Recommended Related Models

To enhance your Modicon M580 PLC system, Schneider Electric offers a variety of additional I/O modules and accessories:

Schneider BMXDDI0805: An 8-channel digital input module that allows for the monitoring of various digital signals from sensors, switches, and other field devices.
Schneider BMXDAI1602: A 16-channel analog input module, perfect for integrating temperature sensors, pressure sensors, and other analog field devices into your automation system.
Schneider BMXPIF0200: A communication interface module, enabling Ethernet/IP, Modbus, or Profibus communication between the Modicon M580 PLC and external devices.

These Schneider Electric modules, when combined with the BMXDRA0815, offer expanded I/O capabilities and communication flexibility for industrial automation systems.

Popular Schneider Electric Models

Schneider Modicon M580 – A high-performance, Ethernet-enabled PLC with advanced cybersecurity and redundancy, ideal for mission-critical industrial applications.
Schneider Modicon M340 – A flexible and scalable PLC system designed for medium-sized automation projects, featuring modular I/O and communication options.
Schneider ATV320 – A Variable Frequency Drive (VFD) offering energy-efficient motor control for applications such as HVAC, pumps, and conveyors.
Schneider ATV630 – A VFD designed for controlling large motors in demanding applications, providing enhanced energy efficiency and system performance.
Schneider EcoStruxure™ Control Expert – A PLC programming software solution for configuring, integrating, and managing Modicon PLCs, ensuring ease of use and scalability.

These Schneider Electric products complement the BMXDRA0815, enhancing system performance and providing a comprehensive solution for automation control.

Applications

The BMXDRA0815 module is perfect for controlling a variety of devices in industrial automation systems. Common applications include:

Manufacturing Automation: Controls motors, actuators, and pumps in automated production lines, improving productivity and operational efficiency.
Process Control: Used in industries like chemical, pharmaceutical, and food processing, the module helps manage devices such as valves, solenoids, and pneumatic actuators.
Building Automation: Ideal for controlling lighting, HVAC systems, alarm systems, and access control in large commercial buildings or industrial facilities.
Energy Management: Manages energy relays, meters, and switchgear in smart grids, power distribution, and building energy management systems.
Water and Wastewater Treatment: Controls pumps, motors, and level sensors in water treatment plants to ensure effective water management and treatment processes.
Material Handling: Controls conveyor belts, sorting systems, and automated guided vehicles (AGVs), ensuring smooth and efficient material flow in warehouses and logistics centers.

With 8 relay outputs, the BMXDRA0815 is designed for applications that require high-power switching and reliable on/off control.

Advantages

High Power Handling: The BMXDRA0815 supports both AC (250V) and DC (24V) relay outputs with a 5A current capacity, making it suitable for controlling high-power devices such as motors, lights, and solenoids.
Flexible Relay Configurations: The module supports Normally Open (NO) and Normally Closed (NC) relay configurations, providing versatile control for different industrial scenarios.
Seamless Integration: The BMXDRA0815 easily integrates with the Modicon M580 PLC, ensuring smooth communication and system configuration.
Compact Design: Despite offering 8 relay outputs, the module is compact, saving space in control panels and reducing wiring complexity.
Reliable Protection: With an IP20 protection rating, the module offers reliable protection against dust and accidental contact with live parts, ensuring durability in industrial environments.
Wide Operating Temperature Range: The module is designed to operate in temperatures ranging from 0°C to 60°C (32°F to 140°F), suitable for most industrial applications.
Certified for Compliance: The BMXDRA0815 meets CE, UL, and RoHS standards, ensuring it meets international safety, quality, and environmental requirements.

Technical FAQs

How many relay outputs does the BMXDRA0815 have?
The BMXDRA0815 has 8 relay outputs, ideal for controlling multiple devices such as motors, pumps, and valves.
What is the current capacity of each relay output?
Each relay output can handle up to 5A for both AC (250V) and DC (24V) applications, making it suitable for high-power switching.
Can the BMXDRA0815 be used for both AC and DC devices?
Yes, the BMXDRA0815 supports both AC (250V) and DC (24V) relay outputs, offering versatility for various industrial applications.
What is the weight of the BMXDRA0815 module?
The module weighs approximately 0.55 kg (1.21 lbs), making it lightweight and easy to handle and install.
What is the protection rating of the BMXDRA0815?
The BMXDRA0815 has an IP20 protection rating, ensuring protection from dust and accidental contact with live parts.
What is the operating temperature range for the BMXDRA0815?
The module operates in a temperature range of 0°C to 60°C (32°F to 140°F), suitable for most industrial environments.
Can the BMXDRA0815 be used in hazardous environments?
While the IP20 rating provides basic protection, the module may require additional protection for use in highly hazardous or corrosive environments.
What certifications does the BMXDRA0815 have?
The BMXDRA0815 is CE, UL, and RoHS certified, meeting international standards for quality, safety, and environmental compliance.
Is the BMXDRA0815 compatible with other Schneider Electric PLCs?
The BMXDRA0815 is specifically designed for use with the Modicon M580 PLC, but may also be compatible with other Schneider Electric PLCs that support similar I/O modules.
How is the BMXDRA0815 mounted?
The module is DIN rail mountable, making installation easy and efficient in control panels.
