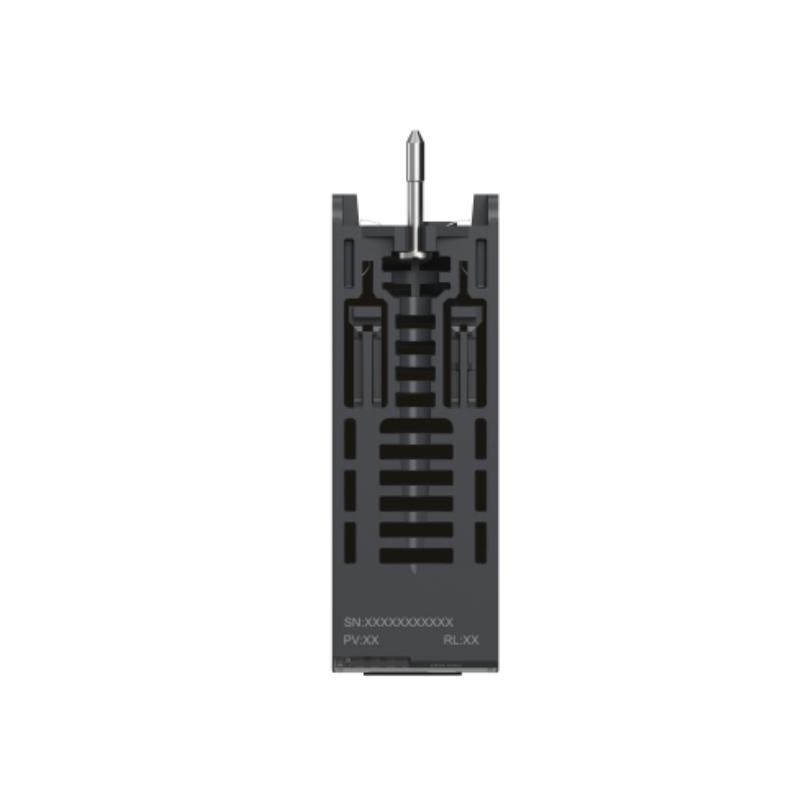

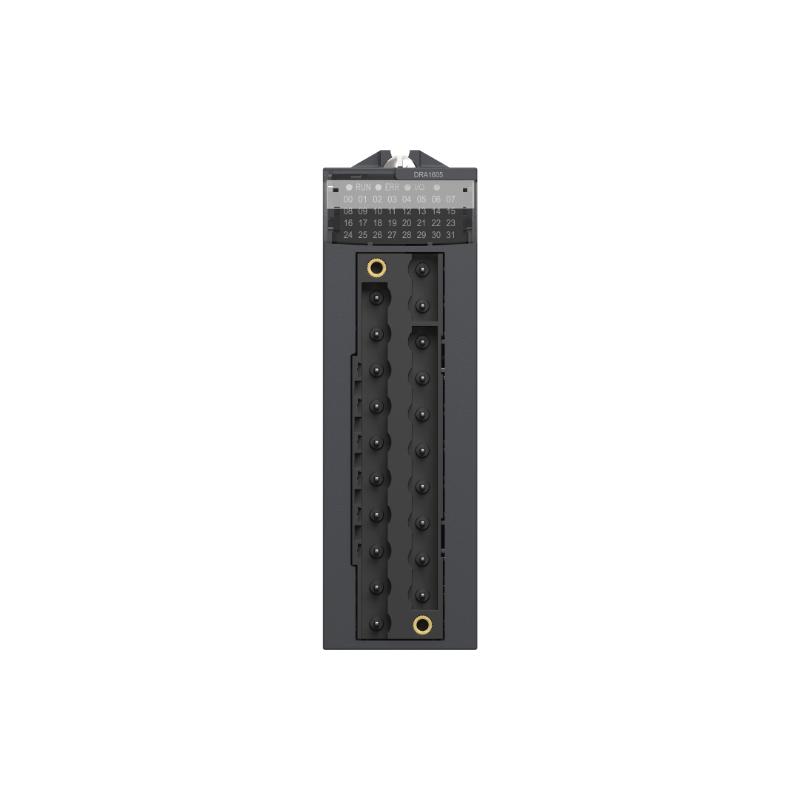

The Schneider BMXDRA1605 is a 16-channel relay output module designed for use with the Modicon M580 PLC. This module provides a reliable and efficient solution for controlling industrial devices that require dry contact relay outputs. Whether it's motors, pumps, valves, or lighting systems, the BMXDRA1605 is ideal for applications that demand high-power switching and reliable on/off control.

With 16 relay outputs, the BMXDRA1605 supports both AC and DC voltages, offering flexibility for a wide range of industrial control applications. The module features both Normally Open (NO) and Normally Closed (NC) relay configurations, making it suitable for diverse switching needs. It integrates seamlessly into the Modicon M580 PLC system, ensuring fast and efficient switching in industrial automation and control systems.

Technical Specifications

Model: BMXDRA1605
Type: 16-Channel Relay Output Module
PLC Compatibility: Modicon M580
Number of Outputs: 16 relay outputs
Relay Type:
- SPDT (Single Pole, Double Throw)
- NO (Normally Open) / NC (Normally Closed)
Output Voltage:
- AC: 250V AC, 5A
- DC: 24V DC, 5A
Signal Type: Digital (ON/OFF)
Mounting Type: DIN rail mountable
Dimensions: 140 mm x 360 mm x 60 mm
Weight: 0.9 kg (1.98 lbs)
Operating Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP20 (dust and accidental contact protection)
Certifications: CE, UL, RoHS compliant

Recommended Related Models

To complement your Modicon M580 PLC system and enhance its capabilities, Schneider Electric offers several related modules and accessories:

Schneider BMXDDI0805: An 8-channel digital input module, perfect for integrating digital sensors, switches, and other input devices into your control system.
Schneider BMXDAI1602: A 16-channel analog input module, designed for integrating temperature sensors, pressure transducers, and other analog devices.
Schneider BMXPIF0200: A communication interface module, enabling communication between the Modicon M580 PLC and field devices via industrial protocols like Ethernet/IP, Modbus, and Profibus.

These modules enhance the overall flexibility and scalability of your Modicon M580 system, making it easier to integrate various devices and communication protocols.

Popular Schneider Electric Models

Schneider Modicon M580 – A high-performance, Ethernet-enabled PLC designed for mission-critical applications, offering cybersecurity, redundancy, and real-time control.
Schneider Modicon M340 – A modular PLC for medium to large automation projects, offering expandability and communication flexibility for diverse industrial applications.
Schneider ATV320 – A Variable Frequency Drive (VFD) for motor control in applications such as HVAC, pumps, and conveyors, offering energy-efficient performance.
Schneider ATV630 – A robust VFD designed for controlling larger motors in heavy-duty industrial applications, providing energy savings and precise motor control.
Schneider EcoStruxure™ Control Expert – A PLC programming software for Modicon PLCs, enabling easy integration, configuration, and management of control systems.

These Schneider Electric products complement the BMXDRA1605 to create a complete industrial automation system.

Applications

The BMXDRA1605 is perfect for a wide range of applications requiring reliable relay switching for high-power devices. Common uses include:

Manufacturing Automation: Controls devices like motors, actuators, pumps, and conveyors in automated production lines, improving efficiency and throughput.
Process Control: In industries such as chemical, pharmaceutical, and food processing, this module helps control valves, solenoids, and level sensors.
Building Automation: Controls lighting, HVAC systems, access control, and security systems in large commercial and industrial buildings, optimizing energy use and enhancing building safety.
Energy Management: Manages power relays, energy meters, and switchgear in smart grids, power distribution, and energy management systems.
Water and Wastewater Treatment: Controls pumps, level sensors, and valves in water treatment plants to ensure proper water distribution and wastewater management.
Material Handling: Controls conveyor systems, sorting machines, and automated guided vehicles (AGVs) in logistics and warehousing operations, ensuring smooth material flow and increased efficiency.

The BMXDRA1605 offers the necessary control for these high-power devices with 16 relay outputs, making it ideal for large-scale industrial automation.

Advantages

High Power Handling: The BMXDRA1605 is capable of handling 5A per relay output for both AC (250V) and DC (24V) applications, providing robust control for high-power devices.
Flexible Relay Configurations: The module supports both Normally Open (NO) and Normally Closed (NC) configurations, providing flexibility for different industrial switching needs.
Seamless Integration: It integrates easily with the Modicon M580 PLC, providing quick and efficient control over your industrial automation system.
Compact Design: Despite offering 16 relay outputs, the module maintains a compact design, saving space in control panels and reducing wiring complexity.
Reliable Protection: With an IP20 protection rating, the module offers reliable protection against dust and accidental contact with live parts, ensuring durability in industrial environments.
Wide Operating Temperature Range: The module can operate within 0°C to 60°C (32°F to 140°F), making it suitable for most industrial environments.
Certified Compliance: The BMXDRA1605 complies with CE, UL, and RoHS standards, ensuring it meets international safety, quality, and environmental regulations.

Technical FAQs

How many relay outputs does the BMXDRA1605 have?
The BMXDRA1605 features 16 relay outputs, ideal for controlling multiple high-power devices such as motors, solenoids, lights, and more.
What is the current capacity for each relay output?
Each relay output can handle 5A, providing robust control for devices requiring higher power.
Can the BMXDRA1605 be used for both AC and DC devices?
Yes, the module supports both AC (250V) and DC (24V) relay outputs, offering flexibility for various applications.
What is the protection rating of the BMXDRA1605?
The BMXDRA1605 has an IP20 protection rating, offering protection from dust and accidental contact with live electrical parts.
What is the weight of the BMXDRA1605 module?
The module weighs 0.9 kg (1.98 lbs), making it easy to handle and install in control panels.
What is the operating temperature range of the BMXDRA1605?
The module operates within a temperature range of 0°C to 60°C (32°F to 140°F), suitable for most industrial environments.
What certifications does the BMXDRA1605 have?
The BMXDRA1605 is CE, UL, and RoHS certified, ensuring compliance with international standards for safety, quality, and environmental sustainability.
How is the BMXDRA1605 mounted?
The module is DIN rail mountable, simplifying installation and making it easy to integrate into industrial control systems.
Is the BMXDRA1605 compatible with other Schneider Electric PLCs?
The BMXDRA1605 is designed specifically for the Modicon M580 PLC, though it may be compatible with other Schneider Electric PLCs that support similar I/O modules.
What is the relay type in the BMXDRA1605?
The module uses SPDT (Single Pole, Double Throw) relays, with both Normally Open (NO) and Normally Closed (NC) configurations for versatile control.
