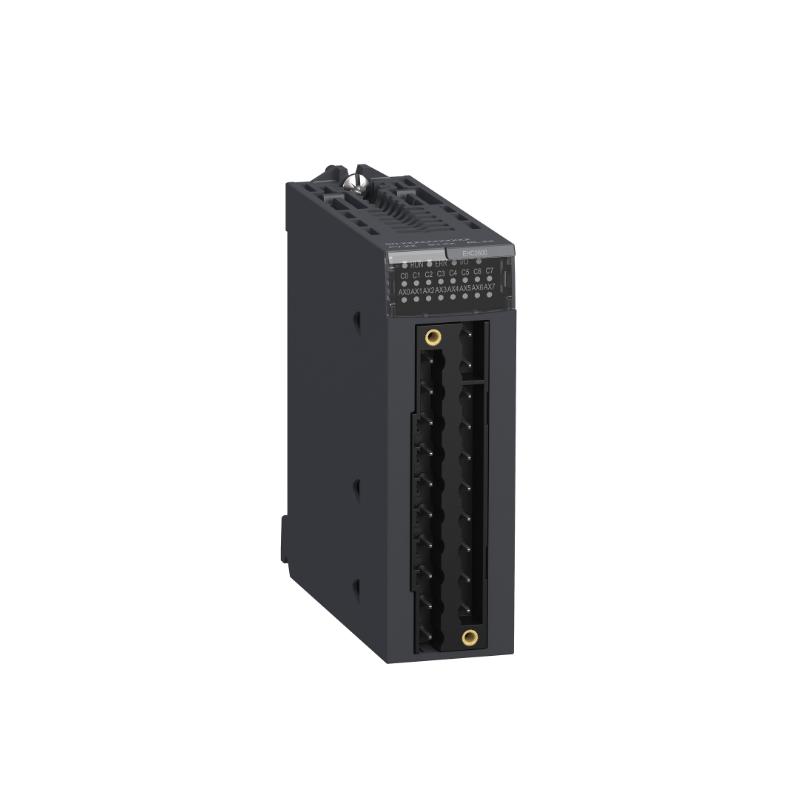

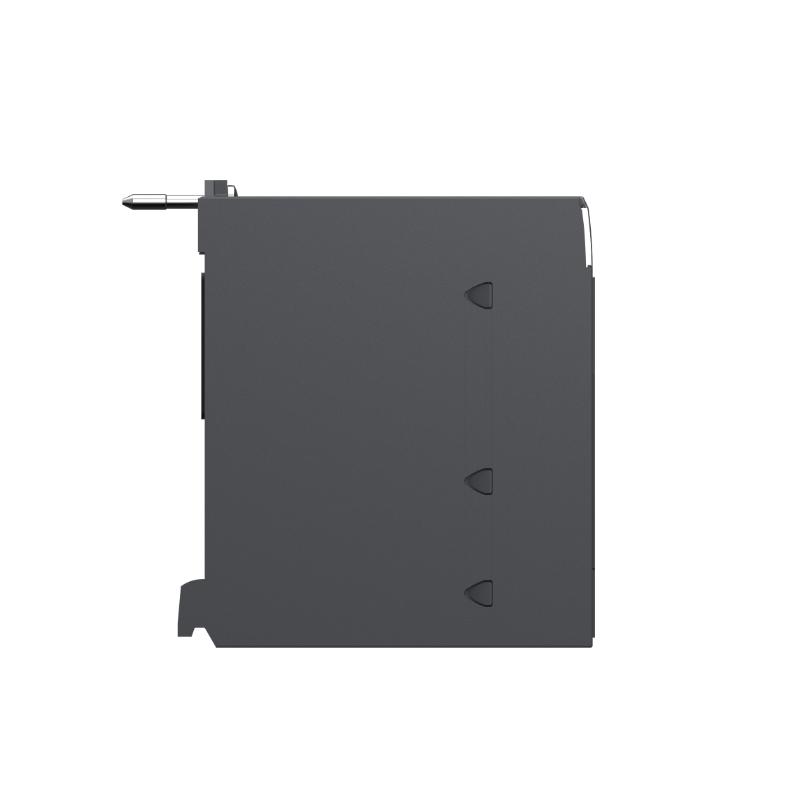

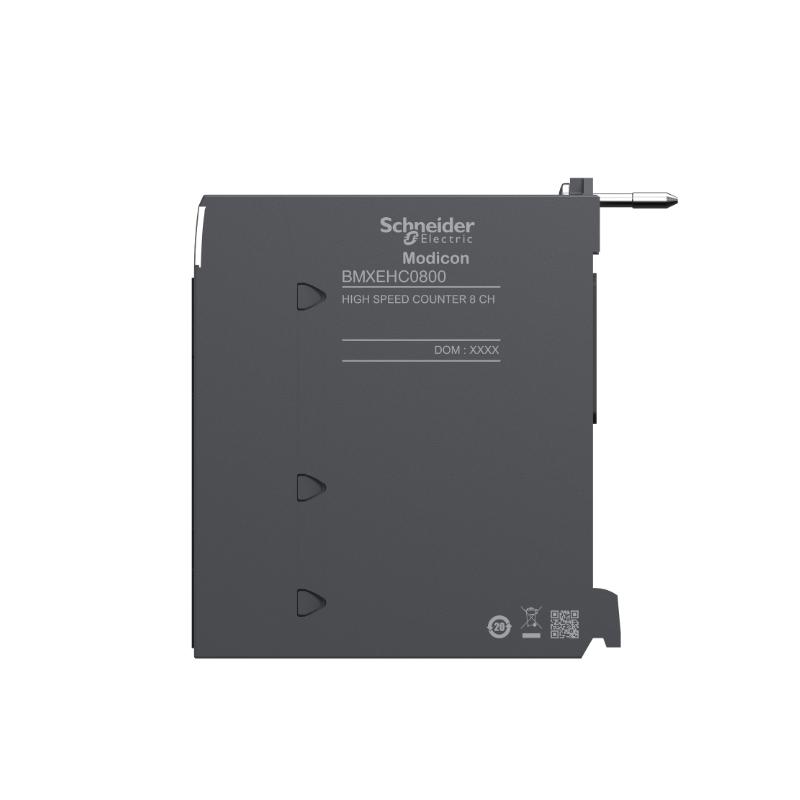

The Schneider BMXEHC0800 is an 8-channel high-speed encoder input module designed for the Modicon M580 PLC. This module is ideal for applications that require high-precision measurement and control of rotational and linear motion, such as motion control, robotics, automated material handling, and positioning systems. With 8 independent channels, it supports incremental encoders, allowing users to capture precise feedback from motors, actuators, and other mechanical systems.

The BMXEHC0800 module is designed to process encoder signals at high speeds, providing real-time position, speed, and direction data for closed-loop control systems. This module is a valuable addition to any industrial automation system that requires precise motion control or real-time feedback from rotating or linear devices.

Technical Specifications

Model: BMXEHC0800
Type: 8-Channel High-Speed Encoder Input Module
PLC Compatibility: Modicon M580
Number of Inputs: 8 independent encoder inputs
Encoder Type:
- Incremental Encoders (Quadrature, Single Ended, Differential)
Input Voltage:
- 24V DC (Nominal)
Input Signal Type:
- Differential (A, B, Z)
- Single-Ended (A, B)
Maximum Input Frequency:
- 10 MHz (for each channel)
Input Logic:
- TTL or HTL
Mounting Type: DIN rail mountable
Dimensions: 140 mm x 120 mm x 60 mm
Weight: 0.55 kg (1.21 lbs)
Operating Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP20 (dust and accidental contact protection)
Certifications: CE, UL, RoHS compliant

Recommended Related Models

Schneider Electric offers a variety of other modules and accessories that complement the BMXEHC0800 in motion control and feedback systems:

Schneider BMXDDI0805: An 8-channel digital input module that allows the integration of additional sensors or switches into your control system.
Schneider BMXDRA0805: An 8-channel relay output module for controlling devices such as motors, valves, and pumps.
Schneider BMXCPS2000: A power supply module for the Modicon M580 PLC, providing stable and reliable power for the encoder module and other I/O devices.

These Schneider Electric modules, when used together, provide an integrated solution for high-performance motion control, sensor feedback, and automation in industrial environments.

Popular Schneider Electric Models

Schneider Modicon M580 – A high-performance, Ethernet-enabled PLC, ideal for industrial automation applications with cybersecurity features and redundancy.
Schneider Modicon M340 – A modular PLC designed for medium-to-large automation systems, offering extensive communication options and flexible I/O configurations.
Schneider ATV320 – A Variable Frequency Drive (VFD) for controlling motors in applications such as HVAC, pumps, and conveyors, optimizing energy use and performance.
Schneider ATV630 – A heavy-duty VFD designed for high-power applications, delivering precise motor control in demanding industrial processes.
Schneider EcoStruxure™ Control Expert – A PLC programming software that provides efficient configuration, programming, and management of Modicon PLCs.

When paired with the BMXEHC0800, these Schneider Electric products form the core of an advanced automation and motion control system.

Applications

The BMXEHC0800 is ideal for applications requiring precise motion feedback and position tracking. Common uses include:

Motion Control Systems: Captures position, speed, and direction of rotating equipment such as motors, conveyors, and actuators, enabling precise control in systems like robotics, CNC machines, and automated assembly lines.
Automated Material Handling: Monitors the position and speed of conveyor belts, lifts, and automated guided vehicles (AGVs) to ensure smooth and efficient material flow in factories and warehouses.
Positioning Systems: Provides accurate feedback in positioning systems for applications like printing presses, packaging machines, and laser cutting systems, where precise location control is critical.
Robotics: Used to track the motion and position of robotic arms and actuators, enabling fine-tuned control in automated manufacturing and assembly applications.
Test Systems: Measures the movement and position of test equipment in applications such as product testing, calibration systems, and automated testing rigs.
Elevators and Lifts: Tracks the position of elevators and lifts, ensuring accurate vertical movement and preventing overshooting or stopping at incorrect positions.

The BMXEHC0800 module is crucial for any system that requires real-time feedback for motion control and position tracking.

Advantages

High-Speed Performance: The BMXEHC0800 supports frequencies up to 10 MHz, allowing for real-time processing of high-speed encoder signals, perfect for fast-moving systems like robotics and conveyors.
Supports Multiple Encoder Types: Compatible with both single-ended and differential encoder signals, making it suitable for a variety of industrial feedback systems.
Accurate Positioning: Provides precise position and speed feedback, which is critical for systems where motion control and positioning are essential.
Flexible Signal Input: Supports TTL and HTL logic for encoder signals, ensuring compatibility with various industrial encoder types.
Compact and Efficient Design: The module is designed to be compact, saving valuable space in control panels while still offering 8 independent encoder channels for complex control systems.
Easy Integration: Seamlessly integrates with the Modicon M580 PLC, reducing setup time and simplifying configuration for complex control systems.
Reliable Protection: With an IP20 protection rating, the module ensures durability in industrial environments, offering protection from dust and accidental contact with live parts.
Wide Temperature Range: The BMXEHC0800 operates in environments ranging from 0°C to 60°C (32°F to 140°F), making it suitable for most industrial environments.

Technical FAQs

How many encoder channels does the BMXEHC0800 have?
The BMXEHC0800 features 8 independent encoder channels, making it suitable for controlling multiple devices that require feedback on position and speed.
What types of encoders are supported by the BMXEHC0800?
The module supports incremental encoders, including both single-ended and differential configurations, for versatile feedback integration.
What is the maximum input frequency of the BMXEHC0800?
The module can handle input frequencies up to 10 MHz per channel, making it ideal for high-speed applications that require real-time feedback.
Can the BMXEHC0800 handle both TTL and HTL encoder signals?
Yes, the module is compatible with both TTL and HTL encoder signal types, providing flexibility for a range of industrial feedback devices.
What is the operating temperature range for the BMXEHC0800?
The module operates within a temperature range of 0°C to 60°C (32°F to 140°F), suitable for most industrial settings.
How is the BMXEHC0800 mounted?
The BMXEHC0800 is DIN rail mountable, allowing for easy installation in control panels and other industrial setups.
What is the weight of the BMXEHC0800?
The module weighs approximately 0.55 kg (1.21 lbs), making it easy to install and handle.
What certifications does the BMXEHC0800 have?
The BMXEHC0800 is CE, UL, and RoHS certified, ensuring compliance with international safety, quality, and environmental standards.
Can the BMXEHC0800 be used with other Schneider Electric PLCs?
The BMXEHC0800 is specifically designed for the Modicon M580 PLC, but may also be compatible with other Schneider Electric PLCs that support similar I/O modules.
What kind of protection does the BMXEHC0800 offer?
The BMXEHC0800 has an IP20 protection rating, offering basic protection against dust and accidental contact with live electrical parts.
