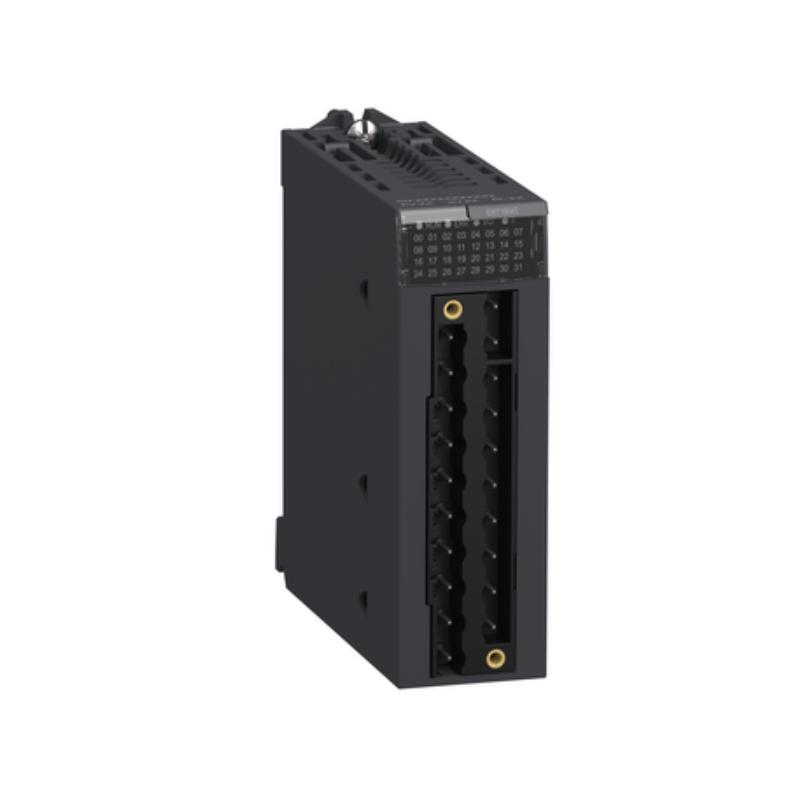

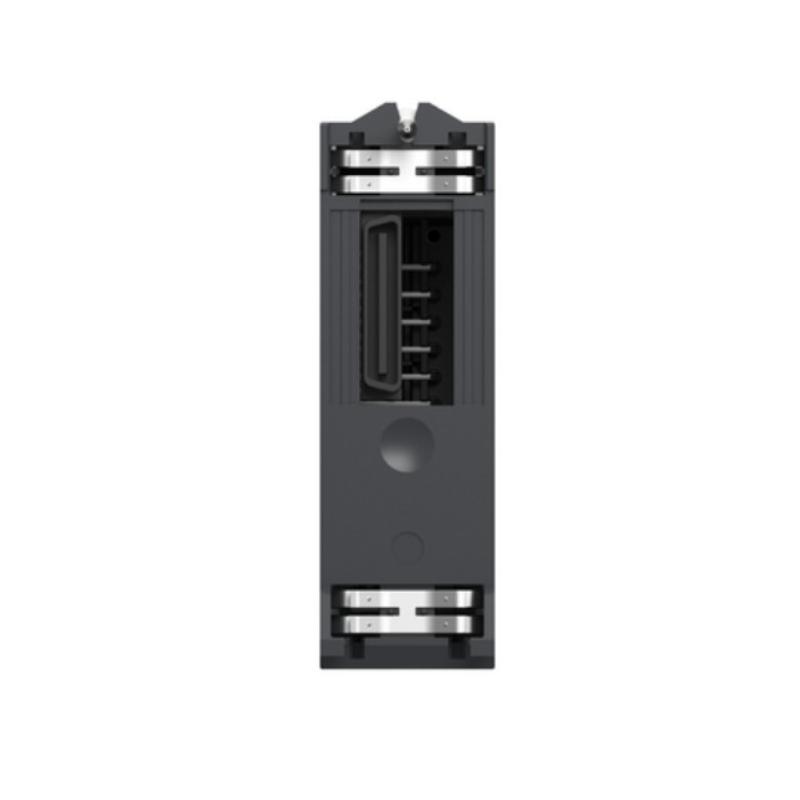

BMXERT1604T (1) BMXERT1604T (3) BMXERT1604T (4) BMXERT1604T (2)

The Schneider BMXERT1604T is a 16-channel RTD input module designed for the Modicon M580 PLC. This module is specifically designed to integrate with temperature measurement systems where Resistance Temperature Detectors (RTDs) are used. RTDs are widely used for temperature sensing in various industrial applications, offering high accuracy, stability, and reliability over a wide range of temperatures. The BMXERT1604T module provides precise temperature data, making it an essential component in process control, environmental monitoring, and energy management systems.

The BMXERT1604T supports a range of RTD types, including Pt100 and Pt1000, and is capable of processing signals with high resolution. It is ideal for industries like chemical, pharmaceutical, oil & gas, and food processing, where accurate temperature control is critical.

Technical Specifications

Model: BMXERT1604T
Type: 16-Channel RTD Input Module
PLC Compatibility: Modicon M580
Number of Inputs: 16 RTD channels
RTD Types Supported:
- Pt100 (Platinum 100 Ω)
- Pt1000 (Platinum 1000 Ω)
Temperature Measurement Range:
- Pt100: -200°C to 850°C (-328°F to 1562°F)
- Pt1000: -200°C to 850°C (-328°F to 1562°F)
Accuracy:
- 0.1°C (for most applications)
- Resolution: 0.01°C
Input Signal Type:
- RTD (Resistance Temperature Detector)
- 2-wire, 3-wire, or 4-wire configurations
Mounting Type: DIN rail mountable
Dimensions: 140 mm x 120 mm x 60 mm
Weight: 0.55 kg (1.21 lbs)
Operating Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP20 (dust and accidental contact protection)
Certifications: CE, UL, RoHS compliant

Recommended Related Models

Schneider Electric provides various I/O modules and accessories that complement the BMXERT1604T for advanced measurement and control in industrial systems:

Schneider BMXDDI0805: An 8-channel digital input module for connecting sensors and switches, expanding system monitoring capabilities.
Schneider BMXDAI1602: A 16-channel analog input module for integrating pressure sensors, flow meters, and other analog field devices into the system.
Schneider BMXCPS2000: A power supply module designed to support the Modicon M580 PLC and its I/O modules with stable and reliable power.

By combining the BMXERT1604T with these Schneider Electric modules, users can create a complete temperature monitoring and control solution for industrial applications.

Popular Schneider Electric Models

Schneider Modicon M580 – A high-performance Ethernet-enabled PLC with cybersecurity features and redundancy for mission-critical applications.
Schneider Modicon M340 – A modular PLC offering scalability and flexibility for medium-to-large automation projects, with a wide range of communication and I/O options.
Schneider ATV320 – A Variable Frequency Drive (VFD) designed for controlling motors in applications such as HVAC, pumps, and conveyors.
Schneider ATV630 – A VFD for high-power industrial applications, providing precise motor control in heavy-duty processes.
Schneider EcoStruxure™ Control Expert – A PLC programming software for configuring, programming, and managing Modicon PLCs easily.

These models, when integrated with the BMXERT1604T, allow for efficient temperature control, automation, and energy management across various industrial sectors.

Applications

The BMXERT1604T module is designed for temperature measurement in a wide variety of industrial applications, including:

Process Control: Used in industries like chemical, petrochemical, and pharmaceutical, the module helps monitor and control the temperature of reactors, tanks, and pipes.
HVAC Systems: The module is used in heating, ventilation, and air conditioning systems for accurate monitoring of temperature in air ducts, cooling coils, and water pipes.
Energy Systems: In power plants and renewable energy systems, the module monitors temperature sensors in equipment like boilers, heat exchangers, and cooling systems to ensure efficient energy production.
Food and Beverage Processing: Accurately monitors the temperature of ingredients, ovens, and cooling tanks during food production to maintain quality control.
Building Automation: Provides temperature monitoring in building management systems to control HVAC units, heating systems, and cooling systems in commercial buildings and industrial facilities.
Water Treatment Plants: Monitors temperature in water treatment processes, ensuring proper functioning of filtration and disinfection systems.

The BMXERT1604T ensures reliable and precise temperature data for processes that demand high accuracy in temperature control.

Advantages

High Accuracy and Precision: The BMXERT1604T provides 0.1°C accuracy, making it ideal for applications that require high-precision temperature measurements in critical processes.
Supports Multiple RTD Configurations: The module supports 2-wire, 3-wire, and 4-wire RTD configurations, offering flexibility for various types of RTD sensors.
Wide Temperature Range: The module supports a wide temperature range of -200°C to 850°C for both Pt100 and Pt1000 RTDs, suitable for a wide range of industrial applications.
Compact and Efficient Design: Despite offering 16 channels, the module is compact, saving space in control panels and reducing wiring complexity.
Seamless Integration: Easily integrates with the Modicon M580 PLC, ensuring smooth operation and system configuration for temperature control applications.
Reliable Protection: With an IP20 protection rating, the module ensures protection against dust and accidental contact with live parts, enhancing reliability in industrial environments.
Certified Compliance: The BMXERT1604T is CE, UL, and RoHS certified, ensuring it meets international standards for safety, quality, and environmental compliance.
Wide Operating Temperature Range: The module operates in temperatures ranging from 0°C to 60°C (32°F to 140°F), making it suitable for most industrial environments.

Technical FAQs

How many RTD channels does the BMXERT1604T have?
The BMXERT1604T offers 16 RTD input channels, making it ideal for monitoring multiple temperature sensors in large-scale applications.
What types of RTDs are supported by the BMXERT1604T?
The module supports Pt100 and Pt1000 RTDs, which are commonly used for precise temperature measurement in industrial processes.
What is the temperature range supported by the BMXERT1604T?
The module supports a temperature range of -200°C to 850°C for both Pt100 and Pt1000 RTDs, allowing it to monitor extreme temperatures in various industrial applications.
What is the accuracy of the BMXERT1604T module?
The module provides 0.1°C accuracy, ensuring precise and reliable temperature measurements for critical applications.
How is the BMXERT1604T mounted?
The BMXERT1604T is DIN rail mountable, providing easy installation and integration into control systems.
What certifications does the BMXERT1604T have?
The BMXERT1604T is CE, UL, and RoHS certified, ensuring it meets international standards for safety, quality, and environmental compliance.
Can the BMXERT1604T handle different RTD wiring configurations?
Yes, the module supports 2-wire, 3-wire, and 4-wire RTD configurations, offering flexibility for a range of applications.
What is the weight of the BMXERT1604T module?
The module weighs approximately 0.55 kg (1.21 lbs), making it easy to install and manage.
What is the protection rating of the BMXERT1604T?
The BMXERT1604T has an IP20 protection rating, offering protection from dust and accidental contact with live parts.
What is the operating temperature range for the BMXERT1604T?
The module operates in environments ranging from 0°C to 60°C (32°F to 140°F), making it suitable for most industrial conditions.
