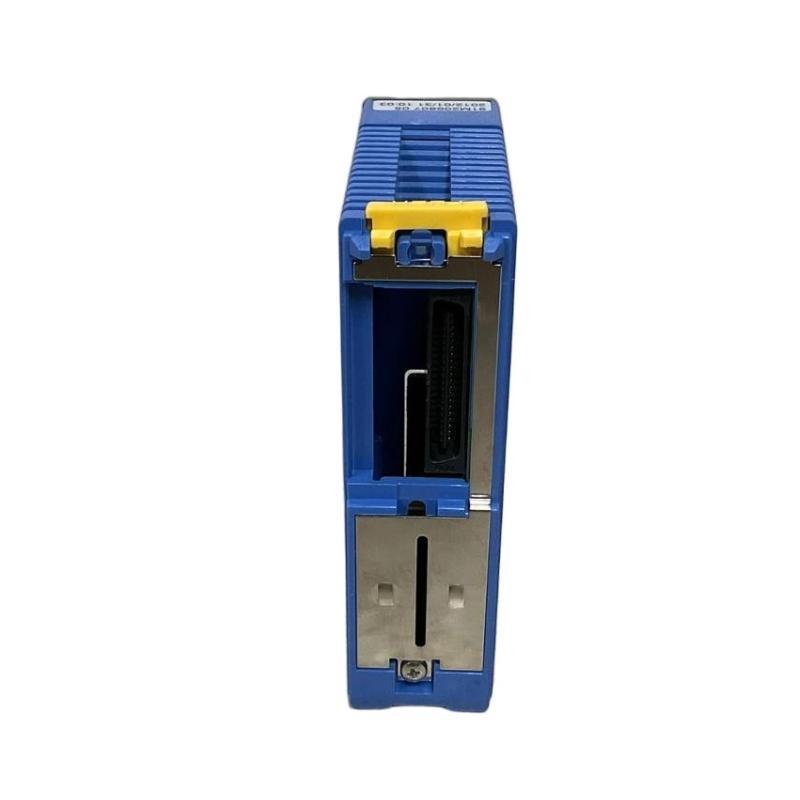

Yokogawa F3LC11-1F Personal Computer Link Module

Application Highlights

• Provides a communication link between Yokogawa F3 series DCS racks and personal computers

• Enables configuration, monitoring, and diagnostic tasks from a PC interface

• Supports data acquisition, system parameter adjustments, and troubleshooting

• Ideal for process automation, industrial monitoring, and control system management

• Facilitates safe and convenient access to DCS modules without disrupting operations

Core Advantages

• Allows direct PC connectivity for configuration and real-time monitoring

• Compact and lightweight design simplifies integration into standard control racks

• Industrial-grade construction ensures reliable performance in demanding environments

• Supports scalable system architecture and modular expansion

• Enhances operational efficiency by enabling remote diagnostics and system management

Technical FAQs

1. What is the primary function of this module?
   It connects a PC to the F3 DCS system for monitoring, configuration, and diagnostics.

2. Which systems is it compatible with?
   Designed for Yokogawa F3 series distributed control systems.

3. Can it be used for real-time data acquisition?
   Yes, it allows PCs to monitor process data in real-time.

4. What are the physical dimensions of the module?
   28.9 × 100 × 83.2 mm.

5. What is the weight of the module?
   0.11 kg.

6. Does it affect normal DCS operation?
   No, it provides PC connectivity without interrupting system operation.

7. Is installation straightforward?
   Yes, its compact design allows easy plug-in installation in F3 racks.

8. Can it facilitate troubleshooting and diagnostics?
   Yes, it enables detailed system analysis from a connected PC.

9. Is it suitable for industrial environments?
   Yes, it is built to operate reliably under harsh conditions.

10. Does it support system configuration adjustments?
    Yes, operators can safely modify settings and parameters via the PC interface.
