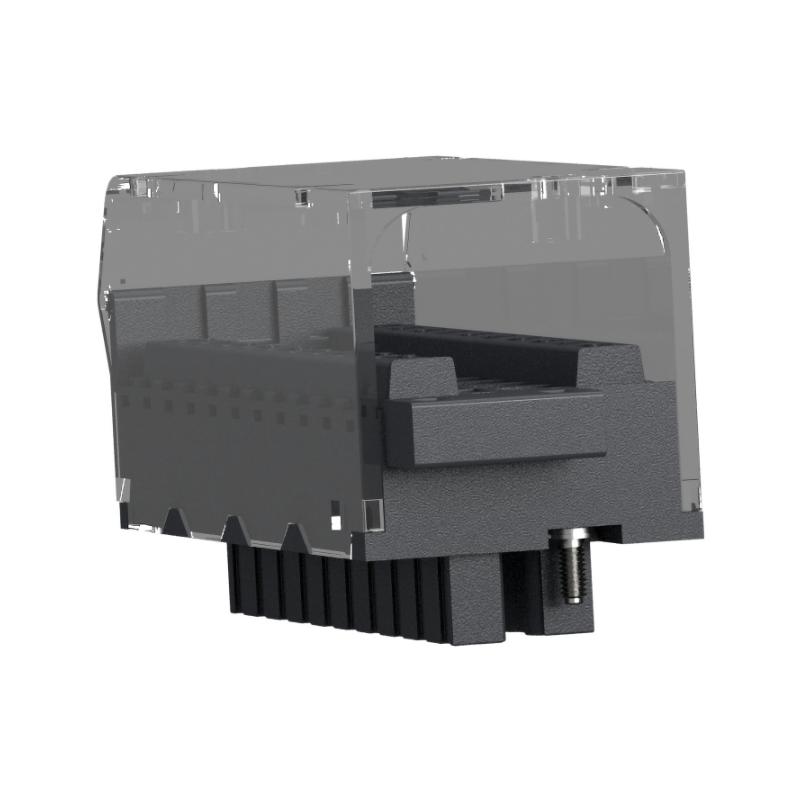

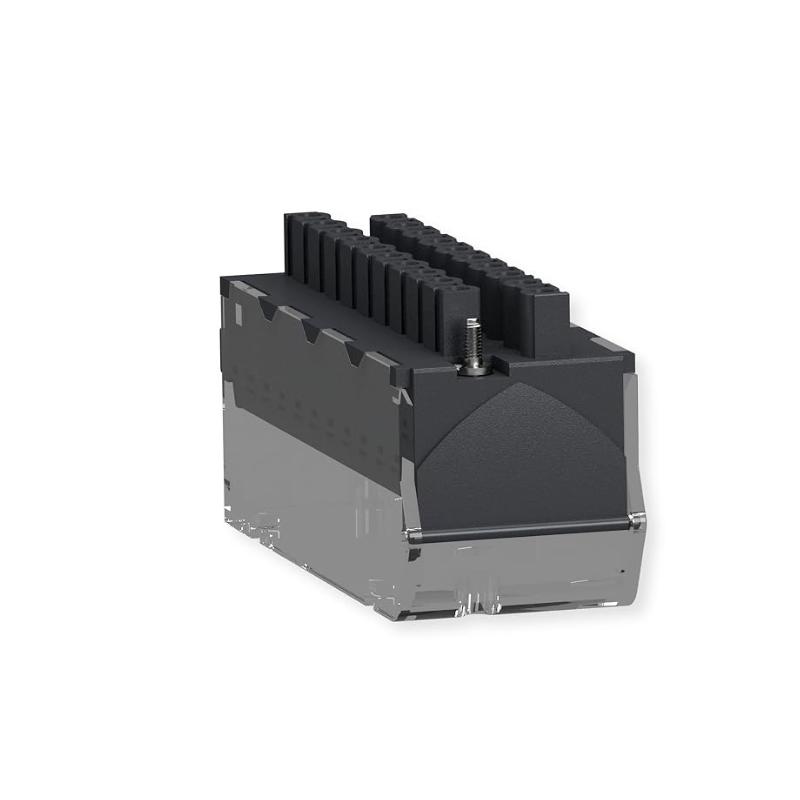

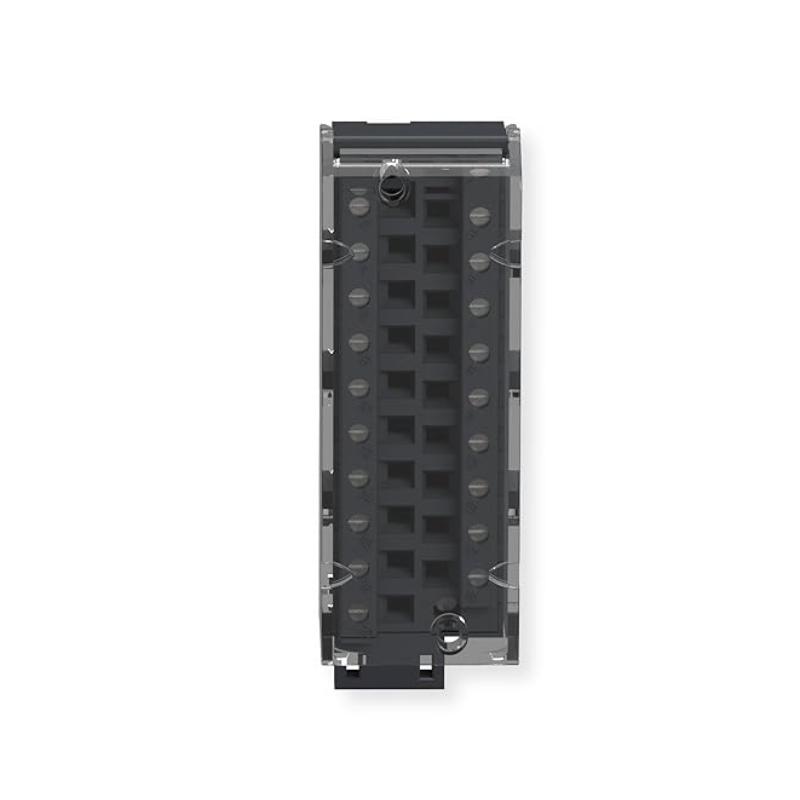

The Schneider BMXFTB2000 is a 2-channel fast digital input module designed for the Modicon M580 PLC. This module is specifically engineered to handle high-speed digital input signals with precise timing and accuracy, making it ideal for applications requiring fast response times and reliable data processing. Whether it's monitoring pulse signals, high-frequency switches, or counter inputs, the BMXFTB2000 ensures seamless integration into motion control systems, positioning systems, measurement systems, and various industrial automation applications.

With its ability to process digital signals at high speeds, the BMXFTB2000 offers enhanced performance for time-sensitive control tasks, such as counting, frequency measurement, and pulse-width modulation (PWM). This makes it suitable for industries like automated manufacturing, robotics, testing equipment, and energy management systems, where precision timing and rapid signal processing are critical.

Technical Specifications

Model: BMXFTB2000
Type: 2-Channel Fast Digital Input Module
PLC Compatibility: Modicon M580
Number of Inputs: 2 fast digital inputs
Input Type:
- Digital (ON/OFF)
- High-Speed
- Voltage Input: 24V DC (Nominal)
Input Signal Type:
- Differential or Single-Ended Signals
- TTL or HTL Logic
Maximum Input Frequency:
- 100 kHz (for each channel)
Mounting Type: DIN rail mountable
Dimensions: 140 mm x 120 mm x 60 mm
Weight: 0.55 kg (1.21 lbs)
Operating Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP20 (dust and accidental contact protection)
Certifications: CE, UL, RoHS compliant

Recommended Related Models

Schneider Electric provides a variety of modules and accessories that complement the BMXFTB2000 for enhanced automation and high-speed control:

Schneider BMXDDI0805: An 8-channel digital input module for integrating additional digital sensors, switches, or on/off devices into your automation system.
Schneider BMXDAI1602: A 16-channel analog input module, ideal for applications requiring temperature sensors, pressure transducers, or other analog feedback.
Schneider BMXCPS2000: A power supply module that ensures stable and reliable power for Modicon M580 PLC systems and connected I/O modules.

These Schneider Electric modules can work together to create a complete, efficient, and highly responsive control system.

Popular Schneider Electric Models

Schneider Modicon M580 – A high-performance, Ethernet-enabled PLC, designed for mission-critical industrial applications requiring cybersecurity, redundancy, and real-time control.
Schneider Modicon M340 – A modular PLC suitable for medium-to-large automation systems, offering flexible communication and I/O options for diverse industrial processes.
Schneider ATV320 – A Variable Frequency Drive (VFD) for motor control in applications such as HVAC, pumps, and conveyors, optimizing energy efficiency and performance.
Schneider ATV630 – A robust VFD for heavy-duty motor control in industrial applications, providing precise motor speed regulation and energy savings.
Schneider EcoStruxure™ Control Expert – A comprehensive PLC programming software for configuring and managing Modicon PLCs in complex automation systems.

These models complement the BMXFTB2000 to provide a complete solution for high-speed control and automation in industrial environments.

Applications

The BMXFTB2000 module is ideal for high-speed digital input applications in industries requiring rapid response times and precision. Common applications include:

Counting and Frequency Measurement: Used in production lines or sorting systems to measure product counts, rotation speeds, and frequency of pulses.
Pulse-Width Modulation (PWM) Signals: Monitors PWM signals for applications like motor speed control, signal generation, and communication systems.
Motion Control Systems: Captures pulse signals from encoders and other motion devices to provide feedback for precise control in robotics, CNC machines, and automated assembly lines.
Testing Equipment: Monitors and processes high-frequency signals from test equipment, ensuring accurate measurement and timing in product testing and calibration systems.
Automated Material Handling: Captures signals from devices like conveyor belts, palletizers, and automated guided vehicles (AGVs) to monitor position, speed, and flow control.
Energy Management: Measures signals from energy meters, power transducers, and other devices to monitor electricity consumption and control power distribution systems.

The BMXFTB2000 ensures real-time data capture for time-sensitive tasks, enabling precise control and monitoring in various automation systems.

Advantages

High-Speed Processing: With a maximum input frequency of 100 kHz per channel, the BMXFTB2000 provides fast response times, ideal for real-time control systems in industries like robotics and motion control.
Versatile Input Options: The module supports both differential and single-ended inputs, with compatibility for TTL or HTL logic, ensuring broad compatibility with various sensors and devices.
Compact Design: Despite offering 2 high-speed input channels, the module has a compact form factor, reducing space requirements and simplifying installation in control panels.
Easy Integration: The module is designed for seamless integration with the Modicon M580 PLC, enabling fast setup and efficient configuration in industrial automation systems.
Reliable Protection: With an IP20 protection rating, the BMXFTB2000 offers protection against dust and accidental contact with live parts, ensuring long-term durability in industrial environments.
Certified Compliance: The module is CE, UL, and RoHS certified, meeting international standards for safety, quality, and environmental compliance.
Wide Operating Temperature Range: It operates efficiently within a temperature range of 0°C to 60°C (32°F to 140°F), suitable for most industrial environments.

Technical FAQs

How many fast digital input channels does the BMXFTB2000 have?
The BMXFTB2000 features 2 fast digital input channels, making it ideal for applications requiring real-time signal processing.
What is the maximum input frequency supported by the BMXFTB2000?
The module supports input frequencies of up to 100 kHz per channel, enabling high-speed applications such as pulse counting and frequency measurement.
What types of signals can the BMXFTB2000 handle?
The module is capable of handling digital (ON/OFF) signals and supports both differential and single-ended inputs, with TTL or HTL logic compatibility.
What is the weight of the BMXFTB2000 module?
The BMXFTB2000 weighs approximately 0.55 kg (1.21 lbs), making it easy to install and handle.
What is the protection rating of the BMXFTB2000?
The module has an IP20 protection rating, offering protection against dust and accidental contact with live electrical parts.
Can the BMXFTB2000 handle high-frequency signals?
Yes, the module is designed to process high-frequency signals up to 100 kHz, making it ideal for fast-paced control systems like motion control and pulse counting.
What is the operating temperature range for the BMXFTB2000?
The module operates in a temperature range of 0°C to 60°C (32°F to 140°F), making it suitable for most industrial environments.
Can the BMXFTB2000 be used for pulse-width modulation (PWM) signals?
Yes, the module is ideal for capturing PWM signals used in motor control, signal generation, and other applications requiring fast signal processing.
How is the BMXFTB2000 mounted?
The BMXFTB2000 is DIN rail mountable, making it easy to install in control panels and other industrial systems.
What certifications does the BMXFTB2000 have?
The BMXFTB2000 is CE, UL, and RoHS certified, ensuring compliance with international safety and environmental standards.
