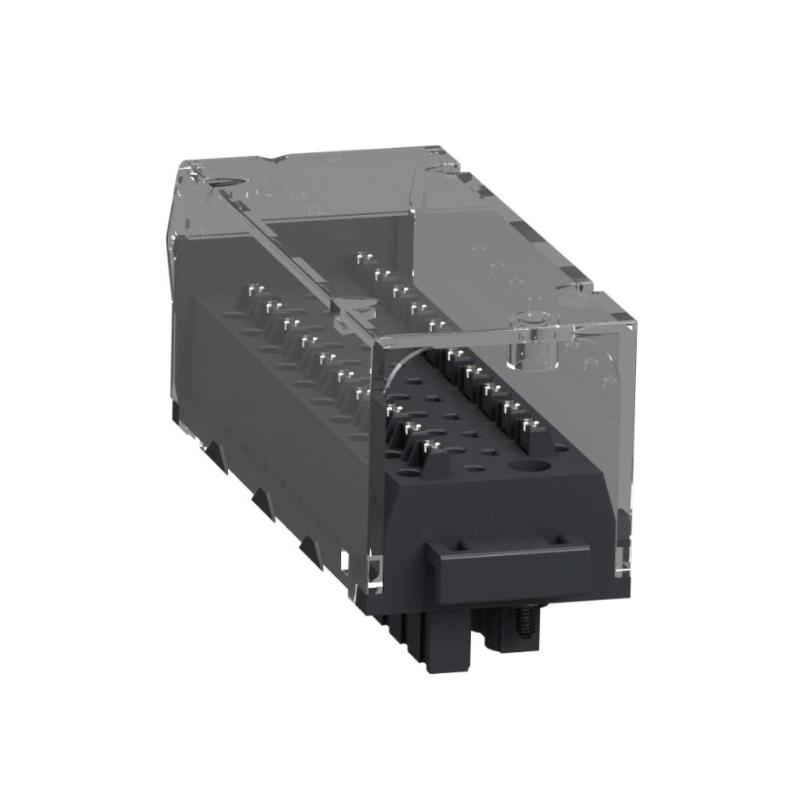

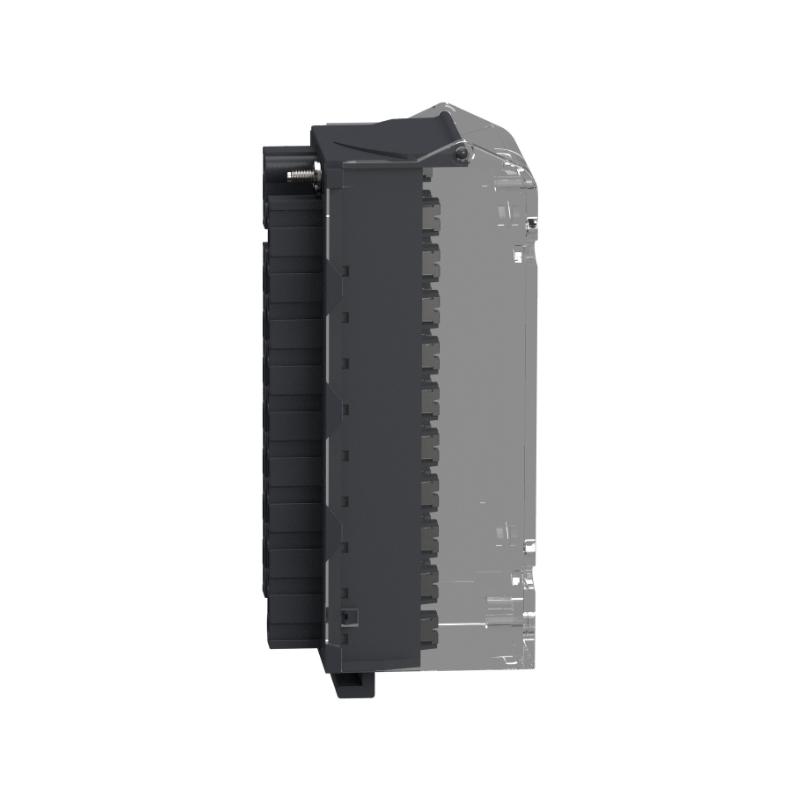

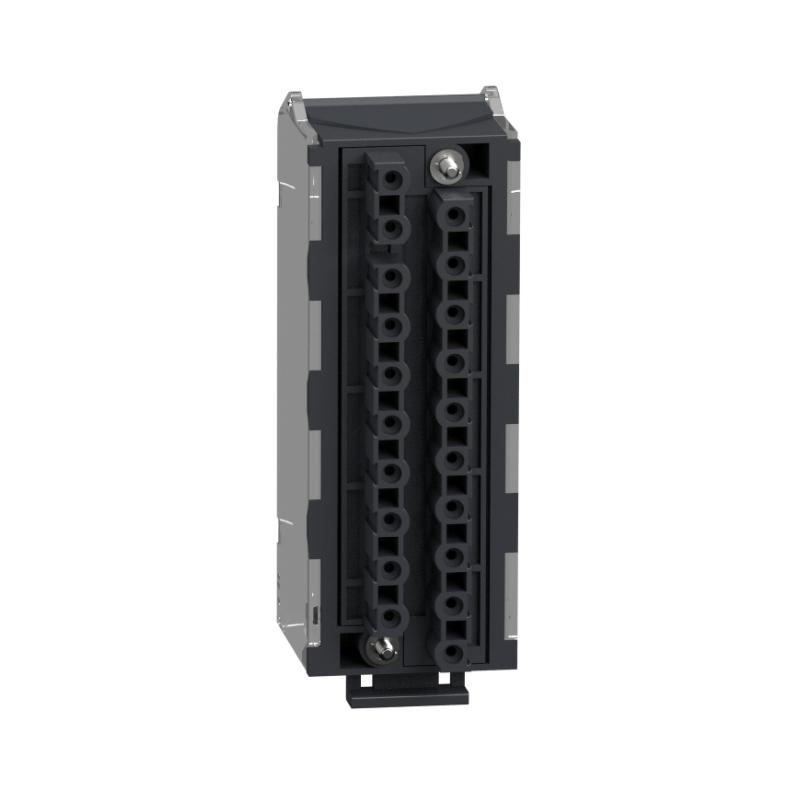

Schneider BMXFTB2020-1 Schneider BMXFTB2020-2 Schneider BMXFTB2020-3 Schneider BMXFTB2020-4

The Schneider BMXFTB2020 is a 20-channel fast digital input module designed for integration with the Modicon M580 PLC. This module provides high-speed digital input processing, making it ideal for applications where real-time signal acquisition and fast response times are essential. With its ability to process pulse signals, frequency measurements, and high-speed switches, the BMXFTB2020 is well-suited for industries that require rapid and precise data processing, such as automated manufacturing, motion control systems, and high-frequency data collection.

With 20 channels for fast digital inputs, the BMXFTB2020 is designed for systems that need to monitor a large number of digital sensors or devices simultaneously. It ensures that digital signals are accurately captured and processed, making it an excellent solution for industrial automation, robotics, and energy management applications.

Technical Specifications

Model: BMXFTB2020
Type: 20-Channel Fast Digital Input Module
PLC Compatibility: Modicon M580
Number of Inputs: 20 fast digital inputs
Input Type:
- Digital (ON/OFF)
- High-Speed
- Voltage Input: 24V DC (Nominal)
Input Signal Type:
- Differential or Single-Ended Signals
- TTL or HTL Logic
Maximum Input Frequency:
- 100 kHz (per channel)
Mounting Type: DIN rail mountable
Dimensions: 140 mm x 120 mm x 60 mm
Weight: 0.55 kg (1.21 lbs)
Operating Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP20 (dust and accidental contact protection)
Certifications: CE, UL, RoHS compliant

Recommended Related Models

To extend the capabilities of the BMXFTB2020, Schneider Electric offers a variety of compatible modules and accessories:

Schneider BMXDDI0805: An 8-channel digital input module designed for adding additional sensors or switches to your system, expanding I/O capabilities.
Schneider BMXDAI1602: A 16-channel analog input module, ideal for connecting temperature sensors, pressure sensors, and other analog devices.
Schneider BMXCPS2000: A power supply module to provide stable, reliable power to the Modicon M580 PLC and connected I/O modules.

These related models allow for customized, scalable solutions for complex automation and high-speed digital control systems.

Popular Schneider Electric Models

Schneider Modicon M580 – A high-performance, Ethernet-enabled PLC, designed for cybersecurity, redundancy, and optimized control in critical industrial applications.
Schneider Modicon M340 – A modular PLC ideal for medium-to-large automation systems, offering flexible communication and extensive I/O options for varied industrial processes.
Schneider ATV320 – A Variable Frequency Drive (VFD) that offers motor control for applications such as HVAC, pumps, and conveyors, enhancing energy efficiency and performance.
Schneider ATV630 – A high-power VFD for large industrial motor control applications, optimizing performance and energy savings in demanding processes.
Schneider EcoStruxure™ Control Expert – A powerful PLC programming software for configuring and managing Modicon PLCs, integrating seamlessly with the BMXFTB2020 module.

These models, when combined with the BMXFTB2020, offer comprehensive solutions for high-speed automation, digital input processing, and system control.

Applications

The BMXFTB2020 is suited for various industrial applications requiring high-speed and accurate digital input processing. Typical use cases include:

High-Speed Counting: The module can accurately count fast-moving items on production lines, such as bottles, products, or packages, ensuring accurate inventory tracking and production monitoring.
Frequency Measurement: It measures signal frequencies from devices like tachometers or rotary encoders, providing feedback for motor speed control or vibration analysis in machinery.
Pulse Width Modulation (PWM): The BMXFTB2020 captures PWM signals used for controlling motor speeds, valve positions, and signal generation in motion control systems.
Motion Control: This module is ideal for robotics, CNC machines, and other motion systems that require precise feedback on position and speed based on pulse signals from encoders and sensors.
Automated Material Handling: Monitors signals from conveyors, sorting systems, and automated guided vehicles (AGVs) to control movement, speed, and positioning of goods in industrial warehouses and factories.
Energy Metering: Captures digital signals from energy meters and power transducers to monitor and optimize energy consumption in industrial and commercial facilities.

The BMXFTB2020 ensures high-speed, real-time monitoring, improving efficiency, accuracy, and control in these critical applications.

Advantages

High-Speed Data Processing: With an input frequency of up to 100 kHz per channel, the BMXFTB2020 ensures fast and accurate signal processing for real-time control applications.
Large Channel Count: Featuring 20 input channels, this module is perfect for systems that need to monitor multiple sensors or devices simultaneously, increasing the scalability and flexibility of the automation system.
Versatile Input Configurations: The module supports both differential and single-ended inputs and is compatible with TTL and HTL logic, offering flexibility in signal acquisition.
Compact and Efficient Design: Despite supporting 20 input channels, the module maintains a compact design, saving valuable space in control panels and simplifying system wiring.
Easy Integration: Seamlessly integrates with the Modicon M580 PLC, providing fast configuration and efficient system integration for high-speed control applications.
Certified Compliance: The BMXFTB2020 is CE, UL, and RoHS certified, ensuring that it meets international standards for safety, quality, and environmental compliance.
Wide Operating Temperature Range: The module operates within 0°C to 60°C (32°F to 140°F), making it suitable for various industrial environments.
Reliable Protection: The IP20 protection rating ensures that the module is protected against dust and accidental contact with live parts, ensuring durability in industrial applications.

Technical FAQs

How many fast digital input channels does the BMXFTB2020 have?
The BMXFTB2020 offers 20 fast digital input channels, making it suitable for systems that require high-speed signal monitoring from multiple devices.
What is the maximum input frequency for the BMXFTB2020?
The module supports input frequencies of up to 100 kHz per channel, ideal for high-speed control and monitoring.
What types of signals can the BMXFTB2020 handle?
The module can handle differential and single-ended inputs with TTL and HTL logic compatibility, offering flexibility in signal acquisition.
What is the weight of the BMXFTB2020 module?
The BMXFTB2020 weighs approximately 0.55 kg (1.21 lbs), making it easy to install and integrate into control systems.
What is the protection rating of the BMXFTB2020?
The BMXFTB2020 has an IP20 protection rating, providing protection against dust and accidental contact with live parts.
Can the BMXFTB2020 be used for pulse counting applications?
Yes, it is ideal for pulse counting applications in production lines, sorting systems, and inventory management.
What is the operating temperature range for the BMXFTB2020?
The module operates within the temperature range of 0°C to 60°C (32°F to 140°F), suitable for most industrial environments.
How is the BMXFTB2020 mounted?
The BMXFTB2020 is DIN rail mountable, making it easy to install and configure in industrial control panels.
Can the BMXFTB2020 handle PWM signals?
Yes, it can process PWM signals, making it ideal for applications such as motor control and signal modulation.
What certifications does the BMXFTB2020 have?
The BMXFTB2020 is CE, UL, and RoHS certified, meeting international safety and environmental standards.
