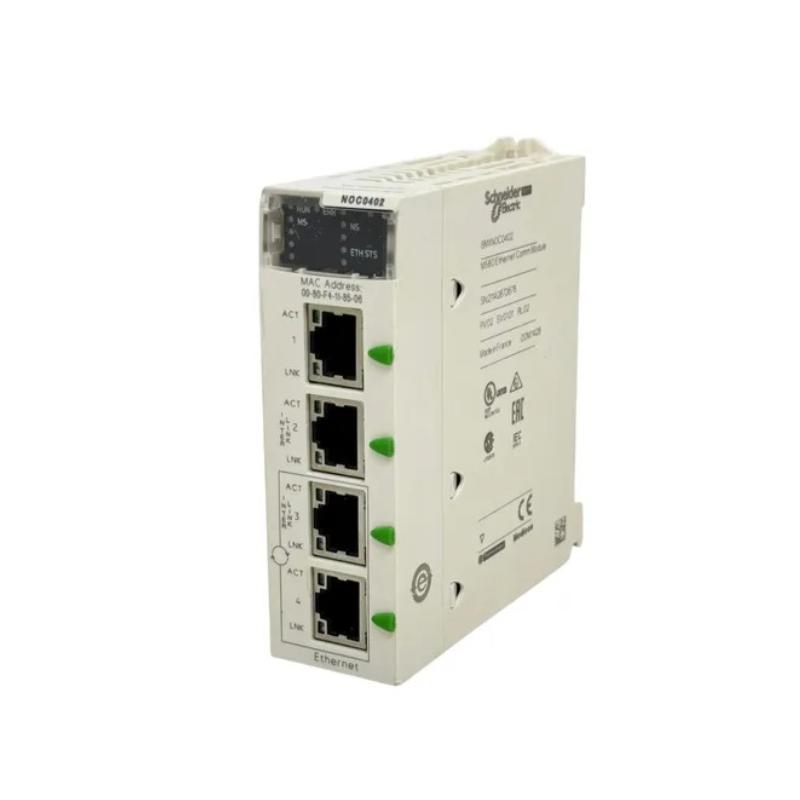

The Schneider BMXNOC0402 is a 4-port Ethernet communication module designed for the Modicon M580 PLC. This module enhances the communication capabilities of the Modicon M580 system by providing four Ethernet ports for Ethernet-based networking, enabling high-speed data exchange, seamless integration with other devices, and improved overall system performance. The BMXNOC0402 supports standard Ethernet protocols, allowing for easy connection to SCADA systems, HMI panels, remote I/O devices, and other PLC networks.

The BMXNOC0402 is ideal for applications where reliable, high-speed communication between various components of an automation system is essential. Whether used in distributed control systems, data acquisition, or remote monitoring, this communication module provides flexible networking options to support complex industrial environments and ensure continuous, real-time communication.

Technical Specifications

Model: BMXNOC0402
Type: 4-Port Ethernet Communication Module
PLC Compatibility: Modicon M580
Number of Ports: 4 Ethernet ports
Communication Protocols:
- Ethernet/IP
- Modbus TCP
- HTTP
- SNMP
- SMTP
Network Speed: 10/100 Mbps
Mounting Type: DIN Rail Mountable
Dimensions: 72 mm x 90 mm x 63 mm
Weight: 0.25 kg (0.55 lbs)
Operating Temperature Range:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP20 (Dust and accidental contact protection)
Certifications: CE, UL, RoHS compliant
LED Indicators: Diagnostic LEDs for port status and communication diagnostics

Recommended Related Models

To expand the networking capabilities and enhance the communication options of your Modicon M580 system, Schneider Electric offers a range of compatible modules and accessories:

Schneider BMXDRA1605: A digital input/output module designed to interface with sensors and devices for real-time control, ensuring seamless communication with the Modicon M580 PLC.
Schneider BMXDAI1602: A 16-channel analog input module that provides direct communication with analog sensors, allowing for real-time data processing and feedback.
Schneider BMXCPS2000: A power supply module that delivers stable and reliable power to the Modicon M580 PLC, ensuring uninterrupted operation for all connected components.

These models can be paired with the BMXNOC0402 to create a more robust and scalable industrial control system that ensures high-level communication across a wide range of devices and networks.

Popular Schneider Electric Models

Schneider Modicon M580 – A high-performance, Ethernet-enabled PLC providing cybersecurity, redundancy, and optimized control for critical applications across industries.
Schneider Modicon M340 – A modular PLC designed for medium-to-large-scale automation, offering flexible communication and scalability for various industrial applications.
Schneider ATV320 – A Variable Frequency Drive (VFD) used for motor control in applications like HVAC, pumps, and conveyors, ensuring energy efficiency and reliable performance.
Schneider ATV630 – A high-power VFD used in demanding industrial applications to optimize motor control, improve efficiency, and reduce energy consumption.
Schneider EcoStruxure™ Control Expert – A PLC programming software that simplifies the configuration and management of Modicon PLCs, providing seamless integration with the BMXNOC0402 for networking and control.

These Schneider models, when used in conjunction with the BMXNOC0402, ensure enhanced system performance, flexibility, and reliability in industrial automation and control systems.

Applications

The BMXNOC0402 is designed for applications where multiple Ethernet connections are needed to connect the Modicon M580 PLC to various devices within an industrial environment. Common use cases include:

Distributed Control Systems (DCS): The module connects the Modicon M580 to other PLCs, HMI systems, and field devices in a distributed control architecture, enabling real-time data exchange and system-wide synchronization.
Remote Monitoring and Control: Allows for remote monitoring and control of industrial processes via Ethernet networks, enabling operators to access real-time system data and make adjustments from remote locations.
Data Acquisition Systems: Integrates the Modicon M580 PLC into data acquisition systems that rely on Ethernet communication for transferring large volumes of data between sensors, actuators, and centralized systems.
Factory Automation: Facilitates communication between automated machines, robotic systems, and other industrial equipment, ensuring efficient production and real-time feedback for monitoring performance and troubleshooting.
Building Management Systems (BMS): The BMXNOC0402 supports connectivity for HVAC systems, lighting controls, and security systems, providing centralized management of building operations via Ethernet networks.

The module’s ability to support multiple Ethernet connections makes it suitable for applications that require robust network communications and high-speed data exchange across complex industrial systems.

Advantages

Multiple Ethernet Ports: The 4 Ethernet ports on the BMXNOC0402 allow for flexible networking options, enabling connections to multiple devices or network segments simultaneously, improving overall system scalability and communication efficiency.
High-Speed Communication: The module supports 10/100 Mbps network speed, providing fast and reliable data transfer for high-performance automation systems.
Compatibility with Standard Protocols: Supports Ethernet/IP, Modbus TCP, and other industry-standard communication protocols, ensuring seamless integration with existing equipment and systems.
Easy Integration: The BMXNOC0402 integrates smoothly into Modicon M580 PLC systems, reducing installation complexity and setup time for Ethernet-based communications.
Space-Saving Design: The compact design of the BMXNOC0402 makes it easy to mount on DIN rails, optimizing space usage in control panels and industrial cabinets.
Wide Temperature Range: The module operates effectively in environments with temperatures ranging from 0°C to 60°C (32°F to 140°F), making it suitable for diverse industrial conditions.
Robust Protection: With an IP20 protection rating, the module is shielded against dust and accidental contact, ensuring durability and reliability in industrial environments.
LED Diagnostic Indicators: The module features LED indicators for real-time diagnostics and status monitoring, allowing for quick identification of connection and communication issues.

Technical FAQs

How many Ethernet ports does the BMXNOC0402 provide?
The BMXNOC0402 has 4 Ethernet ports, allowing for flexible connections to multiple devices or networks.
What communication protocols are supported by the BMXNOC0402?
The module supports Ethernet/IP, Modbus TCP, HTTP, SNMP, and SMTP protocols, enabling easy integration with various industrial devices and systems.
What is the maximum network speed supported by the BMXNOC0402?
The module supports a network speed of 10/100 Mbps, ensuring fast data transfer for reliable communication.
What is the weight of the BMXNOC0402?
The BMXNOC0402 weighs approximately 0.25 kg (0.55 lbs), making it lightweight and easy to install.
What is the protection rating of the BMXNOC0402?
The module has an IP20 protection rating, offering protection against dust and accidental contact with live parts.
Can the BMXNOC0402 be used in remote monitoring applications?
Yes, the module is ideal for remote monitoring and control systems, allowing for real-time data exchange over Ethernet networks.
How is the BMXNOC0402 mounted?
The BMXNOC0402 is DIN rail mountable, simplifying installation and saving space in industrial control cabinets.
What is the operating temperature range for the BMXNOC0402?
The module operates in a temperature range of 0°C to 60°C (32°F to 140°F), making it suitable for most industrial environments.
Does the BMXNOC0402 support Modbus TCP?
Yes, the BMXNOC0402 supports Modbus TCP, allowing it to communicate with a wide range of Modbus-compatible devices over Ethernet.
What certifications does the BMXNOC0402 have?
The module is CE, UL, and RoHS certified, ensuring it meets international standards for safety, quality, and environmental protection.
