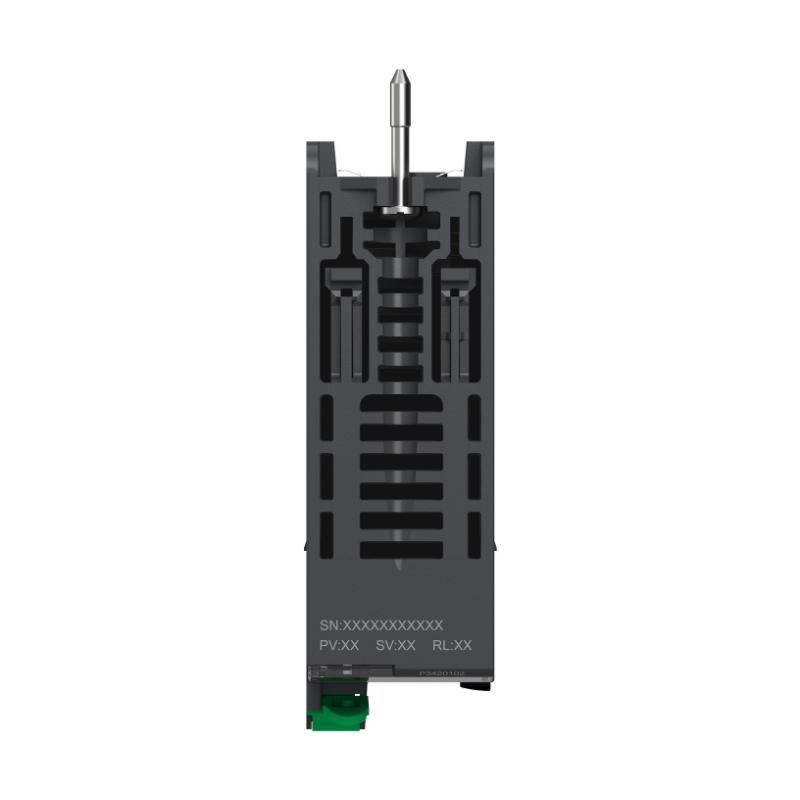

The Schneider BMXP3420102 Modicon X80 32 Digital Input/Output Module with enhanced relay control is a high-performance solution designed to streamline industrial automation processes. Part of Schneider Electric’s renowned Modicon X80 series, this module provides 32 digital I/O points, integrated relay outputs, and exceptional reliability in compact form. With its versatile relay control capabilities, the BMXP3420102 is ideal for industries that require high-density I/O solutions, robust performance, and ease of integration into existing automation systems.

The module is engineered for a wide range of applications, from controlling digital devices to managing relay-based equipment. Its ability to seamlessly interface with other Modicon X80 components ensures that it can be integrated effortlessly into larger control networks, making it a perfect choice for industries such as automotive, energy, water treatment, and manufacturing.

Technical Specifications

Specification	Details
Model	Schneider BMXP3420102 Modicon X80 I/O Module with Relay
Series	Modicon X80
I/O Type	32 Digital Inputs/Outputs with Enhanced Relay Outputs
Input Voltage	24V DC
Output Voltage	24V DC
Relay Output Rating	2A per Relay Channel
Dimensions	4.5 x 7.3 x 10.8 inches (114 x 186 x 274 mm)
Weight	0.85 lbs (0.39 kg)
Power Consumption	1.5W
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Mounting	DIN Rail Mountable
Communication Protocol	Modbus TCP/IP, EtherNet/IP

Recommended Related Models

Schneider BMXDRA0800 – Modicon X80 Power Supply Module
Schneider BMXNOE0100 – Modicon X80 Communication Module for EtherNet/IP
Schneider BMXP341000 – Modicon X80 16 Digital I/O Module

Popular Schneider Models

Modicon M580 – Advanced Ethernet-enabled PLC with Integrated I/O and Ethernet Capability
Modicon TM3 – Compact I/O Modules for Modular PLC Systems
Modicon BMXRTB0100 – Modicon X80 Relay Output Module

Applications

The Schneider BMXP3420102 Modicon X80 I/O Module is suited for a broad range of industrial automation applications:

Automotive Manufacturing: Control of robotic arms, conveyors, and assembly lines where relay control is critical.
Energy Management: Integrates into power distribution systems for controlling relays that manage switches, circuit breakers, and protection devices.
Water Treatment: Automates the operation of pumps, valves, and sensors to maintain optimal water flow and quality.
Building Automation: Controls HVAC systems, lighting, and other critical building infrastructure via relay outputs.

Advantages

High-Density I/O Capability: The BMXP3420102 features 32 I/O points, offering a dense solution for applications requiring a high number of digital inputs and outputs in a compact package.
Enhanced Relay Control: This module provides relay outputs rated at 2A per channel, perfect for controlling a wide variety of devices, including motors, lights, and solenoids.
Advanced Communication: The module supports both Modbus TCP/IP and EtherNet/IP communication protocols, ensuring seamless integration into existing industrial networks.
Easy Integration: Designed to integrate easily with other Modicon X80 components, simplifying system setup and reducing engineering time.
Compact Design: Despite its high functionality, the BMXP3420102’s small footprint makes it ideal for space-constrained installations in control panels.
Energy-Efficient: With a power consumption of just 1.5W, this module delivers exceptional performance while keeping operational costs low.

Technical FAQs

What is the main purpose of the Schneider BMXP3420102?
The BMXP3420102 is a digital I/O module with relay control capabilities, designed to manage 32 I/O points and control devices through relay outputs in industrial automation systems.
How many relay outputs does the BMXP3420102 have?
The module provides relay outputs, each rated for 2A per channel, ideal for controlling a variety of industrial devices like motors, solenoids, and lights.
Which communication protocols are supported by this module?
The BMXP3420102 supports Modbus TCP/IP and EtherNet/IP, ensuring compatibility with modern industrial networks.
What is the voltage requirement for the BMXP3420102?
This module operates with 24V DC for both inputs and outputs, a standard voltage for many industrial applications.
What is the operating temperature range for the BMXP3420102?
The module operates effectively within a temperature range of -20°C to 60°C (-4°F to 140°F), making it suitable for most industrial environments.
Can the BMXP3420102 be used with Schneider's Modicon M580 PLC?
Yes, it integrates seamlessly with Modicon M580 PLCs as well as other Modicon controllers, providing flexible integration options.
What mounting method is used for the BMXP3420102?
The module can be easily mounted on a DIN rail, which simplifies installation and panel organization.
What is the power consumption of the BMXP3420102?
The BMXP3420102 consumes only 1.5W, making it an energy-efficient choice for your automation system.
Is the BMXP3420102 suitable for use in hazardous environments?
While the BMXP3420102 is designed for general industrial use, specific certifications for hazardous environments should be confirmed based on your application needs.
What industries benefit most from this module?
The BMXP3420102 is ideal for automotive manufacturing, energy management, water treatment, and building automation, providing high-density I/O control and reliable relay functionality.
