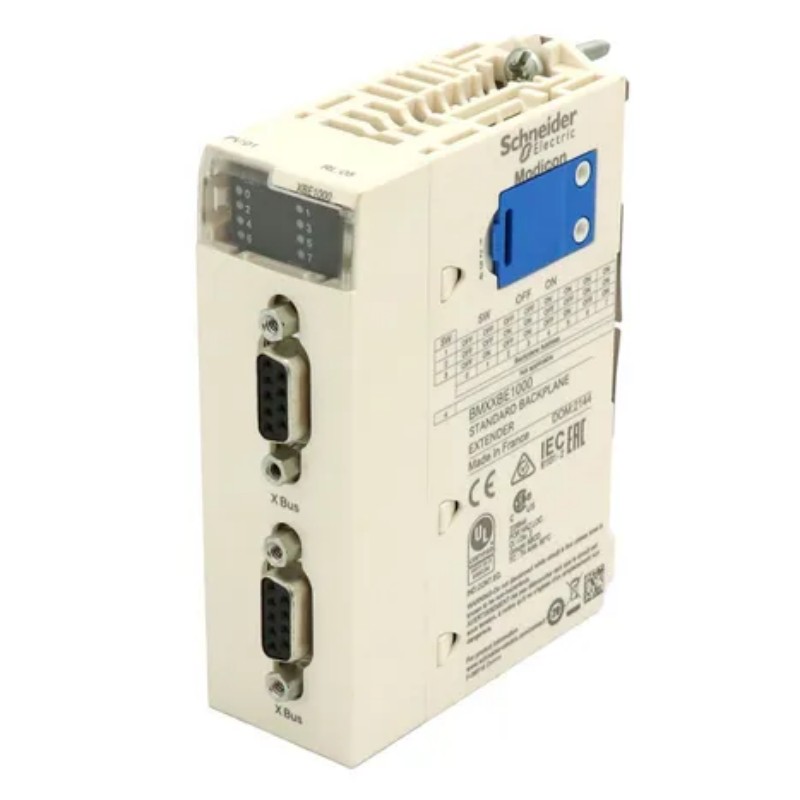

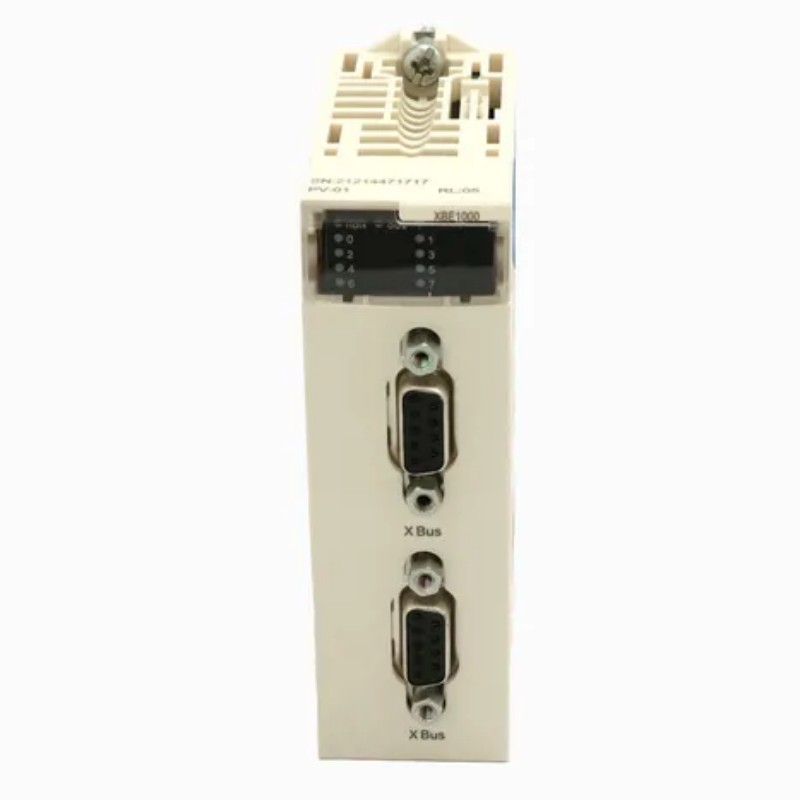

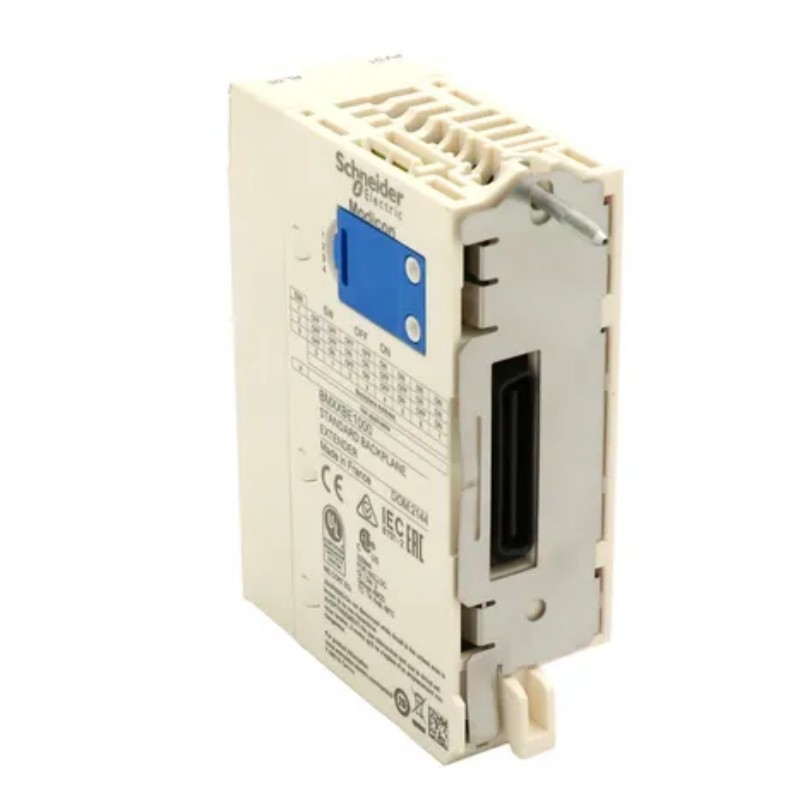

Schneider BMXXBE1000 Modicon X80 Power Supply Module with Advanced Features for Industrial Automation Systems

Applications

The Schneider BMXXBE1000 Modicon X80 Power Supply Module is an essential component for various industrial automation applications:

• Industrial Automation: Provides stable power for PLCs, digital I/O modules, and communication modules in manufacturing systems, robotics, and process automation.

• Energy Management: Powers energy distribution control systems, renewable energy monitoring systems, and power metering equipment.

• Water Treatment: Ensures reliable operation of water and wastewater treatment systems by supplying consistent power to control systems, pumps, and valves.

• Building Automation: Powers smart building systems, including HVAC controls, lighting, and security systems, providing efficient and uninterrupted power for critical applications.

Advantages

• Reliable Power Supply: The BMXXBE1000 offers stable 24V DC output with 5A current, ensuring continuous operation of connected automation systems with minimal downtime.

• High Efficiency: The power supply module is designed for energy efficiency, minimizing energy loss and contributing to lower operational costs.

• Wide Input Range: With an input range of 100-240V AC, the BMXXBE1000 can be used in various regions and industries, supporting global power standards.

• Compact and Durable: The module’s compact design makes it ideal for applications where space is limited, while its rugged build ensures it performs reliably in harsh industrial environments.

• Easy Integration: Compatible with Schneider Electric’s Modicon X80 series, it seamlessly integrates with I/O modules, communication modules, and PLC systems, streamlining system design and setup.

Technical FAQs

1. What is the main function of the Schneider BMXXBE1000?
   The BMXXBE1000 is a power supply module designed to deliver reliable 24V DC power to Schneider Electric’s Modicon X80 I/O modules and control systems, ensuring smooth operation in industrial automation systems.

2. What is the input voltage range for the BMXXBE1000?
   The BMXXBE1000 accepts an input voltage range of 100-240V AC, making it suitable for use in a variety of global electrical standards.

3. What is the power output of the BMXXBE1000?
   The BMXXBE1000 provides a 24V DC output with a 5A current to power connected devices and modules.

4. What is the power consumption of the BMXXBE1000?
   The module has a power consumption of 100W, ensuring that the connected devices receive adequate power for reliable operation.

5. What is the operating temperature range for the BMXXBE1000?
   The BMXXBE1000 can operate within a temperature range of -20°C to 60°C (-4°F to 140°F), making it suitable for use in most industrial environments.

6. How is the BMXXBE1000 mounted?
   The BMXXBE1000 is designed for DIN rail mounting, which ensures easy installation and integration into control panels.

7. Can the BMXXBE1000 be used with other Schneider Electric control systems?
   Yes, the BMXXBE1000 is fully compatible with Schneider Electric’s Modicon X80 series, as well as other Modicon PLC systems and modules.

8. Is the BMXXBE1000 suitable for hazardous environments?
   The BMXXBE1000 is designed for industrial environments, but it’s important to verify if additional certifications are required for use in hazardous locations.

9. What certifications does the BMXXBE1000 have?
   The BMXXBE1000 is UL Listed and CE Certified, ensuring compliance with international safety and quality standards.

10. Which industries benefit most from the BMXXBE1000?
    The BMXXBE1000 is ideal for industries such as automotive manufacturing, energy management, water treatment, and building automation, where reliable power supply is critical for system performance.
