Introduction

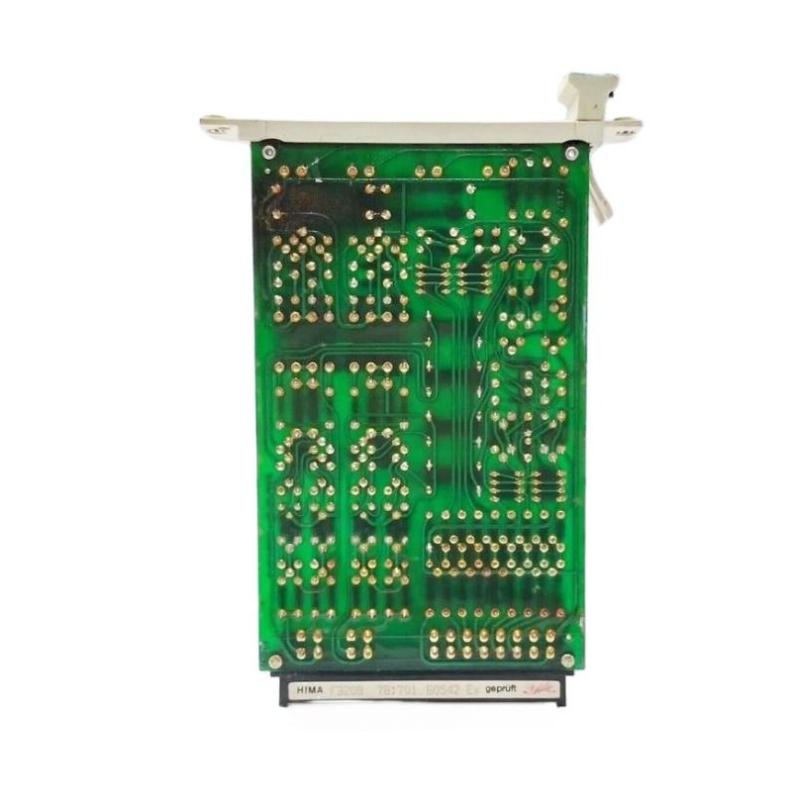

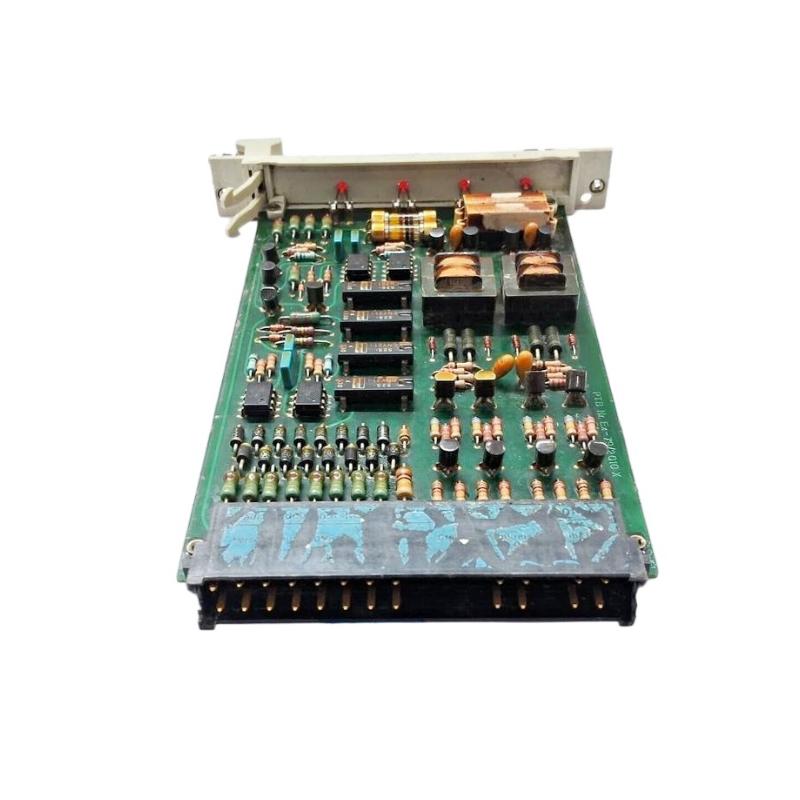

The Hima F 3209 4-channel Relay Module delivers precise switching and outstanding reliability in demanding industrial environments. Its compact profile allows seamless integration into control cabinets, while robust relay contacts ensure long-term operational stability. Designed for professionals who demand both efficiency and safety, the F 3209 guarantees dependable performance for critical applications.

Technical Specifications

Specification	Details
Channels	4
Relay Type	Electromechanical
Switching Voltage	250 V AC / 30 V DC
Operating Temperature	-25°C to +70°C
Response Time	<10 ms
Power Consumption	1.2 W per channel
Mounting	DIN rail
Dimensions	130 x 25 x 120 mm
Weight	0.34 kg

Recommended Related Models

Hima F 3210 8-channel Relay Module
Hima F 3105 Safety Logic Controller
Hima F 3220 Redundant Relay Module
Hima F 3305 Safety CPU Module

Popular Related Models

Hima F 3208 2-channel Relay Module
Hima F 3301 Redundant Safety Module
Hima F 3230 4-channel Monitoring Module
Hima F 3110 Logic Expansion Module

Applications

Industrial process automation systems
Safety instrumentation and control panels
Power generation facilities and monitoring systems
Chemical and pharmaceutical plant automation
Automated manufacturing and assembly lines

Advantages

Space-saving compact design for control cabinets
Rapid switching with high precision
Durable relay contacts for long operational life
Simple integration with Hima safety and automation systems
Low power consumption without compromising reliability

Technical FAQs

Q: What is the maximum switching voltage?
A: 250 V AC / 30 V DC
Q: How many independent channels does the module have?
A: Four channels
Q: Is the module suitable for SIL-rated safety systems?
A: Yes, compatible with SIL 2 and SIL 3 applications
Q: What is the typical lifespan of the relay contacts?
A: Up to 10 million switching cycles under normal load
Q: Can it operate in extreme temperatures?
A: Yes, rated for -25°C to +70°C
Q: What is the response time of the module?
A: Less than 10 ms per channel
Q: Does it support standard mounting options?
A: Yes, DIN rail mounting is fully supported
Q: What type of relay contacts are used?
A: Silver alloy contacts for enhanced corrosion resistance
Q: Are status indicators included?
A: Yes, per-channel LED status indicators
Q: Which certifications does it hold?
A: CE, UL, and Hima internal quality approvals
