Introduction

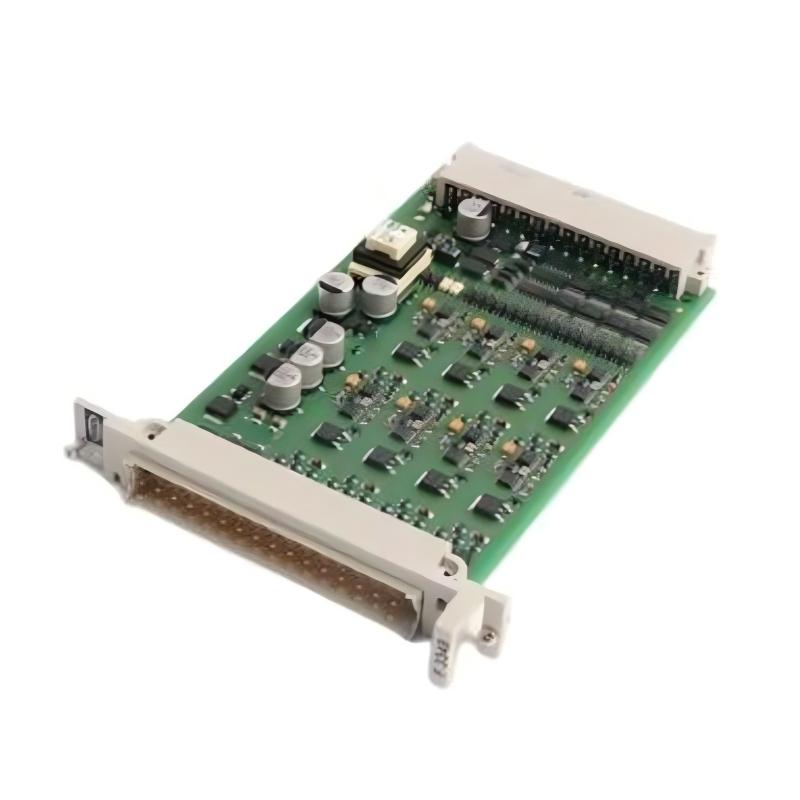

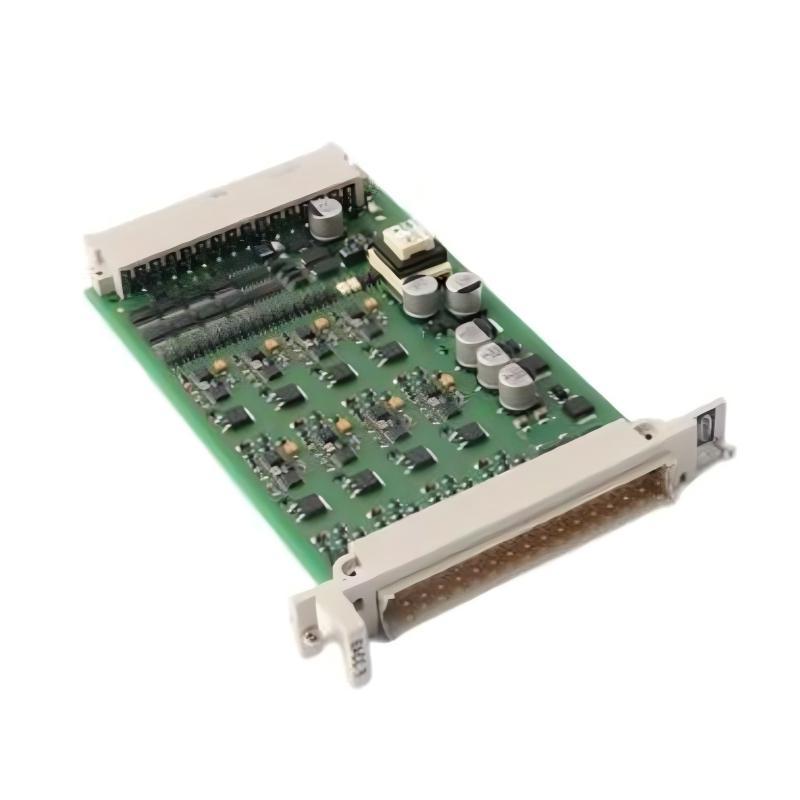

The Hima F 3349 Digital Output Module brings precision and reliability to industrial automation. Despite its slim design, it provides 16 robust digital outputs capable of controlling critical field devices. Compact enough for space-constrained panels, it ensures rapid signal transmission with built-in safety and LED indicators for instant diagnostics. Perfect for chemical, power, or manufacturing plants, the F 3349 enhances operational efficiency while guaranteeing the reliability of Hima’s SIL-rated safety systems.

Technical Specifications

Specification	Details
Channels	16 Digital Outputs
Output Type	Digital / On-Off
Operating Voltage	24 V DC
Switching Current	Up to 0.5 A per channel
Operating Temperature	-25°C to +70°C
Response Time	<10 ms
Mounting	DIN rail
Dimensions	20 x 190 x 128 mm
Weight	0.16 kg

Recommended Related Models

Hima F 3348 Digital Output Module
Hima F 3305 Safety CPU Module
Hima F 3105 Safety Logic Controller
Hima F 3225 16X Digital Input Module

Popular Related Models

Hima F 3334 Numeric Input Module
Hima F 3221 Numeric Input Module
Hima F 3230 4-channel Monitoring Module
Hima F 3209 4-channel Relay Module

Applications

Controlling actuators, relays, and field devices in industrial systems
Integration with Hima safety and automation systems
Triggering alarms, indicators, and process control signals
Redundant output systems for critical safety operations
Automation panels in chemical, power, and manufacturing industries

Advantages

Ultra-compact form factor for tight panel spaces
Reliable and fast switching for critical output signals
Fully compatible with Hima SIL-rated safety controllers
Low power consumption with robust electrical isolation
LED indicators for real-time status monitoring of each channel

Technical FAQs

Q: How many digital output channels does it support?
A: 16 independent digital output channels
Q: What is the nominal operating voltage?
A: 24 V DC
Q: Is it suitable for SIL-rated safety applications?
A: Yes, compatible with SIL 2 and SIL 3 systems
Q: What is the maximum switching current per channel?
A: Up to 0.5 A per channel
Q: What is the operating temperature range?
A: -25°C to +70°C
Q: How is the module mounted?
A: Standard DIN rail mounting supported
Q: Are there diagnostic LEDs?
A: Yes, each channel has an LED for status monitoring
Q: Can it be used in redundant output configurations?
A: Yes, fully compatible with redundant Hima systems
Q: How fast is the response time?
A: Typically <10 ms
Q: What certifications does the module hold?
A: CE, UL, and Hima internal quality approvals
