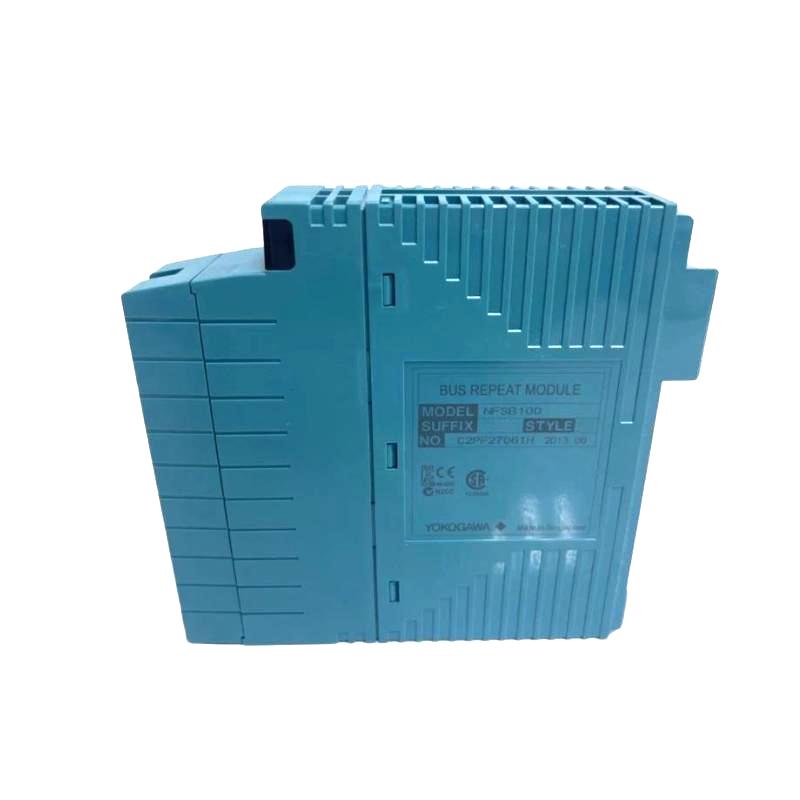

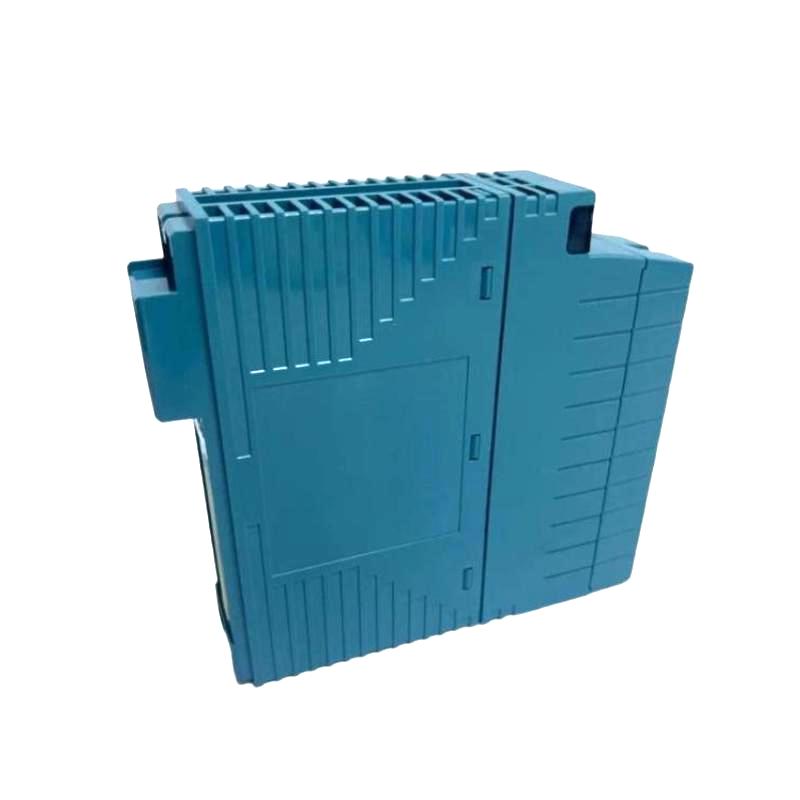

Yokogawa NFSB100 Bus Repeat Module

Applications

• Extending bus communication range in Yokogawa DCS (Distributed Control Systems)

• Repeating and amplifying signals to maintain network integrity over long distances

• Integration with field I/O and CPU modules for reliable communication

• Supporting redundancy and fail-safe network configurations

• Industrial process control in power plants, chemical plants, and manufacturing

Advantages

• Ensures stable communication across extended bus distances

• Compact design for easy installation in control cabinets or racks

• Enhances network reliability and reduces data loss in distributed systems

• Compatible with multiple bus topologies for flexible system design

• Robust construction suitable for demanding industrial environments

Technical FAQs

1. Q: What is the primary function of the NFSB100?
   A: Acts as a bus repeat module to extend and amplify network signals

2. Q: Which systems is it compatible with?
   A: Yokogawa Distributed Control Systems (DCS)

3. Q: What are the physical dimensions of the module?
   A: 32 x 127 x 127 mm

4. Q: What is the module weight?
   A: 0.2 kg

5. Q: Can it improve communication over long distances?
   A: Yes, it repeats and strengthens bus signals

6. Q: Does it support redundant bus configurations?
   A: Yes, designed for reliable industrial networks

7. Q: How is the module installed?
   A: Panel or rack-mounted in industrial control cabinets

8. Q: Is it suitable for harsh industrial environments?
   A: Yes, robust construction ensures stable operation

9. Q: Can multiple modules be used together?
   A: Yes, multiple NFSB100 modules can extend bus networks as needed

10. Q: Does it require software configuration?
    A: Minimal setup is required; fully compatible with Yokogawa DCS systems
