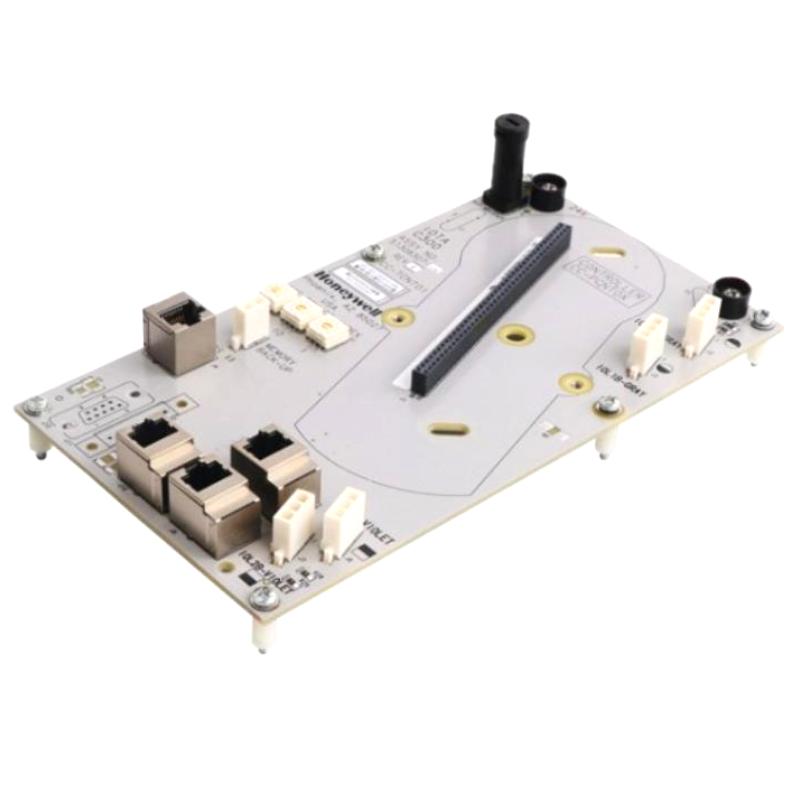

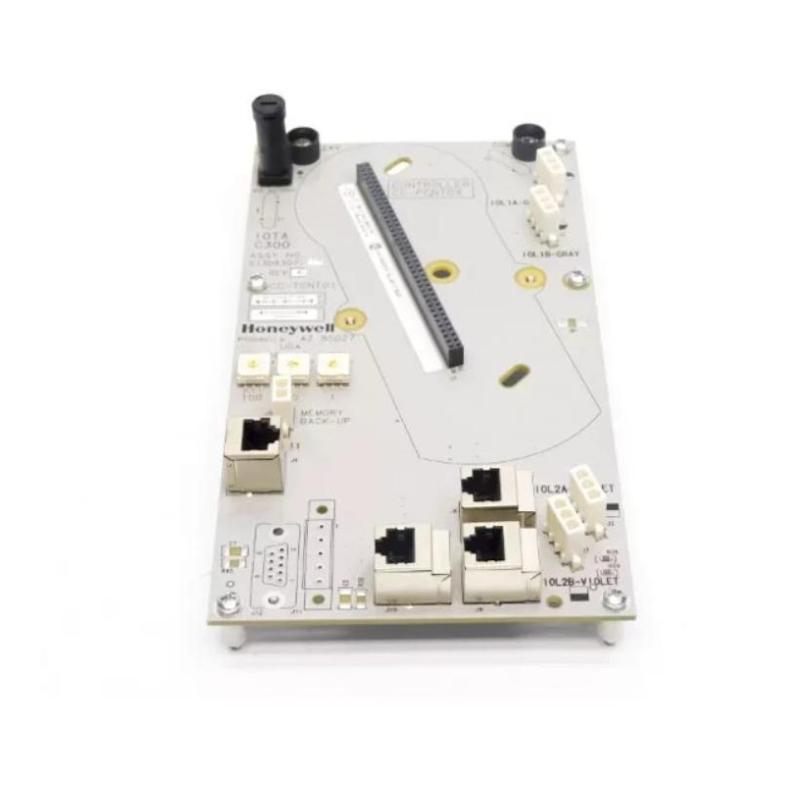

Honeywell CC-TCNT01 51308307-175 C300 Controller Backplane

Applications

• Core backplane for Honeywell C300 Controller systems

• Integration of CPU, I/O, and communication modules

• Provides reliable bus communication between modules in distributed control systems

• Supports high-speed data transfer for industrial automation processes

• Enables system expansion and redundancy for critical applications

Advantages

• Ensures stable, high-speed communication across all connected modules

• Compact and robust design suitable for industrial control cabinets

• Facilitates modular integration of Honeywell C300 CPUs, I/O, and interface modules

• Supports redundant configurations to maximize system uptime

• Lightweight module simplifies installation and maintenance

Technical FAQs

1. Q: What is the primary function of the CC-TCNT01?
   A: Serves as the backplane providing module interconnection and communication for C300 controllers

2. Q: Which systems is it compatible with?
   A: Honeywell C300 Controller and CC series modules

3. Q: What are the physical dimensions of the module?
   A: 63.5 x 124.46 x 307.34 mm

4. Q: What is the module weight?
   A: 0.5 kg

5. Q: Can it support multiple CPU and I/O modules?
   A: Yes, designed for modular integration in C300 systems

6. Q: How is it installed?
   A: Panel or rack-mounted within industrial control cabinets

7. Q: Is it suitable for harsh industrial environments?
   A: Yes, engineered for robust operation in demanding conditions

8. Q: Does it enable redundant system configurations?
   A: Yes, supports redundancy to maintain system uptime

9. Q: Can it facilitate high-speed data communication between modules?
   A: Yes, optimized for reliable inter-module data transfer

10. Q: Can it be used for system expansion?
    A: Yes, additional modules can be connected to increase functionality
