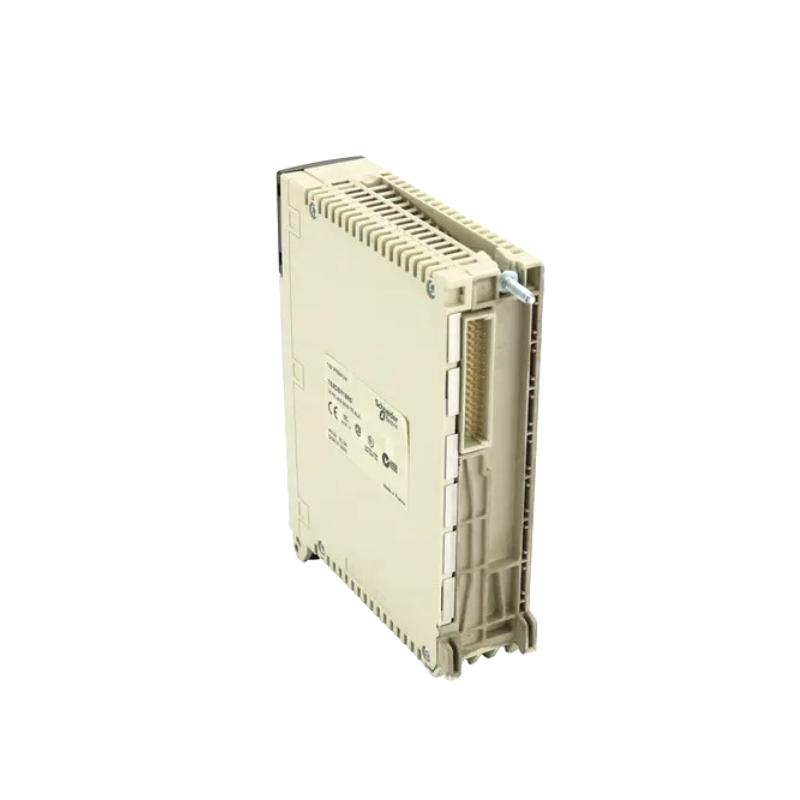

TSXDSY16R5 5 TSXDSY16R5-2 TSXDSY16R5-3 TSXDSY16R5-4

The Schneider TSXDSY16R5 is a 16-channel digital output module designed for use with the Modicon Premium PLC series. This module is engineered to handle high-performance digital output applications where precise control and reliability are paramount. With 16 discrete 24V DC outputs, the TSXDSY16R5 is ideal for controlling a variety of industrial devices such as solenoids, relays, lights, and motors. It provides the versatility and efficiency needed for demanding automation systems, ensuring stable operation in diverse environments. Whether you're working in machine control, process automation, or remote I/O applications, this module offers seamless integration and dependable performance.

Technical Specifications

Specification	Details
Model	TSXDSY16R5
Module Type	Digital Output Module
Output Type	16 Digital Outputs
Output Voltage	24 VDC
Output Current	0.5 A per channel
Relay Type	Transistor (Solid State)
Dimensions	4.65 in x 3.94 in x 2.05 in (118 mm x 100 mm x 52 mm)
Weight	0.4 kg (0.88 lbs)
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Power Consumption	4 W
Certifications	UL, CE, RoHS

Recommended Related Models

To expand your system’s capabilities and improve performance, consider pairing the TSXDSY16R5 with the following related Schneider Electric modules:

Modicon Premium TSXP574634 Processor: A powerful controller for managing large-scale automation systems and integrating with I/O modules like the TSXDSY16R5.
Modicon TSXPSY1200 Power Supply: A robust and reliable power supply designed to support the power needs of your Modicon system.
Modicon TM3 Analog Input Module: Ideal for adding analog input functionality to your automation system, complementing the digital outputs with real-time analog data processing.

Popular Schneider Models

Modicon M580 PLC: A modular, high-performance PLC that pairs well with the TSXDSY16R5 for complex automation and control systems.
Modicon X80 I/O Modules: Offers expanded I/O options for the Modicon PLC family, ideal for scaling your system.
Schneider Magelis GTU HMI: A robust human-machine interface that seamlessly integrates with Modicon PLCs for operator control and monitoring.

Applications

The Schneider TSXDSY16R5 is suited for various industrial applications where reliable control and management of digital outputs are required. Some key use cases include:

Industrial Automation Systems: Controls actuators, solenoids, and other digital devices in automated production lines or assembly processes.
Machine Control: Provides output signals for controlling machinery and robotic systems in manufacturing environments.
Process Control Systems: Interfaces with valves, pumps, and motors, ensuring precise control of equipment in process industries.
Remote I/O Solutions: Distributes digital outputs across remote locations, enabling efficient control over vast industrial installations.

Advantages

High Output Density: With 16 digital output channels, the TSXDSY16R5 allows for compact control solutions while supporting multiple devices simultaneously.
Solid-State Reliability: The module uses solid-state transistors for outputs, ensuring long-lasting, reliable operation with minimal wear and tear compared to mechanical relays.
Compact Design: Its compact size saves valuable space in control panels, making it ideal for tight installations without sacrificing functionality.
Wide Compatibility: Designed for easy integration with Schneider Electric's Modicon Premium PLCs and other Modicon I/O modules, ensuring a flexible system architecture.
Efficient Power Usage: The module is power-efficient, drawing only 4W of power, reducing the overall energy consumption of your automation system.

Technical FAQs

How many outputs does the TSXDSY16R5 module have?
- The TSXDSY16R5 provides 16 digital outputs, offering flexible and efficient control for multiple devices.
What is the maximum current output per channel?
- Each channel can output a maximum of 0.5 A, ideal for controlling small to medium-sized digital devices such as relays and solenoids.
Can the TSXDSY16R5 be used with Modicon M340 PLCs?
- While the TSXDSY16R5 is optimized for Modicon Premium PLCs, it can also be integrated into Modicon M340 systems with appropriate configurations.
Is the TSXDSY16R5 compatible with 120V or 240V outputs?
- The TSXDSY16R5 operates with 24V DC outputs. For higher voltage outputs, a different module may be required.
What type of output does the TSXDSY16R5 use?
- The module uses solid-state transistor outputs, which are more durable and efficient than mechanical relays.
Can the TSXDSY16R5 be used in outdoor applications?
- The module is designed for indoor use, with an operating temperature range of 0°C to 55°C. Additional protective housing is recommended for outdoor use.
What is the power consumption of the TSXDSY16R5?
- The module consumes a total of 4W, which is efficient for most automation setups.
What are the physical dimensions of the TSXDSY16R5?
- The module measures 4.65 inches x 3.94 inches x 2.05 inches (118 mm x 100 mm x 52 mm), which allows for easy integration into most control systems.
Does the TSXDSY16R5 offer any diagnostic features?
- Yes, the module includes LED indicators for operational status, which make it easy to monitor and troubleshoot.
What certifications does the TSXDSY16R5 hold?
- The TSXDSY16R5 is certified by UL, CE, and RoHS, ensuring compliance with international safety, environmental, and quality standards.
