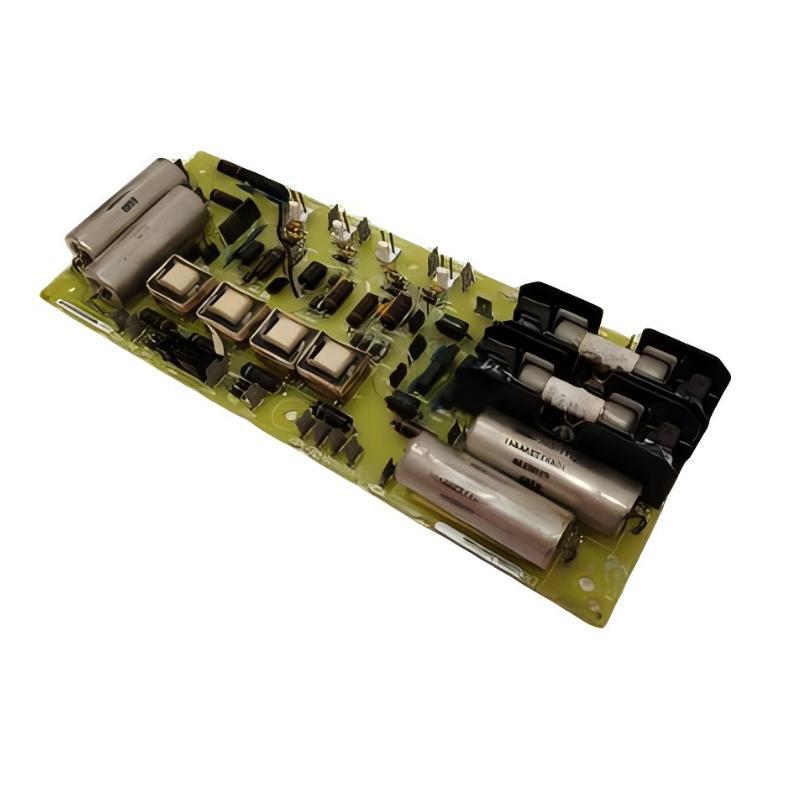

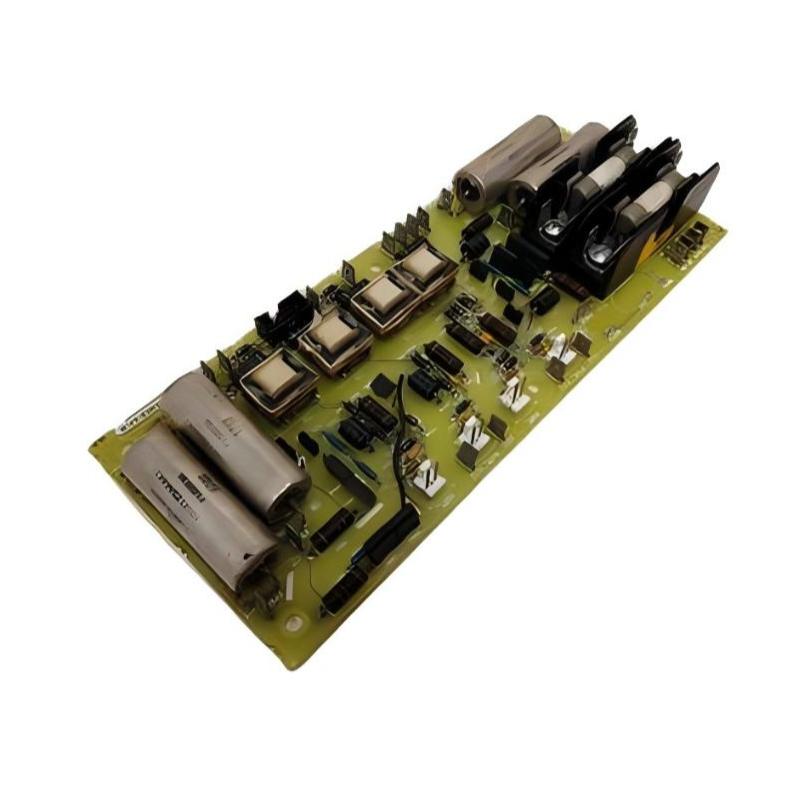

GE Fanuc DS200FSAAG1ABA Field-Powered Gate Amplifier Board

Applications

• Amplifying control signals for field devices in industrial automation

• Integration with GE Fanuc DS200 PLCs and process control modules

• Supporting gate and actuator control in high-speed industrial processes

• Ensuring reliable signal transmission in distributed control systems

• Enabling precise and real-time control of field-powered devices

Advantages

• Field-powered design ensures reliable operation without additional power supply

• Compact yet robust for installation in industrial control cabinets

• High-speed signal amplification for accurate and responsive control

• Fully compatible with GE Fanuc DS200 series I/O and process modules

• Reduces wiring complexity and centralizes signal management for field devices

Technical FAQs

1. Q: What is the primary function of the DS200FSAAG1ABA?
   A: Acts as a field-powered gate amplifier board for controlling actuators and field devices

2. Q: Which systems is it compatible with?
   A: GE Fanuc DS200 series PLCs and I/O modules

3. Q: What are the physical dimensions of the board?
   A: 210 × 120 × 60 mm

4. Q: What is the board weight?
   A: 0.73 kg

5. Q: Can it handle multiple gate signals simultaneously?
   A: Yes, designed for multi-channel field device control

6. Q: How is it installed?
   A: Panel-mounted within industrial control cabinets

7. Q: Is it suitable for harsh industrial environments?
   A: Yes, engineered for stable and reliable operation under demanding conditions

8. Q: Does it require an external power supply?
   A: No, it is field-powered and operates independently

9. Q: Can it interface with other GE Fanuc DS200 modules?
   A: Yes, fully compatible with DS200 I/O, CPU, and process interface boards

10. Q: Can it simplify field device wiring and control?
    A: Yes, centralizes signal amplification and reduces cabling complexity
