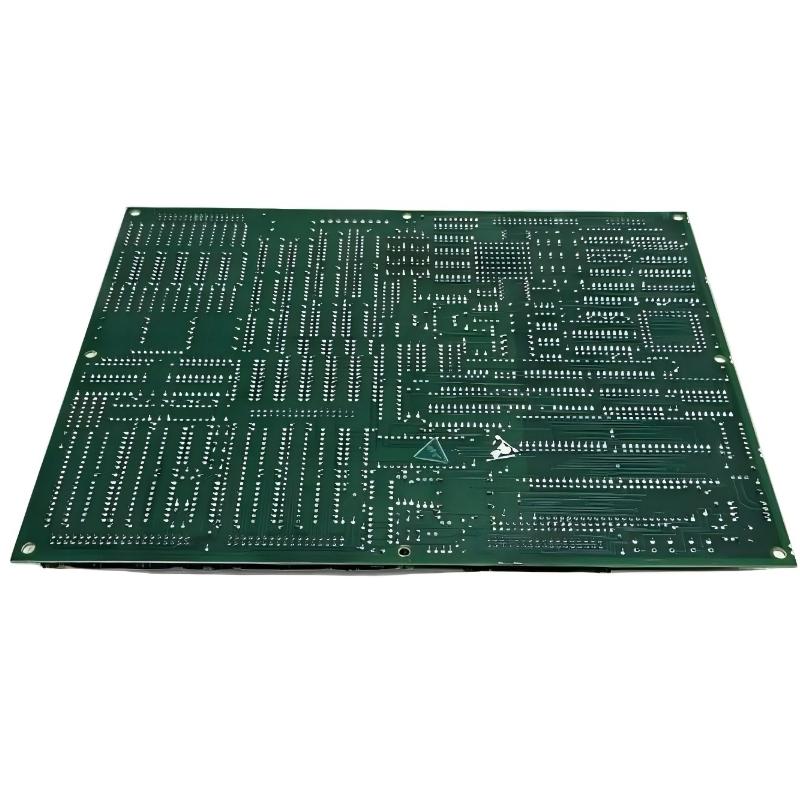

GE Fanuc DS215TCQAG1BZZ01A DS200TCQAG1BDC Analog I/O Board

Applications

• High-precision analog input and output signal management for PLC systems

• Integration with GE Fanuc DS200 series controllers and process automation modules

• Acquisition of sensor signals including temperature, pressure, and flow

• Enabling real-time monitoring and control of industrial processes

• Supporting multi-channel analog signal routing for complex industrial systems

Advantages

• Handles multiple analog inputs and outputs with high accuracy

• Robust design ensures reliable operation in harsh industrial environments

• Compact footprint simplifies installation in control cabinets

• Fully compatible with GE Fanuc DS200/DS215 series PLCs and I/O modules

• Reduces wiring complexity while centralizing analog signal management

Technical FAQs

1. Q: What is the primary function of the DS215TCQAG1BZZ01A / DS200TCQAG1BDC?
   A: Acts as a high-precision analog input/output board for industrial PLC systems

2. Q: Which systems is it compatible with?
   A: GE Fanuc DS200 and DS215 series PLCs and I/O modules

3. Q: What are the physical dimensions of the board?
   A: 262 × 185 × 39 mm

4. Q: What is the board weight?
   A: 0.8 kg

5. Q: Can it process multiple analog channels simultaneously?
   A: Yes, designed for multi-channel analog input and output

6. Q: How is it installed?
   A: Panel or rack-mounted within industrial control cabinets

7. Q: Is it suitable for harsh industrial environments?
   A: Yes, engineered for reliable operation under demanding conditions

8. Q: Does it support real-time process monitoring?
   A: Yes, ideal for continuous acquisition and processing of analog signals

9. Q: Can it interface with other GE Fanuc modules?
   A: Yes, fully compatible with GE Fanuc CPU, interface, and I/O boards

10. Q: Can it simplify analog signal wiring?
    A: Yes, centralizes multiple analog channels into a single, easy-to-install module
