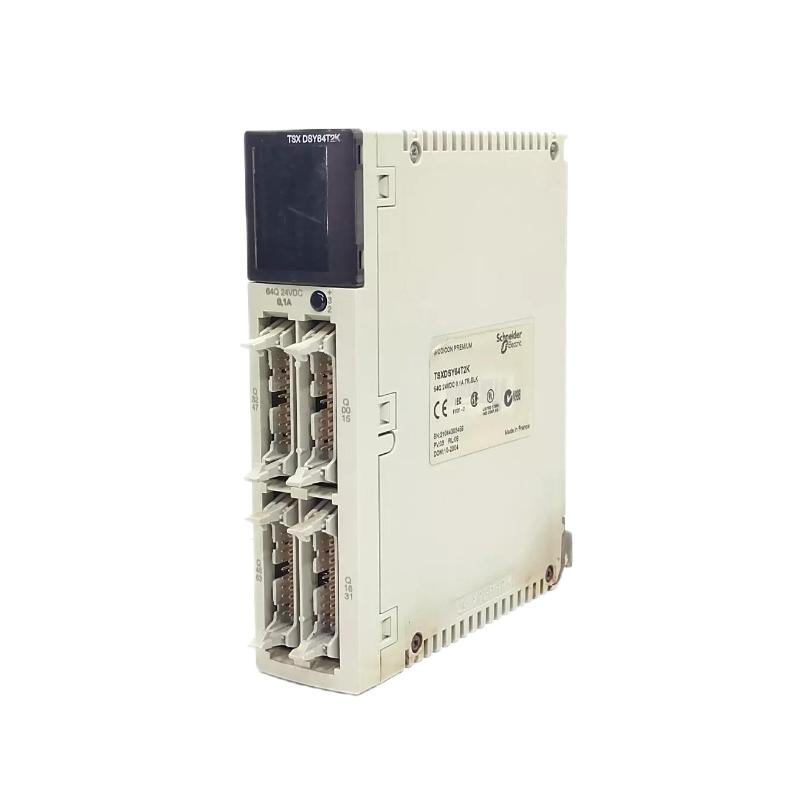

The Schneider TSXDSY64T2K is a high-performance 64-channel digital output module designed for integration with Modicon Premium PLCs. Offering 24V DC solid-state outputs, this module is built for high-density applications where reliable, high-speed control of multiple digital devices is required. With its solid-state (transistor) switching, the TSXDSY64T2K provides exceptional durability and minimizes the need for maintenance compared to mechanical relay-based systems. This module is ideal for controlling a wide variety of industrial equipment, such as solenoids, relays, motors, and valves, in applications that demand a large number of outputs in a compact footprint.

Whether used in machine control, process automation, or large-scale industrial systems, the TSXDSY64T2K delivers the flexibility and reliability needed to keep your automation systems running smoothly.

Technical Specifications

Specification	Details
Model	TSXDSY64T2K
Module Type	Digital Output Module
Output Channels	64 Digital Outputs
Output Voltage	24 VDC
Output Current	0.5 A per channel
Relay Type	Solid-State (Transistor)
Dimensions	7.68 in x 3.94 in x 2.05 in (195 mm x 100 mm x 52 mm)
Weight	0.9 kg (1.98 lbs)
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Power Consumption	8 W
Certifications	UL, CE, RoHS

Recommended Related Models

For a more comprehensive and scalable automation solution, consider pairing the TSXDSY64T2K with the following Schneider Electric products:

Modicon Premium TSXP574634 Processor: A high-performance processor designed for managing large-scale automation systems and perfectly paired with the TSXDSY64T2K.
Modicon TSXPSY1200 Power Supply: A robust and reliable power supply designed to support the power needs of your entire Modicon Premium system, ensuring stable operation.
Modicon TM3 Digital Input Module: Ideal for adding digital input capabilities, expanding the overall I/O capabilities of your system to handle both inputs and outputs in a unified solution.

Popular Schneider Models

Modicon M580 Ethernet PLC: A modular and powerful PLC with Ethernet-based communication that integrates easily with the TSXDSY64T2K for advanced networking and large-scale automation solutions.
Modicon X80 I/O Modules: These I/O modules are scalable and flexible, providing additional input and output options for your Modicon Premium system.
Schneider Magelis GTU HMI: A high-quality human-machine interface that integrates seamlessly with Modicon PLCs and helps operators easily monitor and control industrial systems.

Applications

The Schneider TSXDSY64T2K is designed for high-density digital output applications that require reliability and efficient control. Its large number of channels makes it ideal for various industrial automation scenarios, including:

Industrial Automation Systems: Control up to 64 digital devices simultaneously, including relays, solenoids, lights, and motors, making it ideal for complex production lines or automated assembly systems.
Machine Control: Use the module to control a variety of machines, robotics, or production processes, offering real-time control of multiple output devices.
Process Control Systems: Integrates seamlessly with process control applications, enabling precise control of valves, pumps, and motors within industries like chemical, pharmaceutical, and food processing.
Remote I/O Solutions: Ideal for large-scale installations where remote control of digital outputs is needed, providing effective distribution and control of multiple devices across wide areas.

Advantages

High-Density I/O: With 64 digital outputs, the TSXDSY64T2K provides a space-efficient solution for applications that require managing a large number of devices without the need for multiple modules.
Solid-State Technology: The module uses solid-state transistor switches, ensuring superior durability, low maintenance, and a longer operational lifespan compared to mechanical relays.
Compact Design: Despite offering 64 outputs, the module is compact, measuring only 7.68 in x 3.94 in x 2.05 in, making it ideal for installations with limited space.
Power-Efficient: Consuming just 8W of power, the module contributes to overall energy savings in your automation system.
Wide Temperature Range: The TSXDSY64T2K can operate in a range of 0°C to 55°C, making it suitable for diverse industrial environments, even those with varying temperature conditions.
Reliable Performance: Designed to work seamlessly with Modicon Premium PLCs, ensuring stable and continuous control in mission-critical applications.

Technical FAQs

How many digital output channels does the TSXDSY64T2K support?
- The TSXDSY64T2K offers 64 digital output channels, providing the capability to control a large number of devices simultaneously.
What is the current capacity of each output channel?
- Each output channel supports up to 0.5 A, making it suitable for controlling a wide range of digital devices, including solenoids, relays, and lights.
What type of output relay is used in the TSXDSY64T2K?
- The module uses solid-state (transistor) relays, offering higher reliability and longer lifespan compared to mechanical relays.
Can the TSXDSY64T2K be used with Modicon M340 PLCs?
- While the TSXDSY64T2K is designed for Modicon Premium PLCs, it may be compatible with Modicon M340 PLCs with proper configuration, but it is primarily optimized for the Premium range.
What is the power consumption of the TSXDSY64T2K?
- The module consumes approximately 8W of power, ensuring it is energy-efficient while providing high performance.
What are the physical dimensions of the TSXDSY64T2K?
- The module has a compact design, measuring 7.68 inches x 3.94 inches x 2.05 inches (195 mm x 100 mm x 52 mm).
Can the TSXDSY64T2K be used in outdoor environments?
- The module is designed for indoor use. If used outdoors, additional protective housing or enclosures will be needed to protect it from environmental factors.
What is the maximum voltage for the digital outputs?
- The TSXDSY64T2K provides 24V DC digital outputs, suitable for controlling low-to-medium power devices.
What certifications does the TSXDSY64T2K hold?
- The module is certified for UL, CE, and RoHS, ensuring it meets international standards for safety and environmental compatibility.
What is the expected lifespan of the TSXDSY64T2K module?
- The module is built with solid-state technology, which offers a long operational life, typically exceeding 10 years under normal operating conditions.
