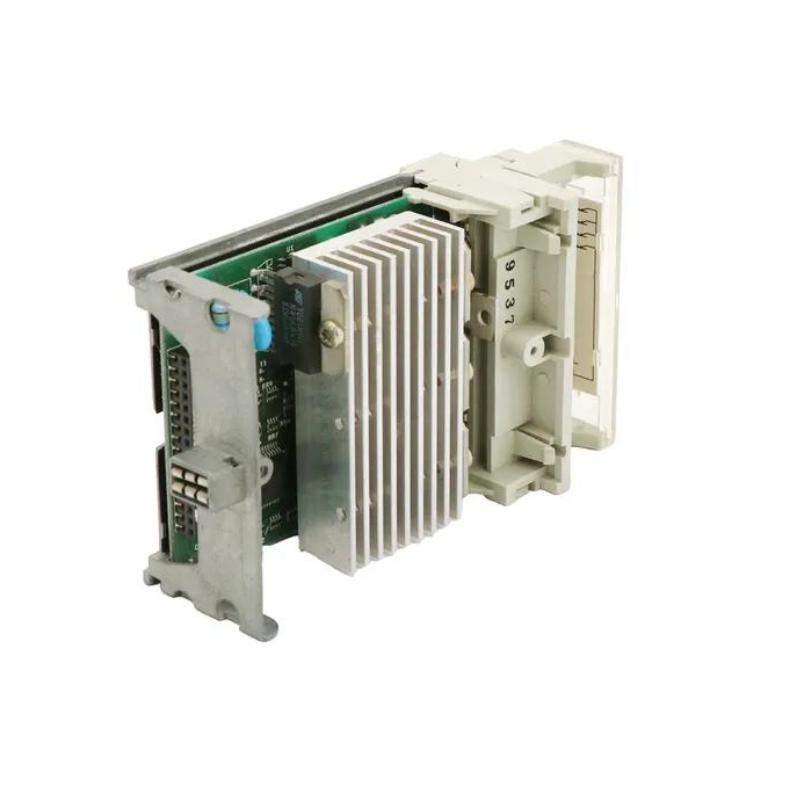

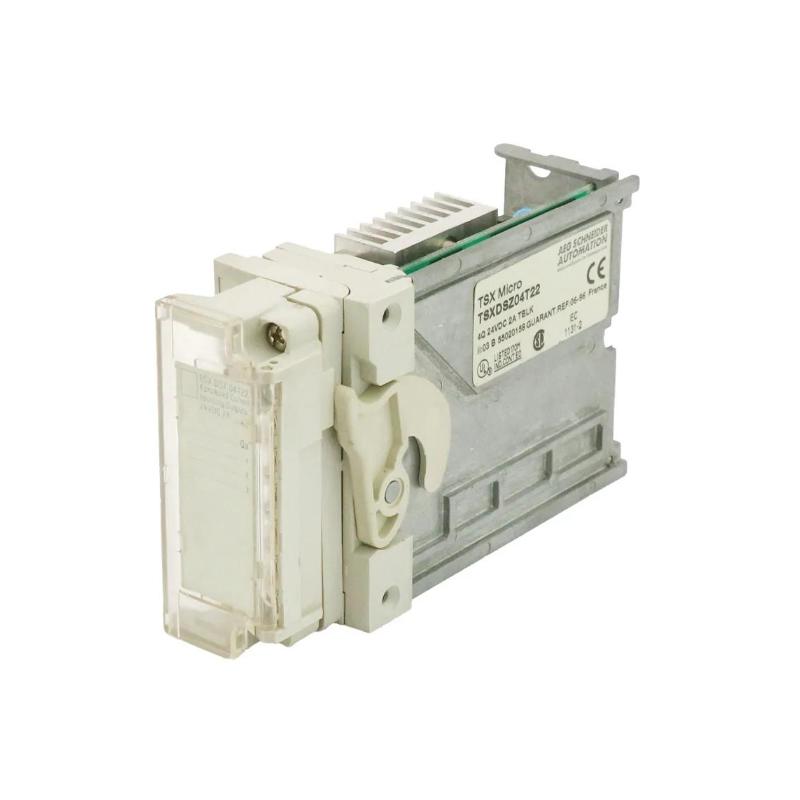

Schneider TSXDSZ04T22 Digital Output Module for Modicon Premium PLC – 4-Channel 24V DC Solid-State Output with High Precision and Reliability

Applications

The Schneider TSXDSZ04T22 is designed for a variety of industrial automation applications that require high-density digital output control. Its compact design and high performance make it ideal for the following use cases:

• Industrial Automation Systems: Perfect for controlling a wide range of industrial devices such as motors, solenoids, and actuators in automated manufacturing or assembly lines.

• Machine Control: Provides reliable control of digital outputs in machine systems, robotic arms, and other automated equipment.

• Process Control: Integrates seamlessly with process systems, controlling components such as pumps, valves, and sensors in industries like chemical, pharmaceutical, and food processing.

• Remote I/O Solutions: Ideal for large or distributed systems where remote control of digital outputs is required, enabling centralized management across multiple locations.

Advantages

• Solid-State Reliability: The use of solid-state transistor switches ensures longer lifespan and superior reliability compared to mechanical relays, reducing downtime and maintenance needs.

• Compact Design: Despite offering 4 digital output channels, the module's compact size (4.65 in x 3.94 in x 2.05 in) makes it ideal for systems with limited space.

• Low Power Consumption: With a low 4W power consumption, the TSXDSZ04T22 is an energy-efficient solution that helps minimize overall system power use.

• Wide Temperature Range: It operates in a wide temperature range of 0°C to 55°C, making it suitable for diverse industrial environments, from harsh factories to controlled process systems.

• Easy Integration: Fully compatible with Modicon Premium PLCs, this module integrates quickly and easily into your existing control systems with minimal setup required.

• Precise Control: Provides precise control over digital outputs, offering enhanced performance for systems where accuracy and responsiveness are key.

Technical FAQs

1. How many output channels does the TSXDSZ04T22 support?

   • The TSXDSZ04T22 supports 4 digital output channels, making it suitable for applications where a smaller number of outputs is needed.

2. What type of relay is used in the TSXDSZ04T22?

   • The module uses solid-state (transistor) relays, which offer higher reliability and longer service life compared to mechanical relays.

3. What is the maximum current per output channel?

   • Each output channel supports a maximum current of 0.5 A, ideal for controlling small-to-medium power devices.

4. What is the operating temperature range of the TSXDSZ04T22?

   • The TSXDSZ04T22 operates within a temperature range of 0°C to 55°C (32°F to 131°F), suitable for most industrial environments.

5. Is the TSXDSZ04T22 suitable for outdoor use?

   • The TSXDSZ04T22 is designed for indoor use. For outdoor applications, it should be housed in an appropriate protective enclosure.

6. What power supply is required for the TSXDSZ04T22?

   • The module operates on a 24V DC power supply, which can be provided by the Modicon Premium PLC or an external power source.

7. What are the physical dimensions of the TSXDSZ04T22?

   • The module has compact dimensions of 4.65 inches x 3.94 inches x 2.05 inches (118 mm x 100 mm x 52 mm), making it ideal for installation in tight spaces.

8. Can the TSXDSZ04T22 be used for high-power applications?

   • The module is designed for low-to-medium power applications with a maximum current rating of 0.5 A per channel. For higher-power devices, external relays or switches may be required.

9. What certifications does the TSXDSZ04T22 hold?

   • The module is certified for UL, CE, and RoHS, ensuring compliance with global safety, quality, and environmental standards.

10. Does the TSXDSZ04T22 have diagnostic features?

    • Yes, the module features LED indicators that show the operational status of each output channel, helping with diagnostics and troubleshooting.
