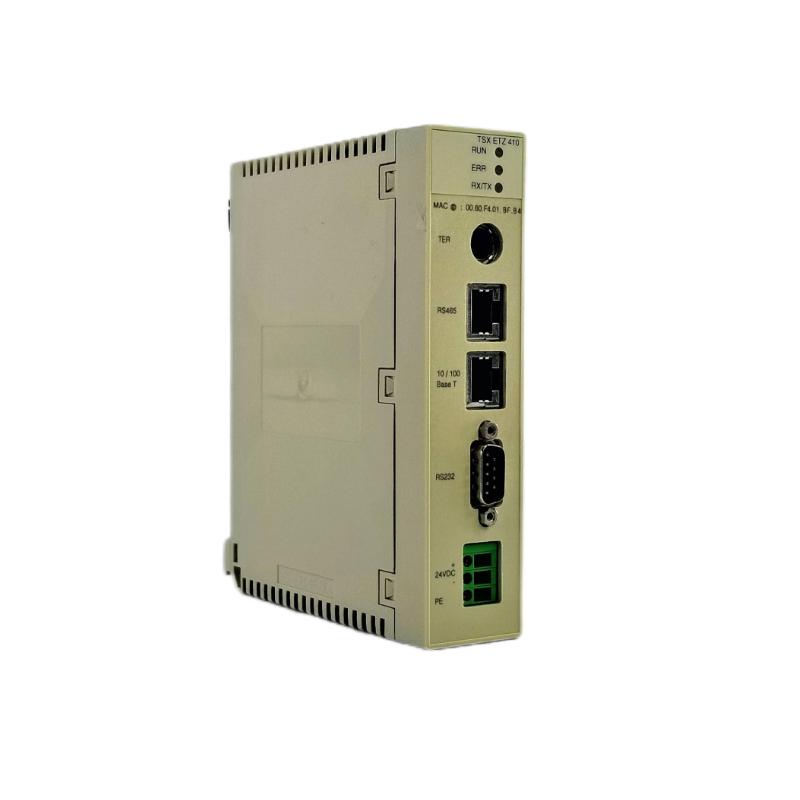

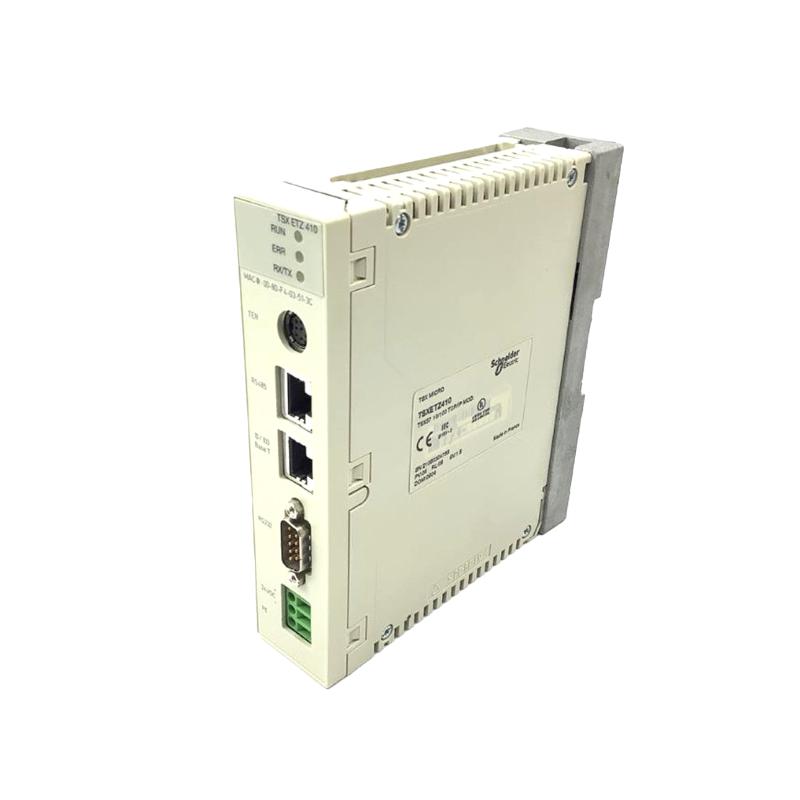

The Schneider TSXETZ410 is a Modbus TCP communication module designed for Modicon Premium PLCs. This module provides an efficient and reliable solution for integrating Modicon PLC systems with Modbus TCP-compatible devices over Ethernet networks. By offering seamless communication, the TSXETZ410 enables real-time data exchange between PLCs, remote I/O devices, sensors, and various industrial equipment. Ideal for expanding system flexibility, the module supports both Ethernet/IP and Modbus TCP protocols, making it perfect for industries that require high-performance, scalable, and secure networking solutions. Whether you are building a distributed control system (DCS) or connecting to a supervisory control and data acquisition (SCADA) system, the TSXETZ410 is engineered to meet the growing demands of industrial automation networks.

Technical Specifications

Specification	Details
Model	TSXETZ410
Module Type	Modbus TCP Communication Module
Communication Protocol	Modbus TCP, Ethernet/IP
Transmission Speed	10/100 Mbps
Ethernet Ports	1 x RJ45
Operating Voltage	24V DC
Power Consumption	3W
Dimensions	4.65 in x 3.94 in x 2.05 in (118 mm x 100 mm x 52 mm)
Weight	0.3 kg (0.66 lbs)
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Certifications	UL, CE, RoHS

Recommended Related Models

To further enhance your industrial network, consider integrating the TSXETZ410 with the following Schneider Electric products:

Modicon Premium TSXP574634 Processor: A powerful, versatile processor that supports the TSXETZ410 for complex automation applications, providing smooth integration and control.
Modicon TSXPSY1200 Power Supply: A reliable power supply designed to maintain stable voltage for Modicon Premium PLC systems, including the TSXETZ410 module.
Modicon TM3 I/O Modules: Complement the TSXETZ410 with flexible and scalable I/O modules to extend the input/output capabilities of your Modicon PLC system.

Popular Schneider Models

Modicon M580 Ethernet PLC: A modular PLC with native Ethernet connectivity, ideal for large-scale automation projects that integrate seamlessly with the TSXETZ410.
Modicon X80 I/O Modules: A scalable, high-performance I/O solution that works in tandem with the TSXETZ410 to support real-time data processing in distributed control systems.
Magelis GTU HMI: A user-friendly human-machine interface that integrates with Modicon PLCs, allowing operators to easily monitor and control automated systems.

Applications

The Schneider TSXETZ410 is designed to provide Modbus TCP communication for a range of industrial applications, including:

Industrial Ethernet Networks: The TSXETZ410 enables smooth communication between Modicon Premium PLCs and Modbus-compatible devices across Ethernet networks, supporting high-speed data transfer for real-time applications.
Distributed Control Systems (DCS): Easily integrate remote I/O systems, sensors, actuators, and third-party controllers into a Modicon Premium PLC network using Modbus TCP.
SCADA System Integration: Seamlessly connect PLCs to SCADA systems, facilitating real-time data exchange and remote monitoring for industrial processes.
Factory Automation: Connect diverse industrial devices such as motors, drives, sensors, and robots to Modicon PLCs, ensuring efficient communication and control in automated manufacturing systems.
Process Control: Use the TSXETZ410 to integrate Modicon PLCs with field devices in process control applications, supporting both Modbus TCP and Ethernet/IP communication for optimized performance.

Advantages

Modbus TCP Protocol: The TSXETZ410 supports the Modbus TCP protocol, ensuring compatibility with a wide range of industrial devices, third-party controllers, and systems, enabling flexible integration.
Compact and Lightweight: With a compact design (118 mm x 100 mm x 52 mm) and weighing only 0.3 kg, the TSXETZ410 can easily be installed in control panels or distributed systems without taking up too much space.
Ethernet Communication: The module supports 10/100 Mbps Ethernet communication, ensuring fast and reliable data transfer for real-time industrial applications.
Energy Efficient: The module operates with a low power consumption of just 3W, reducing the energy footprint of your system while maintaining high performance.
Wide Temperature Range: The TSXETZ410 operates in environments ranging from 0°C to 55°C (32°F to 131°F), making it suitable for most industrial settings.
Easy Integration: Designed for straightforward installation and configuration, the TSXETZ410 integrates easily with other Modicon PLC components, enhancing the scalability and flexibility of your automation system.
Global Certifications: The TSXETZ410 is certified for UL, CE, and RoHS, ensuring compliance with international safety, environmental, and quality standards.

Technical FAQs

What communication protocols are supported by the TSXETZ410?
- The TSXETZ410 supports Modbus TCP and Ethernet/IP protocols, enabling communication with Modbus-compatible devices and systems.
How many Ethernet ports does the TSXETZ410 have?
- The module features 1 x RJ45 Ethernet port, supporting 10/100 Mbps communication for seamless data transfer.
What is the power consumption of the TSXETZ410?
- The TSXETZ410 consumes 3W of power, making it an energy-efficient solution for integrating Ethernet-based communication into your system.
What is the operating temperature range of the TSXETZ410?
- The module operates within a temperature range of 0°C to 55°C (32°F to 131°F), suitable for most industrial environments.
Can the TSXETZ410 be used outdoors?
- The TSXETZ410 is designed for indoor use. For outdoor applications, a protective enclosure is recommended to shield it from environmental factors such as dust and moisture.
What certifications does the TSXETZ410 hold?
- The module is UL, CE, and RoHS certified, ensuring compliance with international standards for safety, quality, and environmental responsibility.
What is the maximum data transmission speed of the TSXETZ410?
- The TSXETZ410 supports 10/100 Mbps Ethernet speeds, providing fast and reliable data transfer for real-time communication.
How do I integrate the TSXETZ410 with my Modicon PLC system?
- Integration is simple. Connect the module to your Ethernet network, and configure it via the Modicon PLC programming software to enable communication with Modbus-compatible devices.
What are the physical dimensions of the TSXETZ410?
- The TSXETZ410 has compact dimensions of 4.65 inches x 3.94 inches x 2.05 inches (118 mm x 100 mm x 52 mm), allowing it to fit easily into control panels or networked systems.
Is the TSXETZ410 compatible with all Modicon PLCs?
- The TSXETZ410 is designed for Modicon Premium PLCs but may also be compatible with other Modicon PLCs that support Modbus TCP communication.
