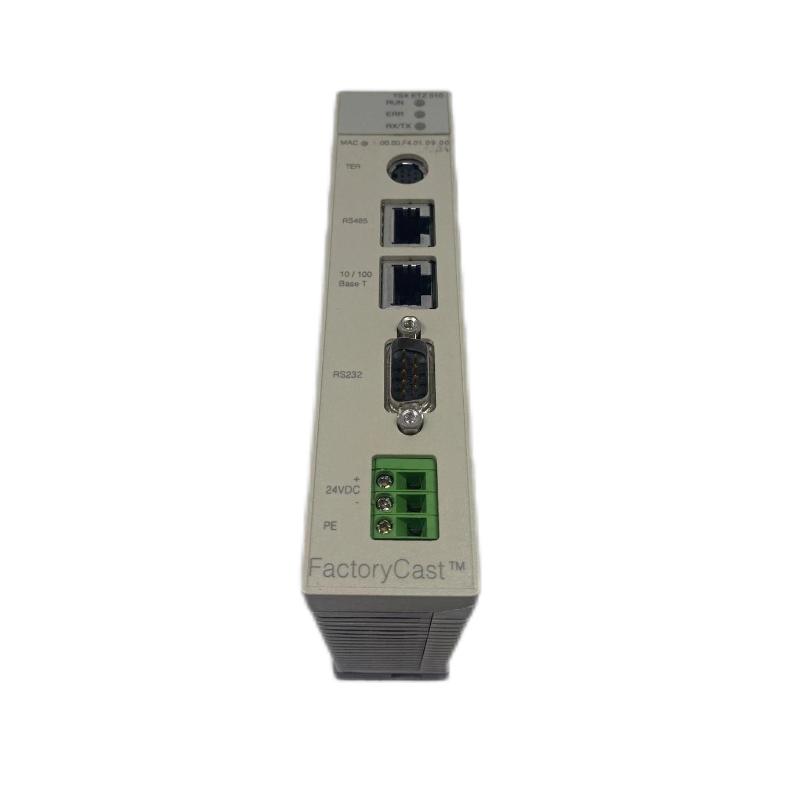

The Schneider TSXETZ510 is a Modbus TCP communication module designed to provide reliable and seamless Ethernet connectivity for Modicon Premium PLCs. As a key component for industrial automation systems, this module supports Modbus TCP protocol, enabling efficient and real-time data exchange between Modicon PLCs, I/O devices, sensors, and other Ethernet-based systems. Ideal for both small and large-scale applications, the TSXETZ510 supports 10/100 Mbps Ethernet communication, ensuring fast and reliable connectivity across the industrial network. This communication module is the perfect solution for integrating Modicon Premium PLCs into Modbus TCP networks, making it an essential part of any modern automation system that requires high-performance communication.

Technical Specifications

Specification	Details
Model	TSXETZ510
Module Type	Modbus TCP Communication Module
Communication Protocol	Modbus TCP, Ethernet/IP
Transmission Speed	10/100 Mbps
Ethernet Ports	1 x RJ45
Operating Voltage	24V DC
Power Consumption	4W
Dimensions	4.65 in x 3.94 in x 2.05 in (118 mm x 100 mm x 52 mm)
Weight	0.3 kg (0.66 lbs)
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Certifications	UL, CE, RoHS

Recommended Related Models

To complement your Modicon Premium PLC network, consider integrating the TSXETZ510 with these Schneider Electric products for enhanced automation:

Modicon Premium TSXP574634 Processor: A powerful processor that integrates seamlessly with the TSXETZ510, providing robust control and high-level processing power for automation systems.
Modicon TSXPSY1200 Power Supply: A reliable power supply designed to support the TSXETZ510 module and ensure stable and continuous power for your Modicon PLC and networked devices.
Modicon TM3 I/O Modules: Expand the input/output capacity of your system by adding TM3 I/O modules, perfectly compatible with the TSXETZ510 for real-time data exchange in distributed control systems.

Popular Schneider Models

Modicon M580 Ethernet PLC: A highly flexible and modular Ethernet PLC that integrates seamlessly with the TSXETZ510, making it ideal for complex, large-scale automation systems.
Modicon X80 I/O Modules: High-performance I/O modules that can be easily expanded and integrated with the TSXETZ510 for scalable system configurations.
Magelis GTU HMI: A human-machine interface that offers intuitive control and monitoring capabilities when connected to Modicon PLCs, providing a seamless integration with the TSXETZ510 module.

Applications

The Schneider TSXETZ510 is designed to deliver robust Ethernet communication for a variety of industrial applications, including:

Industrial Ethernet Networks: Enable real-time data exchange between Modicon Premium PLCs and Modbus-compatible devices across the Ethernet network, ensuring high-speed communication and minimal latency.
Distributed Control Systems (DCS): Expand your DCS network by connecting remote I/O devices, actuators, sensors, and other field devices to the Modicon PLC, leveraging the TSXETZ510 for reliable communication.
SCADA System Integration: Facilitate the connection between Modicon PLCs and SCADA systems, allowing for centralized control, monitoring, and data management across your entire facility.
Factory Automation: Enhance factory automation by linking motors, drives, robots, and other equipment to the Modicon PLC through the TSXETZ510 for effective real-time control and monitoring.
Process Control: The TSXETZ510 allows for seamless integration of Modicon Premium PLCs with process control systems, ensuring continuous monitoring and optimized performance of industrial processes.

Advantages

Modbus TCP Protocol: The TSXETZ510 supports the widely used Modbus TCP protocol, making it easy to integrate into existing Modbus networks while supporting secure and efficient data exchange.
Compact Design: With compact dimensions of 118 mm x 100 mm x 52 mm and a weight of 0.3 kg, the TSXETZ510 is perfect for tight spaces and easy installation in control panels.
Ethernet Communication: The module supports 10/100 Mbps Ethernet communication, providing reliable, high-speed connectivity across industrial networks.
Energy Efficient: With a low power consumption of just 4W, the TSXETZ510 is designed to operate efficiently, contributing to the reduction of overall system energy costs.
Wide Operating Temperature Range: The module operates within a temperature range of 0°C to 55°C (32°F to 131°F), making it suitable for use in a variety of industrial environments.
Easy Integration: Designed for simple installation, the TSXETZ510 integrates effortlessly with Modicon Premium PLCs and can be configured with minimal effort using standard Modbus TCP protocols.
Certified Quality: The TSXETZ510 is UL, CE, and RoHS certified, ensuring that it meets international standards for safety, quality, and environmental impact.

Technical FAQs

What protocols are supported by the TSXETZ510?
- The TSXETZ510 supports Modbus TCP and Ethernet/IP protocols, allowing seamless communication with Modbus-compatible devices and Ethernet-based systems.
How many Ethernet ports are available on the TSXETZ510?
- The module features 1 x RJ45 Ethernet port, supporting 10/100 Mbps speeds for reliable communication.
What is the power consumption of the TSXETZ510?
- The TSXETZ510 has a power consumption of 4W, making it energy-efficient for high-performance communication.
What is the operating temperature range of the TSXETZ510?
- The TSXETZ510 operates within a temperature range of 0°C to 55°C (32°F to 131°F), suitable for most industrial applications.
Can the TSXETZ510 be used outdoors?
- The TSXETZ510 is designed for indoor use. To use it outdoors, a protective enclosure is recommended to safeguard it from environmental conditions like moisture and dust.
What certifications does the TSXETZ510 hold?
- The TSXETZ510 is certified for UL, CE, and RoHS, meeting international safety, environmental, and quality standards.
What is the data transmission speed of the TSXETZ510?
- The module supports 10/100 Mbps Ethernet speeds, providing reliable and fast data transfer for industrial communication.
How do I integrate the TSXETZ510 with my Modicon PLC system?
- Simply connect the TSXETZ510 to your Ethernet network and configure it through the Modicon Premium PLC programming software to enable Modbus TCP communication with other devices.
What are the physical dimensions of the TSXETZ510?
- The module has a compact size of 4.65 inches x 3.94 inches x 2.05 inches (118 mm x 100 mm x 52 mm), which makes it easy to integrate into control panels or other networked systems.
Is the TSXETZ510 compatible with all Modicon PLCs?
- The TSXETZ510 is primarily designed for Modicon Premium PLCs, but it may also work with other Modicon PLCs that support Modbus TCP communication.
