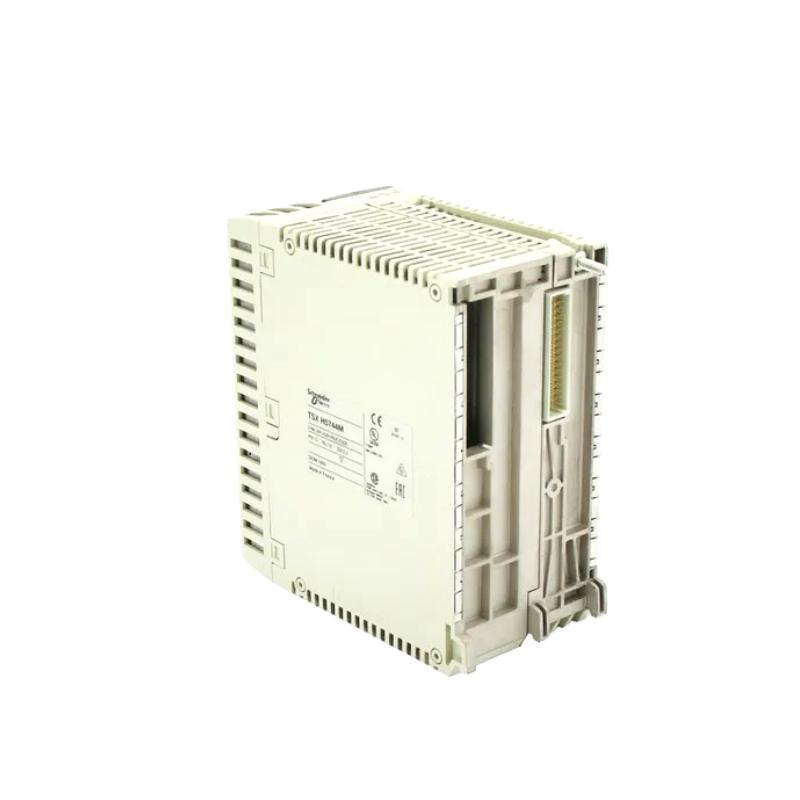

TSXH5744M-7 TSXH5744M-8 TSXH5744M-6 TSXH5744M-5

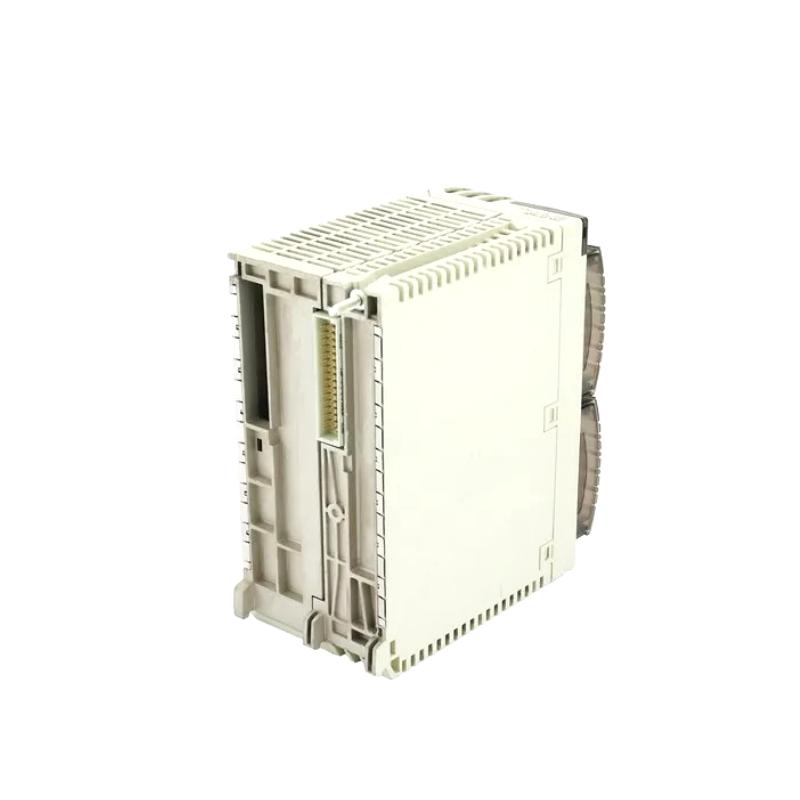

The Schneider TSXH5744M is a high-performance processor designed for Modicon Premium PLCs, offering enhanced processing power and flexibility for demanding industrial automation applications. With a robust architecture, the TSXH5744M supports Ethernet, Modbus TCP, and Ethernet/IP communication protocols, making it ideal for large-scale, distributed systems that require high-speed data processing and seamless network integration. This powerful processor is capable of handling complex control processes, real-time data exchange, and integration with various field devices, providing a comprehensive solution for industries such as manufacturing, oil and gas, energy, and utilities. By offering high reliability, scalability, and extensive communication options, the TSXH5744M ensures that your automation systems can meet the rigorous demands of modern industrial applications.

Technical Specifications

Specification	Details
Model	TSXH5744M
Module Type	Modicon Premium Processor
Processor Type	High-performance Processor
Communication Protocols	Ethernet/IP, Modbus TCP
Memory	4 MB RAM (Expandable)
Processor Speed	266 MHz
Operating Voltage	24V DC
Power Consumption	8W
Dimensions	4.65 in x 3.94 in x 2.05 in (118 mm x 100 mm x 52 mm)
Weight	0.5 kg (1.1 lbs)
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Certifications	UL, CE, RoHS

Recommended Related Models

For enhanced performance and connectivity within your Modicon Premium PLC system, consider integrating the TSXH5744M with the following Schneider Electric products:

Modicon Premium TSXP574634 Processor: Another powerful processor in the Modicon Premium series, offering even more processing capacity and I/O options for large-scale applications.
Modicon TSXPSY1200 Power Supply: A high-quality power supply designed to support the TSXH5744M and other Modicon Premium PLCs, providing stable voltage for optimal performance.
Modicon TM3 I/O Modules: These I/O modules are ideal for expanding your system’s input/output capabilities, seamlessly integrating with the TSXH5744M for real-time data collection and processing.

Popular Schneider Models

Modicon M580 Ethernet PLC: A next-generation, modular PLC offering superior flexibility and integration options, ideal for large-scale automation systems that require Ethernet/IP and Modbus TCP compatibility.
Modicon X80 I/O Modules: High-performance I/O modules that integrate with the TSXH5744M, allowing for easy expansion and scalability of control systems.
Magelis GTU HMI: A versatile and intuitive human-machine interface, perfect for visualizing and controlling automation processes when connected to Modicon Premium PLCs.

Applications

The Schneider TSXH5744M processor is designed for demanding industrial automation applications across a wide range of sectors:

Industrial Automation: The TSXH5744M is ideal for high-speed processing in industrial automation systems, allowing for seamless communication between PLCs, remote I/O devices, and field equipment using Ethernet/IP and Modbus TCP.
Energy Management: Use the TSXH5744M to monitor and control energy systems in utilities, ensuring efficient data processing and integration with other devices such as smart meters, grid systems, and more.
Manufacturing Control Systems: The processor is designed for real-time data processing in large-scale manufacturing facilities, ensuring smooth operation of production lines, robotics, and quality control systems.
Oil & Gas Automation: The TSXH5744M supports the complex and high-demand environments of the oil and gas industry, enabling real-time data acquisition, remote monitoring, and control of critical assets.
Building and Facility Automation: Use the processor to control HVAC, lighting, and other building systems, providing smart solutions for large facilities, ensuring efficiency and security through real-time monitoring and control.

Advantages

High Processing Speed: With a 266 MHz processor, the TSXH5744M offers quick and reliable data processing, ideal for complex control tasks in real-time industrial applications.
Expandable Memory: The 4 MB RAM (expandable) provides ample memory for handling larger applications and complex tasks, ensuring that your system can grow with your business needs.
Wide Communication Support: Supporting Ethernet/IP and Modbus TCP, the TSXH5744M is highly versatile, enabling communication with a wide range of industrial devices and systems, making it easier to integrate into existing setups.
Energy Efficient: With low power consumption of just 8W, the TSXH5744M offers high processing performance while being energy-efficient, helping to reduce the overall energy costs of your automation system.
Compact and Robust Design: The TSXH5744M features a compact design (118 mm x 100 mm x 52 mm) that makes it easy to install in tight spaces within control panels or on the factory floor.
Reliable and Certified: With certifications like UL, CE, and RoHS, the TSXH5744M meets industry standards for safety, quality, and environmental responsibility.
Wide Temperature Range: The processor operates in a temperature range of 0°C to 55°C (32°F to 131°F), making it suitable for various industrial environments, including high-temperature settings.
Scalability: The processor can be easily expanded with additional modules, making it adaptable to growing systems and complex automation requirements.

Technical FAQs

What communication protocols does the TSXH5744M support?
- The TSXH5744M supports Ethernet/IP and Modbus TCP, making it compatible with a wide range of industrial devices and control systems.
What is the processor speed of the TSXH5744M?
- The TSXH5744M features a 266 MHz processor, providing fast and reliable performance for demanding industrial applications.
What is the memory capacity of the TSXH5744M?
- The TSXH5744M comes with 4 MB RAM (expandable), allowing for ample memory to handle complex tasks and large control processes.
What is the power consumption of the TSXH5744M?
- The module consumes 8W of power, ensuring efficient performance while minimizing energy usage.
What is the operating temperature range of the TSXH5744M?
- The processor operates in a temperature range of 0°C to 55°C (32°F to 131°F), suitable for most industrial environments.
Can the TSXH5744M be used outdoors?
- The TSXH5744M is designed for indoor use. For outdoor use, it should be placed in a protective enclosure to shield it from environmental factors such as dust and moisture.
What certifications does the TSXH5744M have?
- The TSXH5744M is certified for UL, CE, and RoHS, ensuring that it meets international safety, environmental, and quality standards.
How do I integrate the TSXH5744M with other Modicon PLCs?
- The TSXH5744M can be easily integrated with other Modicon Premium PLCs by using the standard communication protocols (Ethernet/IP and Modbus TCP) supported by both devices.
What is the maximum I/O capacity of the TSXH5744M?
- The TSXH5744M can support extensive I/O configurations, especially when paired with additional I/O modules like the TM3 or X80 series, allowing for flexible scaling of your automation system.
Is the TSXH5744M compatible with all Schneider Electric I/O modules?
- Yes, the TSXH5744M is compatible with most Schneider Electric I/O modules, including the TM3, X80, and Modicon Premium I/O modules, providing a flexible solution for system expansion.
