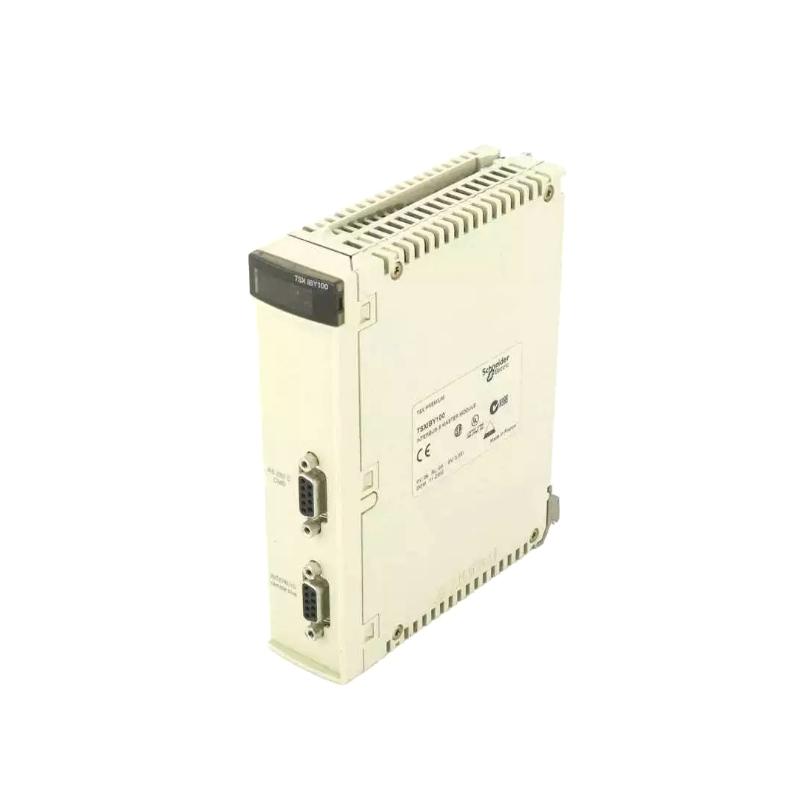

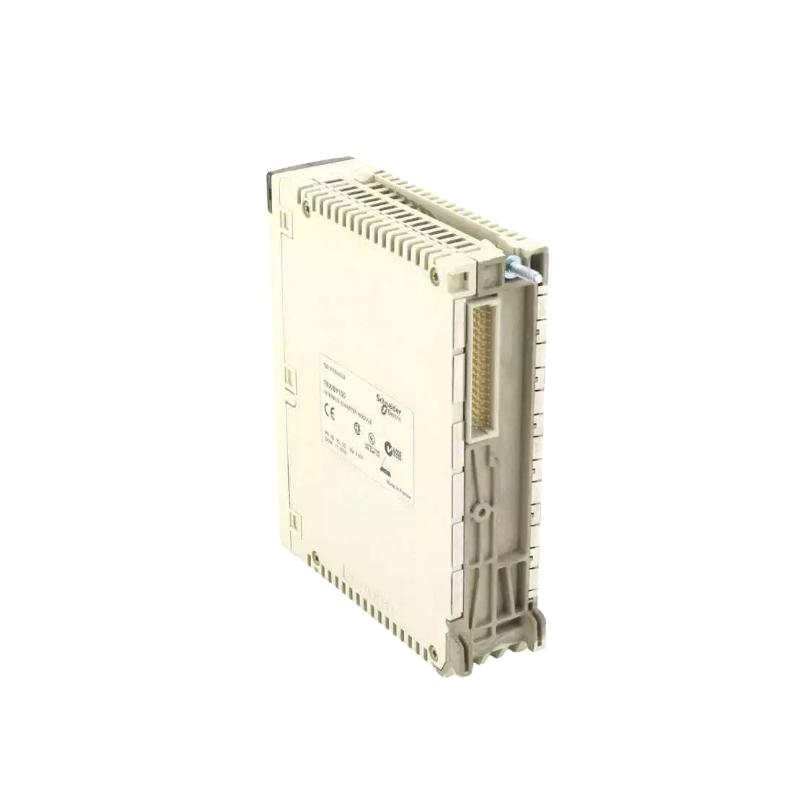

TSXIBY100-2 TSXIBY100-1 TSXIBY100-4

The Schneider TSXIBY100 is a digital input/output (I/O) module designed for use with Modicon Premium PLCs, offering reliable and efficient I/O functionality for industrial automation systems. This module is ideal for applications where high-speed digital signal processing is required, enabling seamless integration with various field devices such as sensors, switches, and relays. The TSXIBY100 supports 24V DC input/output signals, ensuring compatibility with a wide range of industrial equipment and making it a versatile solution for manufacturing, process control, and factory automation environments. With its compact design, easy installation, and high reliability, the TSXIBY100 is an essential module for expanding your Modicon Premium PLC system to meet the needs of modern industrial applications.

Technical Specifications

Specification	Details
Model	TSXIBY100
Module Type	Digital I/O Module
I/O Type	Digital Input/Output
Input Voltage	24V DC
Output Voltage	24V DC
Digital Inputs	16 Inputs
Digital Outputs	16 Outputs
Input Current	5 mA (per input)
Output Current	0.5 A (per output)
Operating Voltage	24V DC
Power Consumption	2W
Dimensions	4.65 in x 3.94 in x 2.05 in (118 mm x 100 mm x 52 mm)
Weight	0.3 kg (0.66 lbs)
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Certifications	UL, CE, RoHS

Recommended Related Models

To maximize the performance of your Modicon Premium PLC network, consider integrating the TSXIBY100 with these Schneider Electric products:

Modicon Premium TSXP574634 Processor: A high-performance processor that integrates seamlessly with the TSXIBY100 to enable efficient data processing and control.
Modicon TSXPSY1200 Power Supply: A reliable power supply designed to ensure stable and continuous operation of the TSXIBY100 and other Modicon Premium PLC components.
Modicon TM3 I/O Modules: Expand the I/O capabilities of your Modicon Premium PLC by adding TM3 I/O modules that complement the TSXIBY100 for flexible system scaling.

Popular Schneider Models

Modicon M580 Ethernet PLC: A modular PLC that offers advanced communication features and seamless integration with I/O modules like the TSXIBY100, ideal for large-scale industrial systems.
Modicon X80 I/O Modules: High-performance X80 I/O modules integrate with the TSXIBY100 for scalable and flexible control systems in distributed applications.
Magelis GTU HMI: A human-machine interface offering intuitive control and monitoring, perfectly paired with Modicon Premium PLCs for advanced automation systems.

Applications

The Schneider TSXIBY100 digital I/O module is designed to support a wide variety of industrial automation applications, including:

Manufacturing Automation: The TSXIBY100 is used to interface with digital sensors, switches, and relays in manufacturing processes, providing high-speed control and monitoring for production lines and machinery.
Process Control: Integrate the TSXIBY100 into process control systems to handle digital inputs and outputs from field devices such as actuators, valves, and sensors for real-time monitoring and control.
Factory Automation: The module is ideal for factory automation, allowing Modicon Premium PLCs to control machines, conveyors, and other automated equipment with digital inputs and outputs.
Building Automation: The TSXIBY100 can be used in building management systems to monitor and control digital inputs such as lighting, HVAC systems, and security devices.
Energy Management: Use the TSXIBY100 in energy management systems to monitor digital signals from energy meters, control circuits, and other devices used in industrial and utility applications.

Advantages

Reliable Digital I/O Performance: The TSXIBY100 provides 16 digital inputs and 16 digital outputs, ensuring efficient handling of high-speed signals from field devices.
Wide Voltage Range: The module supports 24V DC input/output signals, making it compatible with a broad range of industrial equipment and control systems.
Compact and Easy to Install: The module's compact size (118 mm x 100 mm x 52 mm) makes it easy to integrate into space-constrained panels or systems, without compromising performance.
Energy Efficient: With a power consumption of just 2W, the TSXIBY100 operates efficiently, contributing to lower energy costs in industrial automation systems.
Extended Temperature Range: The TSXIBY100 operates within a wide temperature range of 0°C to 55°C (32°F to 131°F), making it suitable for various industrial environments.
High-Quality Design: Certified for UL, CE, and RoHS, the TSXIBY100 meets international standards for safety, quality, and environmental impact.
Seamless Integration: The module integrates seamlessly with Modicon Premium PLCs and other Schneider Electric devices, ensuring a smooth and efficient automation setup.

Technical FAQs

What is the I/O capacity of the TSXIBY100?
- The TSXIBY100 has 16 digital inputs and 16 digital outputs, allowing for flexible control of devices like sensors, actuators, and relays.
What is the operating voltage of the TSXIBY100?
- The module operates at 24V DC, which is a standard voltage for industrial digital I/O systems.
What is the power consumption of the TSXIBY100?
- The TSXIBY100 consumes 2W of power, making it energy-efficient and suitable for various industrial applications.
What is the operating temperature range of the TSXIBY100?
- The TSXIBY100 operates within a temperature range of 0°C to 55°C (32°F to 131°F), which makes it suitable for most industrial environments.
Can the TSXIBY100 be used in outdoor applications?
- The TSXIBY100 is designed for indoor use. For outdoor applications, it should be placed in a protective enclosure to safeguard it from environmental conditions such as moisture and dust.
What certifications does the TSXIBY100 hold?
- The TSXIBY100 is certified for UL, CE, and RoHS, ensuring that it meets international safety, quality, and environmental standards.
How do I install the TSXIBY100 in my system?
- The TSXIBY100 can be easily integrated into your Modicon Premium PLC system by connecting it to the I/O base and configuring it through the Modicon programming software.
What type of digital signals can the TSXIBY100 handle?
- The module handles 24V DC digital inputs and outputs, making it compatible with a wide range of field devices like sensors, switches, and relays.
What is the weight of the TSXIBY100?
- The module weighs 0.3 kg (0.66 lbs), making it lightweight and easy to handle during installation.
Is the TSXIBY100 compatible with all Modicon Premium PLCs?
- Yes, the TSXIBY100 is designed to be fully compatible with Modicon Premium PLCs, allowing for seamless integration and expansion of I/O capabilities in your system.
