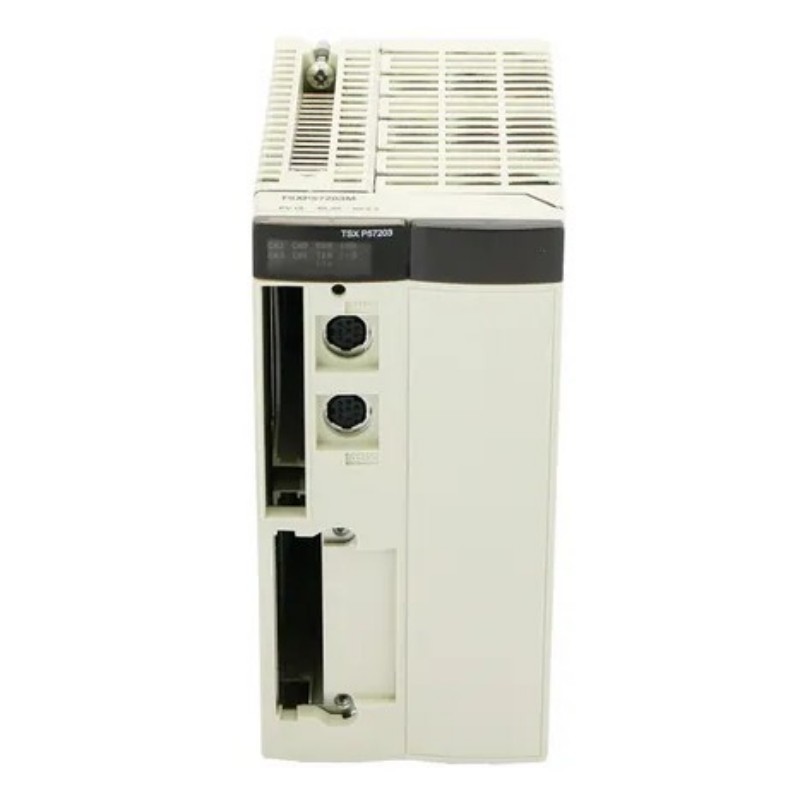

The Schneider TSXP57203M is a Modicon Premium processor designed to offer cutting-edge performance, flexibility, and scalability for complex industrial automation systems. With its high-speed processing, expandable memory, and multiple communication protocols, the TSXP57203M is an ideal solution for a wide range of applications, including production automation, process control, energy management, and building automation. This processor is built for high-demand environments, where real-time control, fast data processing, and seamless integration with other industrial systems are paramount. Whether you are optimizing manufacturing lines, controlling pumps and valves, or managing smart grids, the TSXP57203M provides the robust performance necessary to meet today’s industrial automation requirements.

Technical Specifications

Specification	Details
Model	TSXP57203M
Module Type	Modicon Premium Processor
Processor Type	High-performance Processor
Processor Speed	750 MHz
Memory	16 MB RAM (Expandable)
Communication Protocols	Ethernet/IP, Modbus TCP, FIPIO
I/O Capacity	Up to 8192 I/O points
Operating Voltage	24V DC
Power Consumption	18W
Dimensions	5.67 in x 4.13 in x 2.17 in (144 mm x 105 mm x 55 mm)
Weight	0.7 kg (1.54 lbs)
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Certifications	UL, CE, RoHS

Recommended Related Models

Maximize the functionality and scalability of your TSXP57203M by pairing it with the following Schneider Electric products:

Modicon TSXPSY1200 Power Supply: A reliable and stable power supply that supports the TSXP57203M and your entire Modicon Premium PLC system for smooth operation.
Modicon TM3 I/O Modules: These modular I/O modules integrate seamlessly with the TSXP57203M, enabling expansion of I/O capacity while offering flexibility in your control system.
Modicon X80 I/O Modules: Perfect for large-scale and complex automation systems, the X80 I/O modules expand I/O capabilities and work seamlessly with the TSXP57203M processor.

Popular Schneider Models

Modicon M580 Ethernet PLC: The M580 Ethernet PLC offers high-performance communication and modularity for large, distributed systems. It integrates easily with the TSXP57203M to provide advanced control capabilities.
Magelis GTU HMI: The Magelis GTU is an intuitive human-machine interface that allows for real-time monitoring and control of systems powered by the TSXP57203M, making it ideal for factory automation and process control applications.
Modicon X80 I/O Modules: The X80 I/O modules are used to expand I/O capacity, ideal for systems with larger I/O requirements. These modules can be easily added to complement the TSXP57203M in demanding automation applications.

Applications

The Schneider TSXP57203M processor is well-suited for a variety of industrial automation applications where reliable control, high-speed processing, and seamless integration are essential. Some key application areas include:

Industrial Automation: The TSXP57203M excels in controlling complex manufacturing systems, including robotic arms, assembly lines, and automated conveyor systems. It is ideal for industries such as automotive, electronics, and packaging.
Process Control: In industries like chemical, pharmaceutical, and food & beverage, the TSXP57203M enables precise control and monitoring of process variables, such as temperature, pressure, and flow.
Energy Management: The TSXP57203M is perfect for use in energy management systems, where it can integrate with smart meters, renewable energy sources, and power distribution systems to monitor and optimize energy usage.
Building Automation: The processor integrates with HVAC, lighting, and security systems, ensuring efficient operation and energy savings in commercial buildings and industrial facilities.
Water and Wastewater Treatment: In water treatment plants, the TSXP57203M controls critical processes like filtration, pumping, and water quality monitoring, ensuring safe and efficient water management.

Advantages

Fast Processor Speed: With a 750 MHz processor, the TSXP57203M offers rapid response and real-time data processing for applications that require precision and speed.
Large Expandable Memory: Equipped with 16 MB of RAM, which can be expanded, the TSXP57203M can handle extensive automation tasks, complex control processes, and a large number of I/O points.
Broad Communication Support: Supporting Ethernet/IP, Modbus TCP, and FIPIO, the TSXP57203M provides easy integration with a wide variety of industrial networks and devices, ensuring reliable and fast communication.
Compact Form Factor: The 144 mm x 105 mm x 55 mm dimensions make the TSXP57203M easy to install in tight spaces, offering flexibility for use in control panels and industrial environments with limited room.
Energy Efficient: The TSXP57203M operates with a low power consumption of just 18W, providing energy-efficient operation while still delivering high-performance control.
Scalable: The processor supports up to 8192 I/O points, offering scalability as your system needs grow. It can also be paired with additional I/O modules for expanded control capabilities.
Certified Reliability: With UL, CE, and RoHS certifications, the TSXP57203M meets international safety, quality, and environmental standards, ensuring that it can operate reliably in various industrial environments.
Wide Temperature Range: Operating in temperatures ranging from 0°C to 55°C (32°F to 131°F), the TSXP57203M is designed to perform in diverse and challenging industrial settings.

Technical FAQs

What is the processor speed of the TSXP57203M?
- The TSXP57203M is equipped with a 750 MHz processor, delivering fast and responsive control for real-time industrial applications.
What is the I/O capacity of the TSXP57203M?
- The TSXP57203M supports up to 8192 I/O points, allowing it to handle large-scale automation systems with extensive I/O requirements.
What communication protocols are supported by the TSXP57203M?
- The processor supports Ethernet/IP, Modbus TCP, and FIPIO, ensuring seamless integration with a wide variety of industrial devices and networks.
What is the power consumption of the TSXP57203M?
- The processor consumes only 18W, making it energy-efficient while maintaining high-performance capabilities.
What is the memory capacity of the TSXP57203M?
- The TSXP57203M comes with 16 MB of RAM, which can be expanded to accommodate more complex applications and additional I/O.
What is the operating temperature range of the TSXP57203M?
- The TSXP57203M operates in temperatures ranging from 0°C to 55°C (32°F to 131°F), making it suitable for most industrial environments.
Is the TSXP57203M compatible with all Modicon Premium PLCs?
- Yes, the TSXP57203M is fully compatible with the Modicon Premium PLC series, offering easy integration into existing systems.
What certifications does the TSXP57203M have?
- The TSXP57203M is certified for UL, CE, and RoHS, meeting global standards for safety, environmental, and quality compliance.
How do I install the TSXP57203M in my system?
- The TSXP57203M can be easily installed by connecting it to the Modicon Premium PLC and configuring it through Schneider Electric's programming software.
Can the TSXP57203M be used for process control applications?
- Yes, the TSXP57203M is well-suited for process control in industries like food & beverage, chemicals, and pharmaceuticals, offering precise and reliable real-time control.
