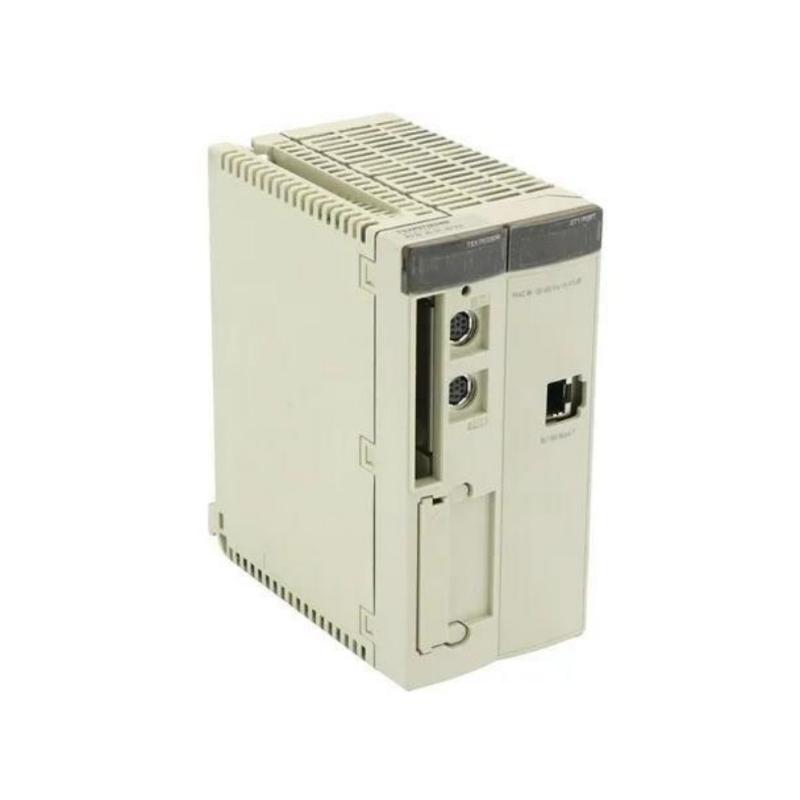

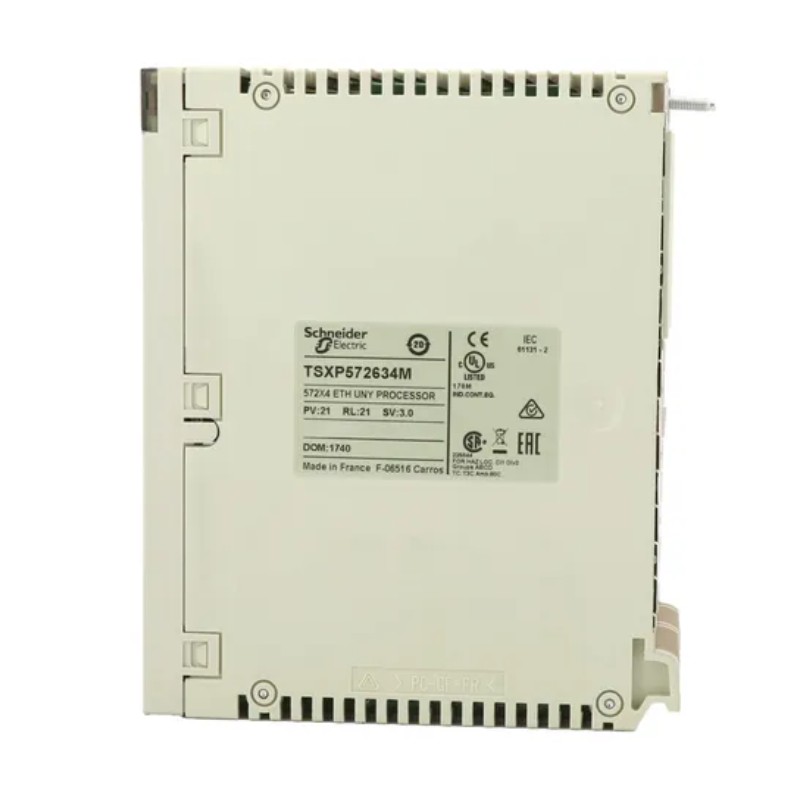

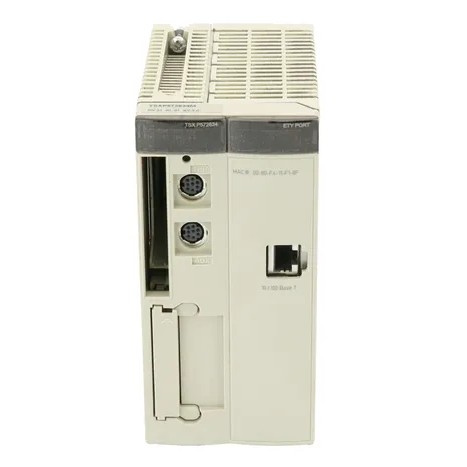

The Schneider TSXP572634M is an advanced Modicon Premium processor designed to handle the most demanding automation tasks with exceptional performance and flexibility. With its powerful processing capabilities, expanded memory, and robust support for multiple communication protocols, the TSXP572634M is ideal for complex and large-scale industrial automation applications. Whether you're managing production lines, process control systems, energy distribution networks, or building automation, this processor offers the reliability, scalability, and high-speed control required to optimize system performance. Industries like manufacturing, chemical, automotive, and energy can rely on the TSXP572634M for seamless integration and real-time performance.

Technical Specifications

Specification	Details
Model	TSXP572634M
Module Type	Modicon Premium Processor
Processor Type	High-performance Processor
Processor Speed	1.8 GHz
Memory	128 MB RAM (Expandable)
Communication Protocols	Ethernet/IP, Modbus TCP, FIPIO, Profibus DP
I/O Capacity	Up to 8192 I/O points
Operating Voltage	24V DC
Power Consumption	35W
Dimensions	5.67 in x 4.13 in x 2.17 in (144 mm x 105 mm x 55 mm)
Weight	0.88 kg (1.94 lbs)
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Certifications	UL, CE, RoHS

Recommended Related Models

To further enhance your automation capabilities, consider the following Schneider Electric products:

Modicon TSXPSY1200 Power Supply: A highly reliable power supply that ensures stable operation for your entire Modicon Premium PLC system, providing consistent power for demanding industrial applications.
Modicon TM3 I/O Modules: Flexible and modular I/O expansion options, allowing you to scale your system as required while maintaining high-speed performance and flexibility.
Modicon X80 I/O Modules: Advanced I/O modules for high-performance applications, providing the reliability and speed required for large-scale automation systems.

Popular Schneider Models

Modicon M580 Ethernet PLC: A next-generation Ethernet-based PLC that integrates seamlessly with the TSXP572634M for large-scale, distributed control systems.
Magelis GTU HMI: The Magelis GTU human-machine interface offers an intuitive touch screen for real-time monitoring and control, working seamlessly with the TSXP572634M for user-friendly operation.
Modicon X80 I/O Modules: These high-performance modules integrate well with the TSXP572634M, expanding your system’s I/O capabilities for large and complex automation systems.

Applications

The Schneider TSXP572634M processor is designed for a wide range of industrial applications where speed, scalability, and real-time performance are critical. Key applications include:

Industrial Automation: The TSXP572634M is well-suited for managing robotics, conveyor systems, and automated production lines across industries such as automotive, electronics, and consumer goods.
Process Control: The processor is highly effective in chemical, pharmaceutical, and food & beverage industries, where precision in controlling variables like temperature, pressure, and flow is essential.
Energy Management: The TSXP572634M enables smart grid management, energy distribution, and energy optimization, making it ideal for renewable energy, utilities, and industrial power systems.
Building Automation: This processor can manage HVAC systems, lighting, security, and other building operations, providing integrated control for both commercial and industrial facilities.
Water and Wastewater Treatment: In water treatment plants, the TSXP572634M supports tasks like pumping control, filtration, and water quality monitoring, helping to optimize operations and ensure water safety.

Advantages

High-Speed Processing: With a 1.8 GHz processor, the TSXP572634M provides superior processing speed, allowing for real-time data handling and immediate response to critical industrial events.
Large, Expandable Memory: Equipped with 128 MB of RAM (expandable), this processor can handle complex control tasks, large system logic, and multiple I/O operations, making it suitable for large-scale automation systems.
Advanced Communication Capabilities: The TSXP572634M supports multiple communication protocols, including Ethernet/IP, Modbus TCP, FIPIO, and Profibus DP, enabling easy integration with a variety of industrial devices and networks.
Compact and Efficient Design: Despite its high performance, the processor’s compact size (144 mm x 105 mm x 55 mm) allows it to fit into space-constrained environments while still delivering powerful control.
Energy-Efficient Operation: With a low power consumption of 35W, the TSXP572634M ensures efficient energy use while maintaining high processing capabilities for industrial automation.
Scalability: The processor supports up to 8192 I/O points, allowing you to scale your system easily as your automation needs evolve.
Global Certifications: The TSXP572634M is certified with UL, CE, and RoHS, ensuring it meets the highest international standards for safety, quality, and environmental responsibility.
Wide Operating Temperature Range: Designed to operate within a temperature range of 0°C to 55°C (32°F to 131°F), the TSXP572634M ensures reliable performance in harsh industrial conditions.

Technical FAQs

What is the processor speed of the TSXP572634M?
- The TSXP572634M is equipped with a high-speed 1.8 GHz processor, providing rapid data processing and control for complex industrial systems.
What is the I/O capacity of the TSXP572634M?
- The processor supports up to 8192 I/O points, making it suitable for large and complex automation systems with extensive I/O requirements.
What communication protocols does the TSXP572634M support?
- The TSXP572634M supports Ethernet/IP, Modbus TCP, FIPIO, and Profibus DP, allowing easy integration into a wide variety of industrial networks.
What is the power consumption of the TSXP572634M?
- The processor has a power consumption of 35W, balancing high performance with energy efficiency.
What is the memory capacity of the TSXP572634M?
- The TSXP572634M comes with 128 MB of RAM, which can be expanded as needed for more complex applications.
What is the operating temperature range of the TSXP572634M?
- The processor operates in temperatures ranging from 0°C to 55°C (32°F to 131°F), making it suitable for most industrial environments.
Is the TSXP572634M compatible with other Modicon Premium PLCs?
- Yes, the TSXP572634M integrates seamlessly with Modicon Premium PLCs, allowing for easy expansion and upgrading of your automation system.
What certifications does the TSXP572634M have?
- The TSXP572634M is certified with UL, CE, and RoHS, ensuring it meets international safety and environmental standards.
How do I install the TSXP572634M?
- Installation is straightforward. Simply integrate it into your Modicon Premium PLC system and configure it using Schneider Electric's programming software.
Can the TSXP572634M be used for process control applications?
- Absolutely. The TSXP572634M is ideal for process control tasks, providing reliable control of variables like temperature, pressure, and flow in industries such as chemical, food & beverage, and pharmaceuticals.
