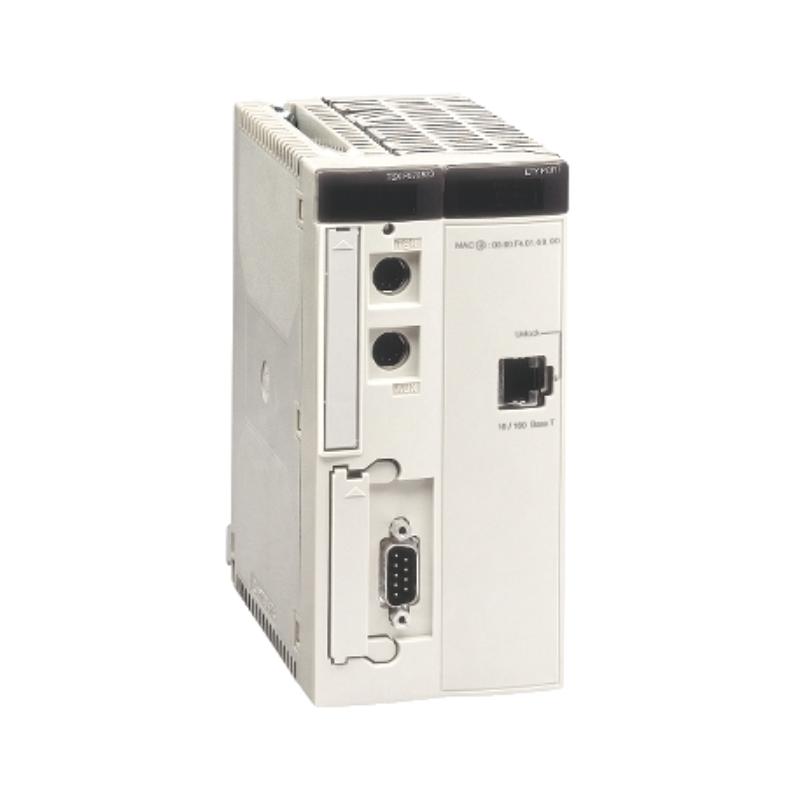

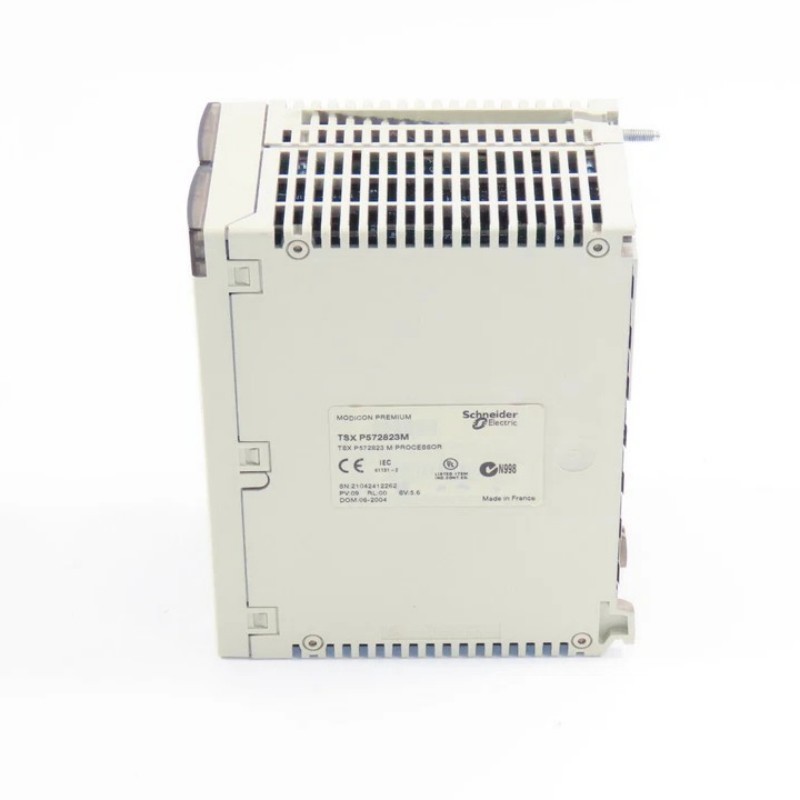

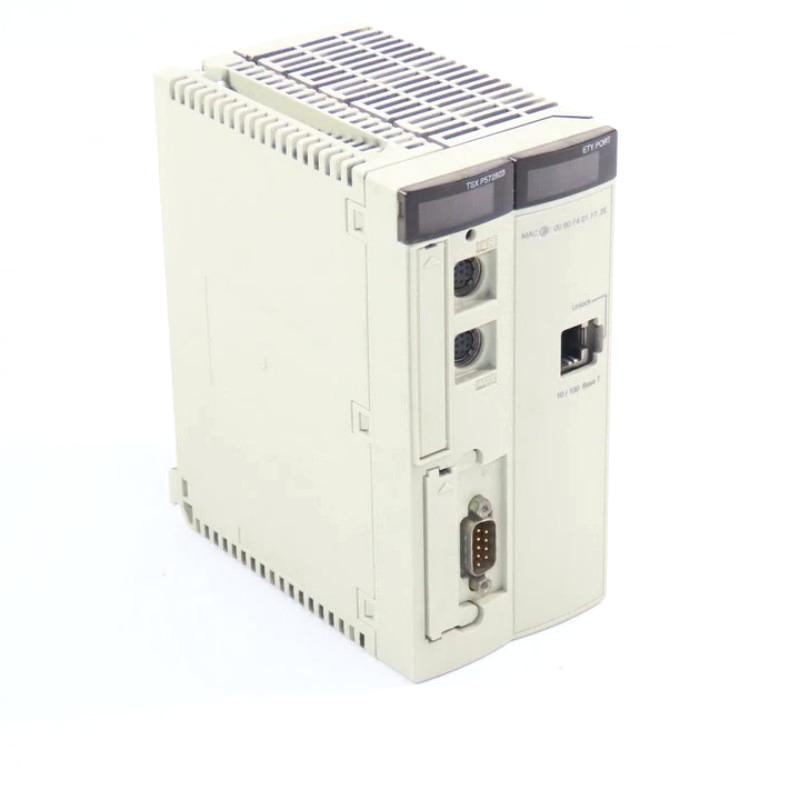

The Schneider TSXP572823M is a premium-grade Modicon processor designed for high-performance industrial automation applications. Equipped with advanced processing power, a large memory capacity, and versatile communication capabilities, the TSXP572823M is built to handle complex and large-scale automation tasks with ease. This processor is suitable for industries that require high-speed processing, real-time control, and extensive system integration. Whether you're managing automated production lines, process control systems, energy distribution, or building automation, the TSXP572823M offers the flexibility and reliability needed to ensure optimal system performance. With a combination of speed, scalability, and flexibility, this processor is ideal for industries such as manufacturing, chemical, energy, and automotive.

Technical Specifications

Specification	Details
Model	TSXP572823M
Module Type	Modicon Premium Processor
Processor Type	High-performance Processor
Processor Speed	2.0 GHz
Memory	256 MB RAM (Expandable)
Communication Protocols	Ethernet/IP, Modbus TCP, FIPIO, Profibus DP
I/O Capacity	Up to 8192 I/O points
Operating Voltage	24V DC
Power Consumption	40W
Dimensions	5.67 in x 4.13 in x 2.17 in (144 mm x 105 mm x 55 mm)
Weight	0.88 kg (1.94 lbs)
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Certifications	UL, CE, RoHS

Recommended Related Models

To enhance the capabilities of the TSXP572823M, the following Schneider Electric products are recommended for optimal system performance:

Modicon TSXPSY1200 Power Supply: This power supply offers consistent and reliable power to your Modicon Premium PLC system, ensuring stable operation for demanding industrial applications.
Modicon TM3 I/O Modules: Modular I/O options that allow for flexible system expansion while maintaining high-speed performance across your entire automation system.
Modicon X80 I/O Modules: These advanced I/O modules provide additional capacity for high-performance control and data acquisition in large-scale automation systems.

Popular Schneider Models

Modicon M580 Ethernet PLC: A high-performance, Ethernet-based PLC that seamlessly integrates with the TSXP572823M, providing robust connectivity for large-scale automation applications.
Magelis GTU HMI: A user-friendly human-machine interface that enables real-time monitoring and control of your automation processes, fully compatible with the TSXP572823M.
Modicon X80 I/O Modules: These modules integrate well with the TSXP572823M, offering enhanced I/O capacity for large systems and complex control tasks.

Applications

The Schneider TSXP572823M processor is suitable for a wide range of industrial applications that demand real-time control, scalability, and integration. Key use cases include:

Industrial Automation: The TSXP572823M is ideal for controlling robotics, automated production lines, conveyor systems, and other automation processes in industries such as automotive, electronics, and consumer goods.
Process Control: In chemical, pharmaceutical, and food & beverage industries, the processor efficiently controls processes such as temperature, pressure, flow, and batch management.
Energy Management: The TSXP572823M supports smart grid systems, power distribution, and energy optimization in industries like renewable energy, utilities, and industrial power management.
Building Automation: This processor is ideal for managing HVAC systems, lighting, security, and safety systems in both commercial and industrial buildings.
Water and Wastewater Treatment: In water treatment plants, the TSXP572823M ensures reliable operation of critical processes such as pumping, filtration, and water quality monitoring.

Advantages

Enhanced Processing Speed: With a 2.0 GHz processor, the TSXP572823M delivers superior control performance, processing data quickly and accurately for real-time decision-making and control.
Expanded Memory: With 256 MB of RAM (expandable), the TSXP572823M can manage more complex control tasks, large system logic, and handle large I/O operations.
Multiple Communication Protocols: The processor supports Ethernet/IP, Modbus TCP, FIPIO, and Profibus DP, offering seamless integration with a wide variety of devices and networks.
Compact Design: Despite its powerful processing capabilities, the processor maintains a compact footprint (144 mm x 105 mm x 55 mm), making it suitable for systems with limited space.
Energy-Efficient Operation: The TSXP572823M operates with a low power consumption of 40W, ensuring efficient energy use while delivering high-speed processing for industrial applications.
Scalability for Large Systems: With support for up to 8192 I/O points, the processor offers scalability, enabling easy expansion of your automation system as your needs grow.
Certified for Global Standards: The TSXP572823M complies with UL, CE, and RoHS certifications, ensuring that it meets global standards for safety, quality, and environmental impact.
Wide Temperature Range: Operating within a temperature range of 0°C to 55°C (32°F to 131°F), the TSXP572823M is reliable in harsh industrial environments.

Technical FAQs

What is the processor speed of the TSXP572823M?
- The TSXP572823M is powered by a 2.0 GHz processor, offering fast data processing and real-time performance.
What is the I/O capacity of the TSXP572823M?
- The processor supports up to 8192 I/O points, making it ideal for large-scale and complex automation systems.
What communication protocols does the TSXP572823M support?
- The processor supports Ethernet/IP, Modbus TCP, FIPIO, and Profibus DP, allowing easy integration with a wide range of industrial devices and systems.
What is the power consumption of the TSXP572823M?
- The TSXP572823M operates with a power consumption of 40W, balancing energy efficiency and high performance.
What is the memory capacity of the TSXP572823M?
- The TSXP572823M comes with 256 MB of RAM, which can be expanded for more complex applications and large systems.
What is the operating temperature range of the TSXP572823M?
- The TSXP572823M operates in a temperature range of 0°C to 55°C (32°F to 131°F), making it suitable for most industrial environments.
Is the TSXP572823M compatible with other Modicon Premium PLCs?
- Yes, the TSXP572823M integrates seamlessly with other Modicon Premium PLCs, providing flexibility for expanding your automation system.
What certifications does the TSXP572823M have?
- The TSXP572823M is certified with UL, CE, and RoHS, ensuring it meets global standards for safety, quality, and environmental compliance.
How do I install the TSXP572823M?
- Installation is easy: simply integrate it into your Modicon Premium PLC system and configure it using Schneider Electric’s programming software.
Can the TSXP572823M be used for process control applications?
- Absolutely. The TSXP572823M is perfect for process control applications, providing reliable control of critical parameters like temperature, pressure, and flow in industries such as chemical, food & beverage, and pharmaceuticals.
