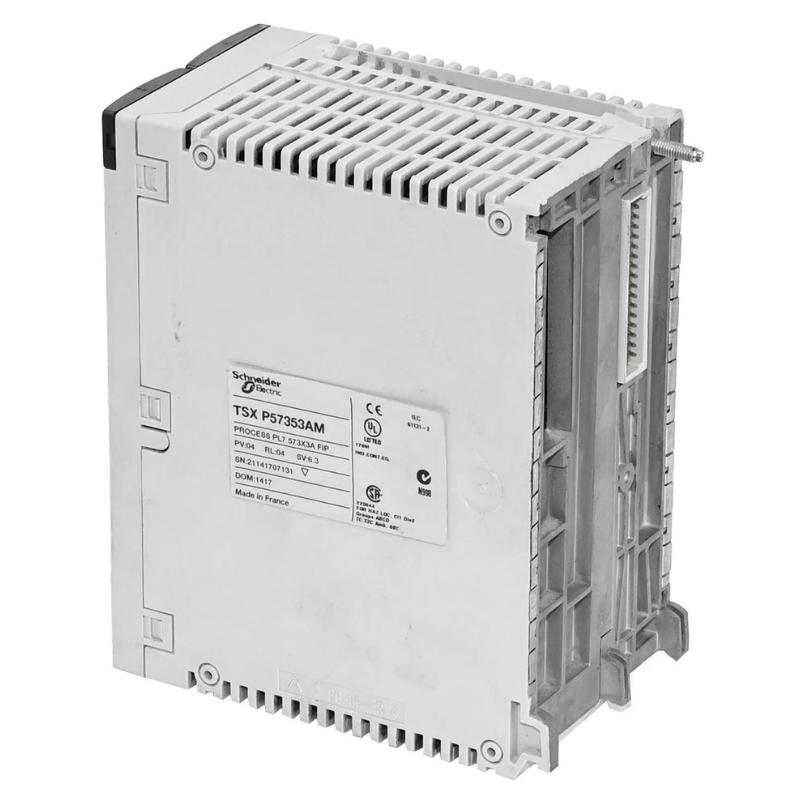

The Schneider TSXP57353AM is a high-performance Modicon Premium processor engineered for demanding industrial automation applications. Designed to offer robust processing power, vast memory, and versatile communication capabilities, this processor is perfectly suited for complex control tasks across diverse industries. Whether you’re managing manufacturing operations, process control, building automation, or energy distribution, the TSXP57353AM delivers exceptional performance and scalability. With its advanced features, it is particularly well-suited for industries such as automotive, chemical, oil & gas, and energy, offering the flexibility needed for both small and large-scale automation systems.

Technical Specifications

Specification	Details
Model	TSXP57353AM
Module Type	Modicon Premium Processor
Processor Type	High-performance Processor
Processor Speed	2.5 GHz
Memory	512 MB RAM (Expandable)
Communication Protocols	Ethernet/IP, Modbus TCP, FIPIO, Profibus DP, CANopen
I/O Capacity	Up to 8192 I/O points
Operating Voltage	24V DC
Power Consumption	55W
Dimensions	5.67 in x 4.13 in x 2.17 in (144 mm x 105 mm x 55 mm)
Weight	1.05 kg (2.31 lbs)
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Certifications	UL, CE, RoHS

Recommended Related Models

For an optimized system, consider the following Schneider Electric products that pair well with the TSXP57353AM processor:

Modicon TSXPSY1200 Power Supply: Provides reliable and efficient power to your Modicon Premium PLC, ensuring stable operation under demanding industrial conditions.
Modicon TM3 I/O Modules: Expand your system's I/O capacity with these flexible and modular I/O expansion modules, designed for high-speed applications and ease of integration with the TSXP57353AM.
Modicon X80 I/O Modules: High-performance I/O modules that deliver fast, reliable control and data acquisition for complex and large-scale automation systems.

Popular Schneider Models

Modicon M580 Ethernet PLC: A next-generation Ethernet PLC that integrates seamlessly with the TSXP57353AM for fast, high-speed processing and control in distributed systems.
Magelis GTU HMI: An intuitive human-machine interface (HMI) that enables easy control and monitoring of your automation processes, providing an ergonomic touchscreen interface.
Modicon X80 I/O Modules: These advanced modules extend the I/O capacity and capabilities of your system, ensuring it meets the demands of large-scale industrial applications.

Applications

The Schneider TSXP57353AM is ideal for a variety of industrial applications that require fast processing, reliable real-time control, and extensive integration options. Key application areas include:

Industrial Automation: Perfect for applications such as robotics, conveyor systems, automated production lines, and assembly processes in industries like automotive, electronics, and consumer goods.
Process Control: The processor excels in industries like chemical, pharmaceutical, and food & beverage, where precise control of parameters like temperature, pressure, and flow is essential.
Energy Management: The TSXP57353AM is well-suited for power distribution, smart grid applications, and energy optimization in sectors like utilities, renewable energy, and industrial power systems.
Building Automation: This processor is ideal for controlling HVAC systems, lighting, security, and safety systems in both commercial and industrial environments.
Water and Wastewater Treatment: The processor manages critical operations such as pumping systems, filtration processes, and water quality monitoring in water treatment plants, helping to ensure compliance with environmental regulations.

Advantages

Blazing-Fast Processing: Powered by a 2.5 GHz processor, the TSXP57353AM handles complex control tasks in real-time, making it ideal for high-speed industrial applications.
Generous Memory: With 512 MB of RAM (expandable), the processor can manage large applications, extensive I/O systems, and complex logic with ease.
Multi-Protocol Support: The TSXP57353AM supports multiple communication protocols, including Ethernet/IP, Modbus TCP, FIPIO, Profibus DP, and CANopen, ensuring seamless integration into a variety of industrial networks.
Compact Design: Despite its robust capabilities, the processor retains a compact size (144 mm x 105 mm x 55 mm), making it suitable for applications with space limitations.
Energy Efficient: With a power consumption of 55W, the TSXP57353AM is energy-efficient, helping reduce operational costs while providing high-performance control.
Scalability: Supporting up to 8192 I/O points, this processor can scale with your system’s growth, making it an ideal choice for large and expanding automation systems.
Global Certifications: The TSXP57353AM is certified with UL, CE, and RoHS, ensuring it meets global standards for safety, environmental impact, and quality.
Wide Temperature Range: The processor operates in a temperature range of 0°C to 55°C (32°F to 131°F), making it suitable for a wide range of industrial environments, including extreme conditions.

Technical FAQs

What is the processor speed of the TSXP57353AM?
- The TSXP57353AM features a 2.5 GHz processor, ensuring fast data processing and real-time performance.
What is the I/O capacity of the TSXP57353AM?
- The processor supports up to 8192 I/O points, ideal for large-scale and complex automation systems.
What communication protocols does the TSXP57353AM support?
- The processor supports Ethernet/IP, Modbus TCP, FIPIO, Profibus DP, and CANopen, providing flexible integration into various industrial networks.
What is the power consumption of the TSXP57353AM?
- The TSXP57353AM has a power consumption of 55W, balancing energy efficiency with high-performance operation.
What is the memory capacity of the TSXP57353AM?
- The processor is equipped with 512 MB of RAM, which can be expanded to support more demanding applications.
What is the operating temperature range of the TSXP57353AM?
- The processor operates within a temperature range of 0°C to 55°C (32°F to 131°F), ensuring it functions reliably in typical industrial environments.
Is the TSXP57353AM compatible with other Modicon Premium PLCs?
- Yes, the TSXP57353AM integrates seamlessly with other Modicon Premium PLCs, offering scalability for larger, more complex systems.
What certifications does the TSXP57353AM have?
- The TSXP57353AM is certified with UL, CE, and RoHS, ensuring compliance with global safety, environmental, and quality standards.
How do I install the TSXP57353AM?
- Installation is straightforward. Simply integrate the processor into your Modicon Premium PLC system and configure it using Schneider Electric's programming software.
Can the TSXP57353AM be used for process control?
- Yes, the TSXP57353AM is ideal for process control applications, providing precise management of variables such as temperature, pressure, flow, and batch processes in industries like chemical, food & beverage, and pharmaceuticals.
