Introduction

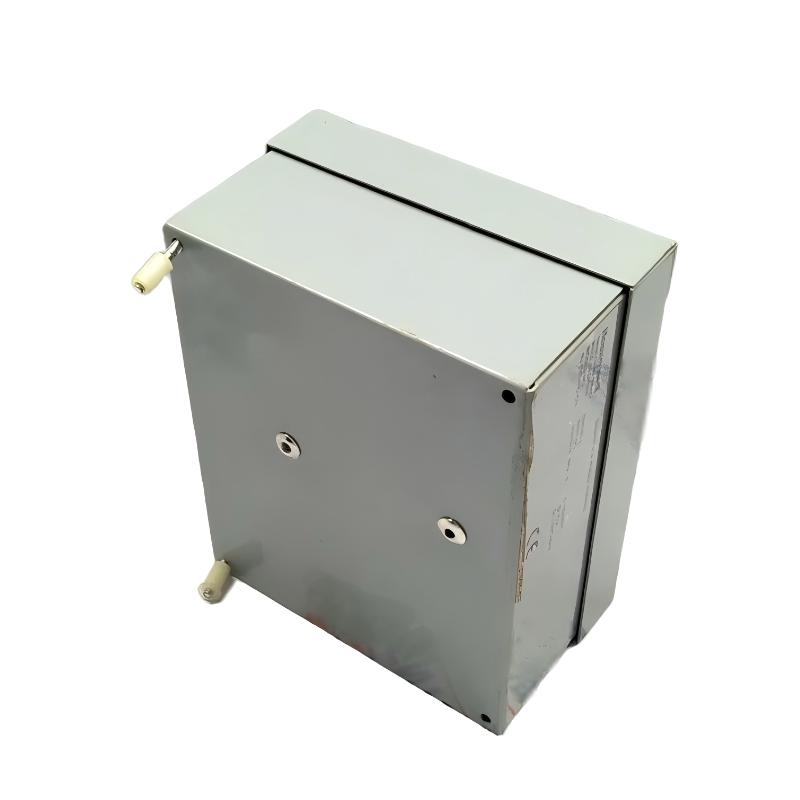

The Honeywell 8C-BXCBIO Circuit Breaker Box Assembly provides reliable overcurrent protection in a compact, industrial-grade package. Its modular design and robust construction make it suitable for control panels, automation systems, and factory electrical installations. With easy installation and maintenance, this assembly ensures safe and uninterrupted operation of electrical circuits.

Technical Specifications

Parameter	Details
Model	8C-BXCBIO
Type	Circuit Breaker Box Assembly
Dimensions	150 × 120 × 80 mm
Weight	1.2 kg
Rated Voltage	Up to 600 V AC
Rated Current	Up to 63 A per circuit
Construction	Insulating plastic with metal reinforcement
Mounting	Panel mount (DIN rail optional)
Protection	Overcurrent and short-circuit via installed breakers
Grounding	Included terminals
Applications	Control panels, automation, HVAC, industrial distribution

Recommended Related Models

Model	Description
8C-BXCBOA	Breaker box with extra slots
8C-BXCBOB	Compact breaker box for small panels
8C-BXCBOC	Industrial-grade breaker assembly
8C-BXCBOE	Modular box with DIN rail adapter
8C-BXCBOF	High-current breaker assembly
8C-BXCBOP	Panel-mount breaker box
8C-BXCBOR	Redundant breaker assembly
8C-BXCBOT	Multi-circuit breaker box
8C-BXCBOV	Universal breaker assembly
8C-BXCBOW	Control panel breaker box

Popular Related Models

Model	Description
8C-BXCBIA	Standard breaker box assembly
8C-BXCBIB	Compact automation breaker box
8C-BXCBIC	Industrial circuit breaker assembly
8C-BXCVID	Modular breaker box
8C-BXCVID-01	Panel mount breaker assembly
8C-BXCBIM	High-current breaker box
8C-BXCBOJ	DIN rail compatible assembly
8C-BXCBIP	Multi-circuit breaker box
8C-BXCBIR	Redundant breaker box
8C-BXCBIT	Control panel breaker assembly

Applications

The Honeywell 8C-BXCBIO Circuit Breaker Box Assembly is designed for protecting electrical circuits in industrial and commercial environments. It is commonly used in control panels, automation systems, HVAC equipment, and factory distribution boards. This assembly safeguards sensitive equipment from overloads and short circuits, ensuring stable operation of machinery and electrical systems.

Advantages

Reliable overcurrent protection for critical equipment and circuits
Compact design suitable for tight spaces in control panels
Durable construction for industrial-grade performance
Simplified wiring and maintenance with clearly labeled terminals
Versatile compatibility with standard and Honeywell circuit breakers

FAQs

Which types of circuit breakers can be installed in this box?
Compatible with standard Honeywell miniature and industrial circuit breakers.
Is the box suitable for outdoor installations?
Primarily designed for indoor use; outdoor use requires additional protective housing.
What is the maximum voltage rating?
Rated up to 600 V AC depending on installed breakers.
What is the maximum current rating?
Supports circuit breakers up to 63 A per circuit.
Does it provide short-circuit protection?
Protection is provided by the installed circuit breakers.
What materials are used in the construction?
High-quality insulating plastic with reinforced metal components.
Can it be mounted on a panel or DIN rail?
Panel mounting is standard; some configurations support DIN rail adapters.
Is grounding included?
Yes, dedicated grounding terminals are provided.
Can the box be expanded with additional breakers?
Yes, modular design allows for additional breaker slots.
What environmental conditions are recommended?
Operating temperature: 0°C to 50°C; avoid high humidity and corrosive atmospheres.
