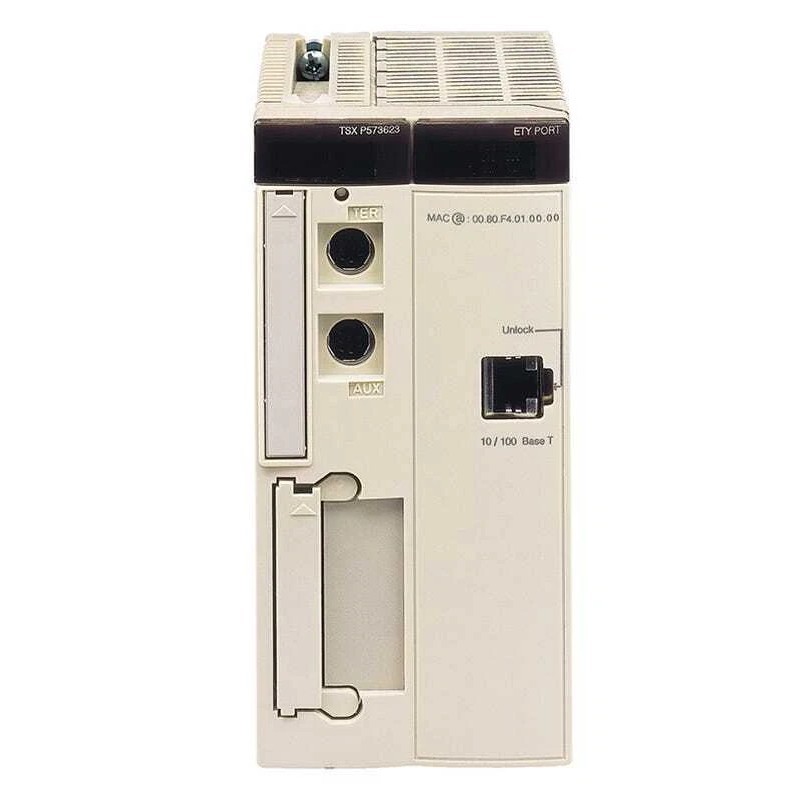

The Schneider TSXP573623 is a high-performance Modicon Premium processor designed to handle the most complex industrial automation tasks with ease. Offering fast processing speeds, extensive memory, and multiple communication protocols, the TSXP573623 is the ideal choice for industries that require real-time control, large-scale integration, and maximum reliability. It is perfectly suited for demanding applications in industries such as automotive, chemical, oil & gas, energy, and building automation, where high levels of processing power and flexibility are required. This processor integrates seamlessly into Modicon Premium PLC systems, offering exceptional performance and scalability for both small and large automation environments.

Technical Specifications

Specification	Details
Model	TSXP573623
Module Type	Modicon Premium Processor
Processor Type	High-performance Processor
Processor Speed	2.5 GHz
Memory	512 MB RAM (Expandable)
Communication Protocols	Ethernet/IP, Modbus TCP, FIPIO, Profibus DP, CANopen
I/O Capacity	Up to 8192 I/O points
Operating Voltage	24V DC
Power Consumption	55W
Dimensions	5.67 in x 4.13 in x 2.17 in (144 mm x 105 mm x 55 mm)
Weight	1.05 kg (2.31 lbs)
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Certifications	UL, CE, RoHS

Recommended Related Models

To enhance the capabilities of your TSXP573623 processor, Schneider Electric offers a range of complementary products that can further optimize your automation system:

Modicon TSXPSY1200 Power Supply: A highly reliable power supply to ensure stable and uninterrupted power for your Modicon Premium PLC system, even under high-load conditions.
Modicon TM3 I/O Modules: These modular I/O modules provide flexible and scalable expansion options, allowing you to easily adjust your system’s I/O capacity as needed.
Modicon X80 I/O Modules: High-performance I/O modules that integrate perfectly with the TSXP573623, providing fast, reliable control and data acquisition for large and complex automation tasks.

Popular Schneider Models

Modicon M580 Ethernet PLC: An Ethernet-based PLC designed to offer high-speed communication and control in large, distributed automation systems, making it a perfect complement to the TSXP573623.
Magelis GTU HMI: A human-machine interface (HMI) that provides operators with an intuitive touchscreen interface for monitoring and controlling automation systems in real-time.
Modicon X80 I/O Modules: These advanced I/O modules expand your system’s capability to manage larger and more intricate control operations, ensuring high-speed performance for industrial applications.

Applications

The Schneider TSXP573623 processor is designed to provide real-time control and processing for a wide range of industrial applications. Its high processing speed, scalability, and versatile communication options make it ideal for:

Industrial Automation: The TSXP573623 is widely used in robotics, conveyor systems, automated production lines, and assembly systems within industries like automotive, electronics, and consumer goods.
Process Control: Perfect for managing critical processes in industries such as chemical, pharmaceutical, and food & beverage, where precise control of temperature, pressure, flow, and batch processing is essential.
Energy Management: The TSXP573623 is ideal for applications in smart grids, power distribution, and energy optimization, commonly used in utilities, renewable energy, and industrial power systems.
Building Automation: In commercial and industrial buildings, this processor efficiently controls HVAC systems, lighting, security, and safety, ensuring optimal energy use and building efficiency.
Water Treatment: The processor supports pumping systems, filtration processes, and water quality monitoring in water treatment plants, improving operational efficiency and compliance with environmental standards.

Advantages

Fast Processing Power: The TSXP573623 is equipped with a 2.5 GHz processor, enabling quick data processing and real-time control for even the most demanding automation systems.
Scalable Memory: With 512 MB of RAM (expandable), this processor can handle complex applications and large control systems without compromising performance.
Versatile Communication: The TSXP573623 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, FIPIO, Profibus DP, and CANopen, allowing for easy integration with various industrial networks.
Compact and Efficient: Despite its advanced capabilities, the TSXP573623 has a compact design (144 mm x 105 mm x 55 mm), making it ideal for installations with space limitations.
Energy Efficient: Operating with just 50W of power consumption, the TSXP573623 ensures energy-efficient performance, reducing operational costs while providing high-speed control.
Scalable I/O: The processor supports up to 8192 I/O points, making it highly scalable and capable of managing large-scale automation systems.
Global Certifications: Certified with UL, CE, and RoHS, the TSXP573623 meets global standards for safety, environmental impact, and quality.
Wide Temperature Range: This processor is designed to operate in temperatures ranging from 0°C to 55°C (32°F to 131°F), ensuring reliable performance in diverse industrial environments.

Technical FAQs

What is the processor speed of the TSXP573623?
- The TSXP573623 is equipped with a 2.5 GHz processor, providing high-speed processing for real-time control in complex applications.
What is the I/O capacity of the TSXP573623?
- The processor supports up to 8192 I/O points, making it ideal for managing large and complex automation systems.
What communication protocols does the TSXP573623 support?
- The TSXP573623 supports Ethernet/IP, Modbus TCP, FIPIO, Profibus DP, and CANopen, enabling seamless integration with a wide variety of industrial devices and networks.
What is the power consumption of the TSXP573623?
- The TSXP573623 operates with a power consumption of 55W, offering a balance of high performance and energy efficiency.
What is the memory capacity of the TSXP573623?
- The processor has 512 MB of RAM, which is expandable to accommodate more complex applications.
What is the operating temperature range of the TSXP573623?
- The processor operates effectively within a temperature range of 0°C to 55°C (32°F to 131°F).
Is the TSXP573623 compatible with other Modicon Premium PLCs?
- Yes, it integrates easily with other Modicon Premium PLCs, providing flexibility and scalability for large and growing systems.
What certifications does the TSXP573623 have?
- The processor is certified with UL, CE, and RoHS, ensuring compliance with international safety, environmental, and quality standards.
How do I install the TSXP573623?
- Installation is straightforward. Simply integrate the processor into your Modicon Premium PLC system and configure it using Schneider Electric’s programming software.
Can the TSXP573623 be used for process control?
- Yes, the TSXP573623 is ideal for process control applications, providing precise management of temperature, pressure, flow, and other critical parameters in industries like chemical, food & beverage, and pharmaceuticals.
