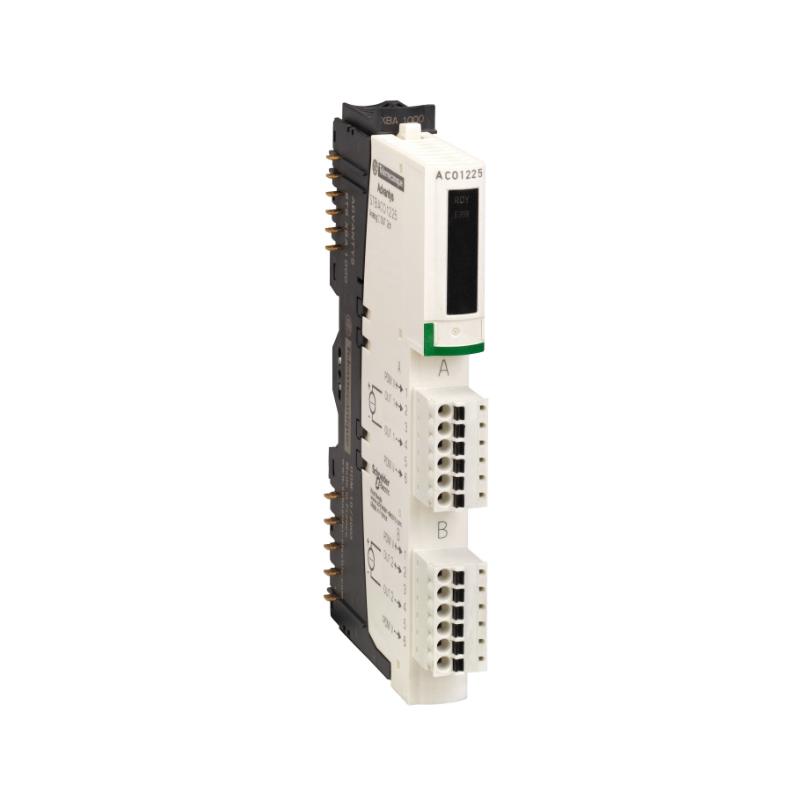

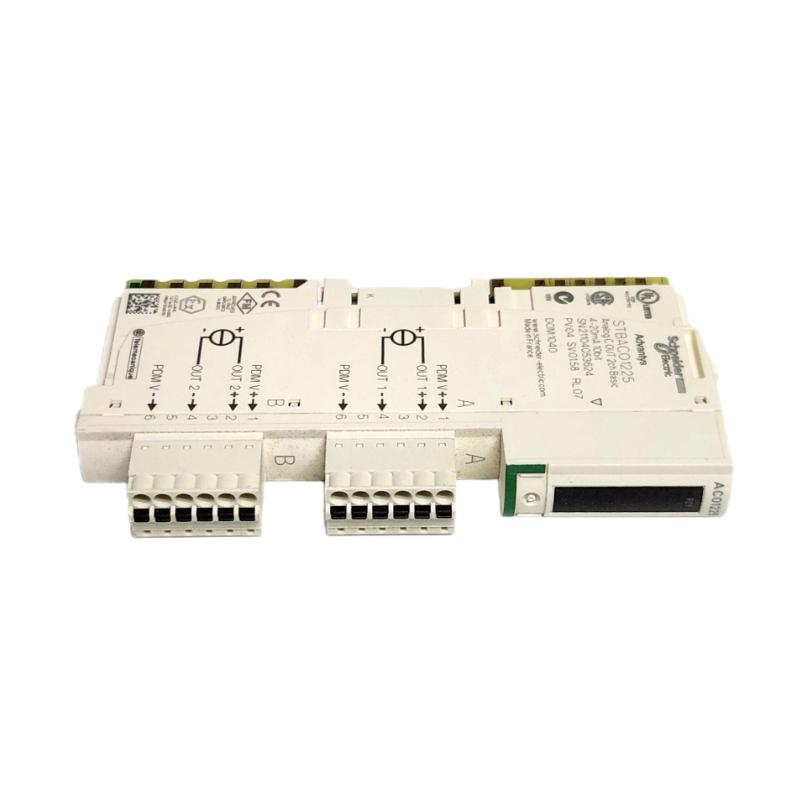

The Schneider STBACO1225 is a Modicon I/O module designed to provide flexible, efficient, and reliable I/O control for distributed automation systems. As part of the Modicon STB range, it offers advanced capabilities in data acquisition, real-time control, and system integration, making it ideal for industries such as automotive, food & beverage, oil & gas, chemical processing, and manufacturing. This module supports a wide variety of input and output configurations, enabling efficient automation management and high-speed communication in complex industrial environments. The STBACO1225 ensures seamless integration with other Schneider Electric products, enhancing overall system performance.

Technical Specifications

Specification	Details
Model	STBACO1225
Module Type	I/O Module
Input/Output Type	Analog Inputs/Outputs
Number of Channels	4 AI (Analog Inputs), 4 AO (Analog Outputs)
Input/Output Range	0-10V, 4-20mA (Configurable)
Input/Output Resolution	12-bit (Analog Inputs), 12-bit (Analog Outputs)
Communication Protocols	Modbus TCP, Modbus RTU
Operating Voltage	24V DC
Power Consumption	3.5W
Dimensions	5.9 in x 4.2 in x 2.8 in (150 mm x 107 mm x 71 mm)
Weight	0.45 kg (0.99 lbs)
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Certifications	UL, CE, RoHS

Recommended Related Models

For enhanced functionality and seamless system integration, consider pairing the STBACO1225 with the following Schneider Electric products:

Modicon STBPSY1200 Power Supply: A reliable power supply module for the Modicon STB system, ensuring stable voltage and power for I/O modules like the STBACO1225.
Modicon STB I/O Modules: A wide range of STB I/O modules designed to integrate with the STBACO1225 for additional digital and analog I/O capacity in larger automation systems.
Modicon X80 I/O Modules: These I/O modules offer high-speed data acquisition and control capabilities, ideal for scaling your system and increasing the number of inputs and outputs.

Popular Schneider Models

Modicon M580 Ethernet PLC: A high-performance Ethernet-based PLC, ideal for larger distributed control systems, integrating seamlessly with the STBACO1225 for greater flexibility in large-scale applications.
Magelis GTU HMI: A human-machine interface (HMI) with an intuitive touchscreen for efficient control and monitoring of your automation systems, providing a seamless interface with Modicon STB modules.
Modicon TM3 I/O Modules: These modular I/O modules are perfect for digital I/O applications and work in conjunction with the STBACO1225 for a comprehensive automation solution.

Applications

The Schneider STBACO1225 is an ideal solution for industries that require flexible, high-performance I/O control, including:

Industrial Automation: Manage robotics, assembly lines, conveyor systems, and packaging machinery in industries such as automotive, electronics, and consumer goods.
Process Control: Perfect for controlling temperature, pressure, flow, and level in industries like chemical, pharmaceutical, and food & beverage.
Building Automation: Utilize in HVAC, lighting, security, and energy efficiency systems in commercial buildings, optimizing comfort and reducing energy consumption.
Energy Management: The STBACO1225 is effective for monitoring and controlling energy usage, ensuring efficiency in applications such as renewable energy systems and smart grids.
Water and Wastewater Treatment: Manage pumping systems, filtration, and water quality monitoring systems in water treatment plants for improved compliance and operational efficiency.

Advantages

Flexible Analog Input/Output: With 4 AI channels and 4 AO channels, the STBACO1225 supports a variety of industrial sensors and actuators, offering versatile control for complex applications.
High-Resolution Control: The module offers 12-bit resolution for both analog inputs and outputs, ensuring precise control and accurate data acquisition for critical processes.
Multiple Communication Protocols: The Modbus TCP and Modbus RTU protocols ensure easy integration into existing network architectures and seamless communication between devices and control systems.
Compact Design: The STBACO1225 is designed for easy installation in tight spaces, with dimensions of just 150 mm x 107 mm x 71 mm.
Wide Operating Temperature Range: With an operating temperature range of -20°C to 60°C, the module is suitable for use in a wide variety of industrial environments.
Energy Efficient: Consuming only 3.5W of power, the STBACO1225 is an energy-efficient solution that reduces operational costs while maintaining high performance.
Certified for Safety: The module is certified with UL, CE, and RoHS, ensuring it meets the highest standards for safety, environmental impact, and product quality.
Durable and Reliable: With its wide storage temperature range of -40°C to 85°C, the STBACO1225 is built for long-term performance in challenging industrial conditions.

Technical FAQs

What is the input/output configuration of the STBACO1225?
- The STBACO1225 has 4 analog input channels (AI) and 4 analog output channels (AO), supporting 0-10V and 4-20mA signal ranges.
What is the resolution of the analog inputs and outputs?
- The module provides 12-bit resolution for both analog inputs and outputs, ensuring precise control and measurement.
What communication protocols are supported by the STBACO1225?
- The STBACO1225 supports Modbus TCP and Modbus RTU, enabling it to integrate seamlessly with a variety of industrial systems and devices.
What is the power consumption of the STBACO1225?
- The STBACO1225 has a low power consumption of 3.5W, making it energy-efficient and cost-effective in long-term operation.
What is the operating temperature range of the STBACO1225?
- The STBACO1225 operates within a temperature range of -20°C to 60°C, suitable for a wide variety of industrial environments.
Is the STBACO1225 compatible with other Modicon I/O modules?
- Yes, the STBACO1225 is part of the Modicon STB series and can easily integrate with other Modicon STB I/O modules, enabling scalable and flexible automation systems.
What certifications does the STBACO1225 have?
- The STBACO1225 is certified with UL, CE, and RoHS, ensuring it meets international safety and environmental standards.
How do I install the STBACO1225?
- The STBACO1225 can be easily installed in your automation system by mounting it in the Modicon STB rack system and configuring it through Schneider Electric’s programming software.
Can I use the STBACO1225 for temperature control applications?
- Yes, the STBACO1225 is ideal for applications that require precise temperature control through integration with temperature sensors and actuators.
What are the typical applications for the STBACO1225 module?
- The STBACO1225 is widely used in industrial automation, process control, energy management, building automation, and water treatment applications where precise analog control is required.
