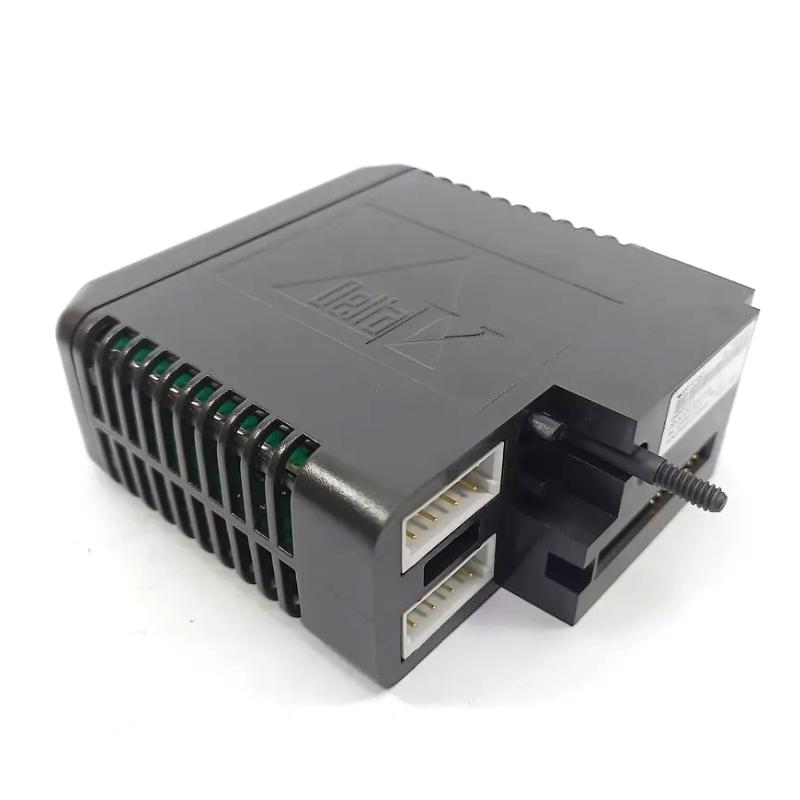

Emerson KJ3001X1-BG1 - Advanced Analog Input Module for Precision Process Control

Applications

The Emerson KJ3001X1-BG1 is engineered for high-precision analog signal processing and is ideal for a wide range of applications, including:

• Chemical and Pharmaceutical Industries: Monitor critical variables like pressure, temperature, and level in chemical reactors, storage tanks, and other key equipment, ensuring tight process control and regulatory compliance.

• Oil and Gas: Used for monitoring flow meters, pressure gauges, and temperature sensors in upstream and downstream applications, the module helps optimize production processes and enhance safety.

• Power Generation: Monitor key parameters such as steam pressure, coolant temperature, and generator output in power plants, helping operators maintain system efficiency and prevent costly downtime.

• Automotive Manufacturing: Provides precise monitoring for devices like robotic arms, conveyor belts, and assembly lines, ensuring efficient and precise production processes in automated manufacturing systems.

• Water and Wastewater Treatment: Used to monitor variables such as water level, flow rate, and chemical dosing, the module ensures optimized operation in water treatment plants and wastewater management systems.

Advantages

• High Accuracy and Resolution: The KJ3001X1-BG1 offers a 16-bit resolution and an accuracy of ±0.1%, making it ideal for applications that require high-precision measurements.

• Wide Input Range: The module supports a variety of input ranges, including ±10V, 0-20mA, and 4-20mA, offering flexibility in connecting to a wide range of sensors and devices.

• Compact and Reliable Design: With its compact dimensions (150 mm x 107 mm x 71 mm) and rugged construction, the KJ3001X1-BG1 is built to withstand the harsh conditions found in industrial environments.

• Certified for Hazardous Locations: The Ex ia IIC T4 certification allows the KJ3001X1-BG1 to be used safely in explosive environments, meeting the stringent safety requirements of industries like oil and gas and chemical processing.

• Seamless Integration: Designed to integrate smoothly with other DeltaV modules, the KJ3001X1-BG1 ensures a unified approach to process automation and control across a wide range of applications.

• Energy Efficient: The KJ3001X1-BG1 is engineered for low power consumption, making it an energy-efficient solution for continuous monitoring in industrial settings.

• Wide Temperature Range: With an operating range of -20°C to 60°C, the module is built to perform reliably in a variety of environmental conditions, from extreme heat to cold.

Technical FAQs

1. How many analog inputs does the KJ3001X1-BG1 module have?

   • The KJ3001X1-BG1 provides 8 analog input channels, ideal for monitoring multiple continuous signals simultaneously.

2. What is the input voltage range of the KJ3001X1-BG1?

   • The module supports a range of input voltages, including ±10V, 0-20mA, and 4-20mA, making it compatible with a wide variety of industrial sensors.

3. What is the resolution and accuracy of the KJ3001X1-BG1?

   • The module features a 16-bit resolution and ±0.1% accuracy, ensuring precise and reliable analog signal measurements.

4. Can the KJ3001X1-BG1 be used in hazardous environments?

   • Yes, it is certified with Ex ia IIC T4, meaning it can safely be used in explosive atmospheres and hazardous locations.

5. What is the current consumption of the KJ3001X1-BG1?

   • The module is designed to be energy-efficient, consuming minimal power while providing excellent performance.

6. What types of signals can the KJ3001X1-BG1 measure?

   • The KJ3001X1-BG1 can measure voltage (±10V) and current (0-20mA and 4-20mA) signals, making it suitable for a wide range of analog sensors.

7. How does the KJ3001X1-BG1 integrate with other Emerson products?

   • The KJ3001X1-BG1 integrates seamlessly with other DeltaV controllers and modules, providing a unified solution for process control and automation.

8. What industries typically use the KJ3001X1-BG1?

   • This module is ideal for industries such as chemical, pharmaceutical, oil and gas, power generation, and water treatment, where precise analog measurements are essential.

9. What certifications does the KJ3001X1-BG1 hold?

   • The module is certified with UL, CE, RoHS, and Ex ia IIC T4, ensuring compliance with global safety and environmental standards.

10. What is the operating temperature range of the KJ3001X1-BG1?

• The KJ3001X1-BG1 operates within a temperature range of -20°C to 60°C, ensuring reliable performance in a variety of industrial conditions.
