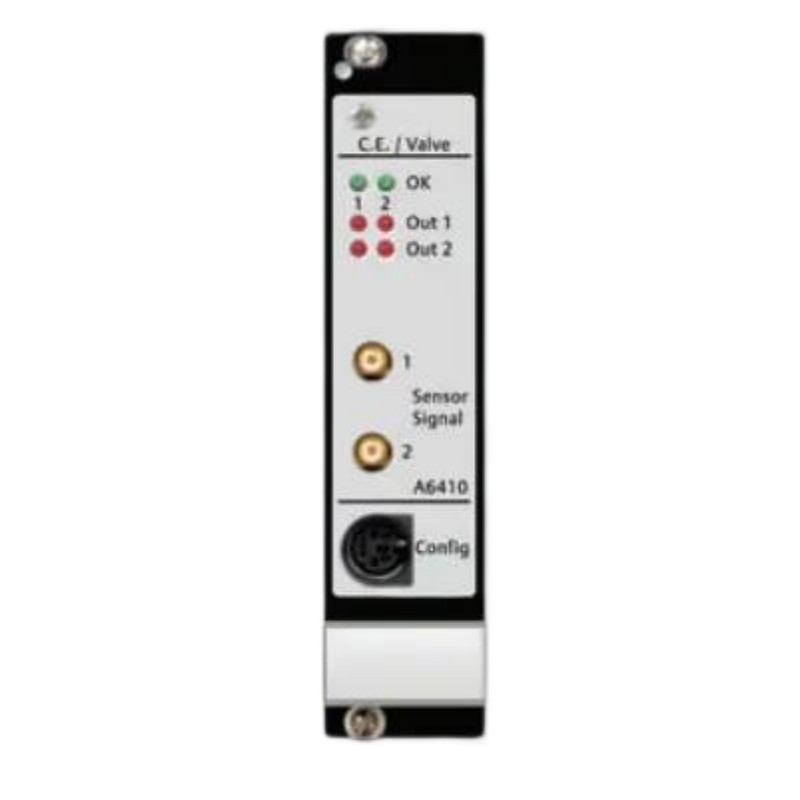

The Emerson A6410 is an advanced analog input/output module designed for seamless integration within Emerson’s DeltaV control systems. This versatile module allows the processing of both analog input signals (e.g., from pressure transmitters, temperature sensors, level transmitters) and analog output signals to field devices such as valves, actuators, and dosing pumps. With high precision and reliable performance, the A6410 is engineered to handle continuous process control in industries where accurate monitoring and control are critical.

Ideal for applications in industries such as chemical processing, pharmaceuticals, oil and gas, and power generation, the A6410 enables real-time control and monitoring of various process parameters, ensuring operational efficiency and safety. By providing a highly scalable solution for both input and output signals, the A6410 plays a crucial role in ensuring optimal system performance in complex industrial environments.

Technical Specifications

Specification	Details
Model	A6410
Module Type	Analog Input/Output Module
Input/Output Types	4-20 mA, 0-10 V, 0-20 mA (Output)
Input Channels	8 or 16 configurable input channels
Output Channels	8 or 16 configurable output channels
Accuracy	±0.1% of full scale
Signal Processing	High-resolution ADC/DAC, digital filtering
Dimensions	7.9 in x 6.5 in x 4.0 in (201 mm x 165 mm x 102 mm)
Weight	1.4 kg (3.09 lbs)
Operating Temperature	-40°C to 85°C (-40°F to 185°F)
Storage Temperature	-50°C to 95°C (-58°F to 203°F)
Power Supply	24V DC or Fieldbus powered
Certifications	UL, CE, RoHS

Recommended Related Models

To enhance the capabilities of the A6410 and achieve full system integration, consider pairing it with the following Emerson models:

DeltaV KJ1501X1-BC2: A digital input module that complements the A6410, providing high-accuracy input signal handling for additional process variables.
DeltaV KJ2005X1-BA1: A digital output module designed to interface with the A6410 for controlling actuators and other field devices based on the output signal.
Emerson AMS Device Manager: A predictive maintenance software tool that offers comprehensive monitoring and diagnostics, ensuring that the A6410 and other Emerson modules are functioning optimally.

Popular Emerson Models

DeltaV S-Series Controller: This high-performance controller integrates seamlessly with the A6410, offering robust process control for industries that require high precision and real-time monitoring.
DeltaV R-Series Controller: The R-Series is a scalable controller that supports multiple analog input/output modules like the A6410 for large-scale industrial applications.
Emerson 12P0631X012: A signal conditioning module that works in conjunction with the A6410 for processing various input signals, ensuring compatibility with a wide range of field devices.

Applications

The Emerson A6410 module is ideal for industries that require precise monitoring and real-time control of both analog input and output signals. Some key applications include:

Chemical and Pharmaceutical Industries: The A6410 is used to monitor pressure, temperature, and flow rates in batch reactors, mixing vessels, and distillation columns, ensuring precise control and process optimization.
Oil and Gas: The module is deployed for real-time monitoring of field devices such as pressure transmitters, level sensors, and flow control valves, ensuring safety and efficiency in both upstream and downstream operations.
Power Generation: In power plants, the A6410 plays a key role in controlling boilers, turbine systems, and transformers, providing continuous feedback for optimal system performance and regulatory compliance.
Water and Wastewater Treatment: The A6410 ensures effective operation of pump stations, chemical dosing systems, and flow meters, improving the overall efficiency and compliance of water treatment facilities.
Automotive Manufacturing: In automated assembly lines, the A6410 enables precise control over robotic arms, positioning systems, and conveyor belts, helping maintain high productivity and reducing downtime.

Advantages

Dual Input and Output Functionality: The A6410 combines analog input and output capabilities, offering a compact and scalable solution for applications requiring both types of signal processing.
High-Precision Signal Processing: With ±0.1% accuracy, the A6410 ensures precise monitoring and control over analog signals, which is critical for maintaining high-quality standards in industrial processes.
Flexible Configuration: The module supports up to 16 input and 16 output channels, providing high-density installations for complex applications that require extensive input/output points in confined spaces.
Seamless Integration with DeltaV: The A6410 is fully compatible with Emerson DeltaV control systems, offering real-time data acquisition, process control, and monitoring capabilities.
Robust and Reliable Design: The A6410 is engineered to withstand demanding industrial environments, with an operating temperature range of -40°C to 85°C, ensuring reliability in extreme conditions.
Certifications for Safety: The A6410 meets global standards with certifications such as UL, CE, and RoHS, guaranteeing safety and compliance with industry regulations.
Low Power Consumption: Designed to operate on 24V DC, the A6410 minimizes energy consumption, reducing operational costs while maintaining optimal performance.

Technical FAQs

What types of input signals can the Emerson A6410 handle?
- The A6410 supports 4-20 mA, 0-10 V, and 0-20 mA signals, making it compatible with a wide range of industrial sensors.
How many channels does the A6410 support for input and output?
- The A6410 is available in configurations of 8 or 16 channels for both input and output, providing flexible installation options.
What is the accuracy of the A6410 module?
- The A6410 offers ±0.1% accuracy, ensuring high-precision signal processing for critical process monitoring and control.
What is the power supply requirement for the A6410?
- The A6410 operates on 24V DC or can be powered through Fieldbus, providing flexibility for different system configurations.
Does the A6410 module meet safety certifications?
- Yes, the A6410 is certified to UL, CE, and RoHS standards, ensuring it meets safety, environmental, and quality requirements for industrial applications.
What is the operating temperature range of the A6410?
- The A6410 can operate in temperatures ranging from -40°C to 85°C, making it suitable for use in both indoor and outdoor industrial environments.
Can the A6410 be used in hazardous environments?
- Yes, the A6410 is designed for use in hazardous industrial environments, meeting the necessary certifications for safety and performance.
How does the A6410 integrate with other Emerson systems?
- The A6410 integrates seamlessly with Emerson DeltaV control systems and other Emerson Fieldbus-compatible devices, providing comprehensive control and monitoring.
What industries benefit most from the A6410?
- The A6410 is ideal for industries such as chemical processing, oil and gas, power generation, automotive manufacturing, and water treatment, where continuous signal monitoring and control are essential.
What is the typical response time of the A6410?

The A6410 offers real-time data acquisition and processing with fast response times, ensuring immediate control and feedback in industrial systems.
