Introduction

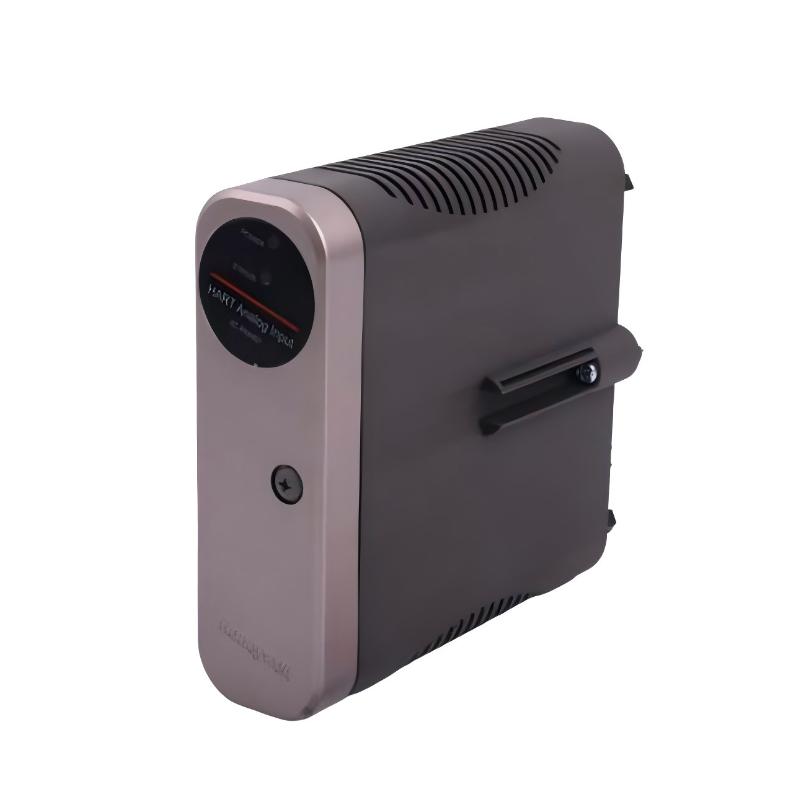

The Honeywell 8C-PAIH51 51454352-175 Analog Input Module is part of Honeywell’s widely trusted C300 I/O family, built to deliver high-quality analog measurement for mission-critical operations. Designed with modern process plants in mind, it blends rugged hardware design, excellent noise rejection, and intuitive diagnostics. The module supports multiple analog input types, allowing flexible configuration for diverse instrumentation. Its consistent and stable readings help facilities optimize control performance, reduce downtime, and improve production quality.

Technical Specifications

Parameter	Details
Module Type	Analog Input Module
Model	8C-PAIH51 51454352-175
Input Types	Multiple analog input formats (e.g., 4–20 mA, voltage signals, depending on system configuration)
Channels	High-density multi-channel support
Isolation	Channel and system isolation for noise resilience
Diagnostics	Built-in health and status monitoring
Operating Temperature	Industrial-grade operating range
Dimensions	220 × 120 mm
Weight	0.3 kg
System Compatibility	Honeywell C Series / Experion PKS

Recommended Related Models

Model	Description
8C-TAOX51	Analog Output Module
8C-PAZH51	High-density Analog Input Module
8C-PZSA51	HART I/O Module
8C-TPOX01	Thermocouple Input Module
CC-PAIN01	Analog Input Module (earlier generation)
CC-PFB401	Fieldbus Interface Module
8U-PAIX02	Extended Analog Input Module
8U-TPOX02	RTD/Thermocouple Module
CC-TAIM01	Current Input Module
CC-TAOX01	Current Output Module

Popular Related Models

Model	Description
CC-TCF901	C300 Controller Processor
CC-PWRR01	Power Supply Module
CC-PCF901	Control Firewall Module
CC-ECF901	Ethernet Communication Module
8C-PZTA01	Terminal Assembly
8C-ICAI01	Intelligent I/O Module
CC-PAON01	Analog Output Module
CC-PAIH01	Analog Input Module
8U-PWHC02	Power Conditioning Module
8U-TAIX02	Temperature Input Module

Applications

The Honeywell 8C-PAIH51 51454352-175 is designed for process environments where analog measurement accuracy directly influences safety, efficiency, and regulatory compliance. This module is commonly deployed in advanced control systems across refining, chemical processing, power generation, and large-scale manufacturing facilities. Its robust signal conditioning and stable performance make it ideal for plants seeking dependable field data acquisition with minimal drift.

Advantages

High-resolution analog signal processing ensures precise measurement even in noisy industrial environments.
Engineered for long-term stability, reducing recalibration frequency and maintenance overhead.
Seamless integration with Honeywell Experion and C Series control platforms, enabling fast commissioning.
Diagnostic-rich architecture that helps operators identify field issues before they escalate.
High immunity to electrical interference, ensuring uninterrupted measurement reliability.

FAQs

How does the module handle different analog input ranges?
It uses predefined range profiles that automatically scale raw A/D values.
What conversion method does the A/D circuit use?
A delta-sigma converter with oversampling ensures stable, high-resolution readings.
How are temperature-related analog signals processed?
The module reads conditioned signals; compensation is managed by transmitters or the controller.
Does the module perform engineering unit conversion?
No, engineering units are applied in the application logic.
How does it schedule sampling across multiple channels?
A time-division sampling scheme allocates fixed slots for each channel.
What mechanisms verify the integrity of incoming analog data?
It checks A/D boundaries, validates configuration, and uses CRC for internal data frames.
How are brief input spikes filtered?
A digital smoothing buffer discards transient anomalies before outputting values.
What happens when the module initializes or is hot-swapped?
The firmware validates channel configurations before enabling data updates.
How does it react to unstable or erratic channel signals?
A watchdog isolates the affected channel and marks its quality as bad.
How is timing aligned with redundant controllers?
The module synchronizes its scan cycle with controller timing signals for consistent updates.
