Introduction

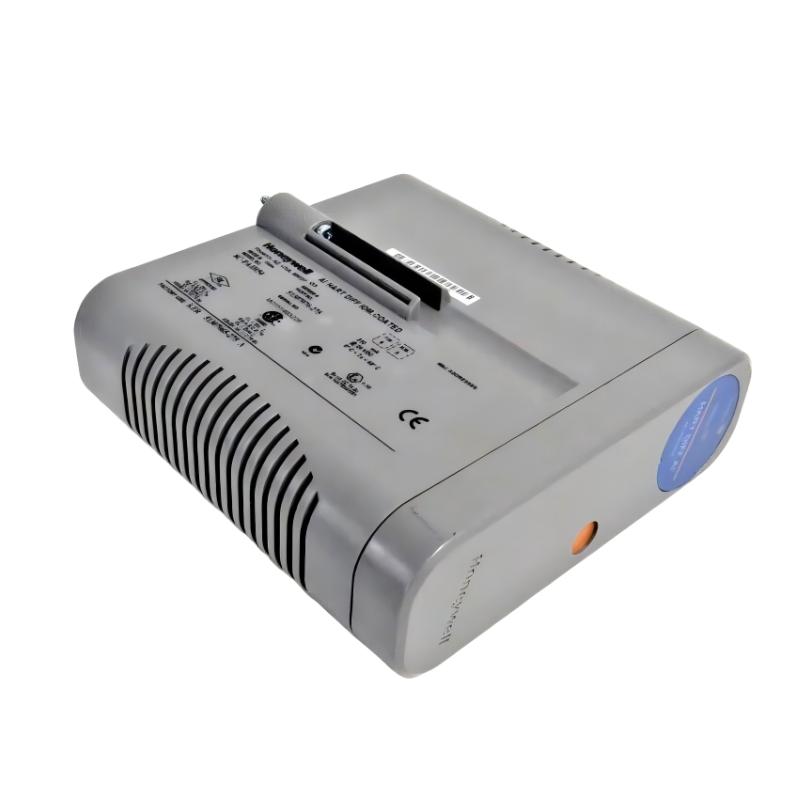

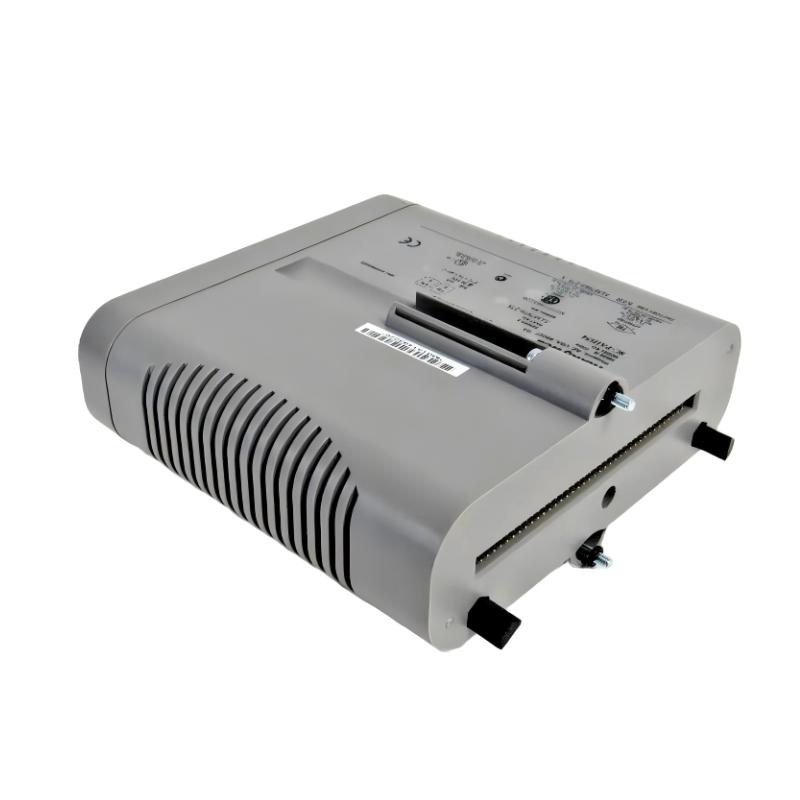

The Honeywell 8C-PAIH54 51307070-275 Analog Input Module is engineered to provide clean, reliable measurement for critical process operations. As part of Honeywell’s modern I/O platform, it delivers precise analog acquisition while supporting high-density channel configuration and comprehensive diagnostics. Plants seeking stable, repeatable measurements benefit from the module’s noise-resistant circuitry and intelligent self-monitoring functions. Its seamless integration with the Experion ecosystem ensures fast deployment and consistent long-term performance.

Technical Specifications

Parameter	Details
Module Type	Analog Input Module
Model	8C-PAIH54 51307070-275
Input Types	Standard industrial analog inputs (e.g., current/voltage types depending on configuration)
Conversion Method	High-resolution delta-sigma A/D
Diagnostics	Channel health, wiring, configuration, and signal integrity monitoring
Isolation	Channel/system-level electrical isolation
Operating Temperature	Industrial-grade
Dimensions	220 × 120 mm
Weight	0.3 kg
System Compatibility	Honeywell C Series / Experion PKS

Recommended Related Models

Model	Description
8C-PAIH51	Analog Input Module
8C-TAOX51	Analog Output Module
8C-PZSA51	HART-enabled AI Module
8C-TPOX01	Temperature Input Module
CC-PAIN01	Analog Input Module (legacy)
CC-PFB401	Fieldbus Interface
8U-PAIX02	Extended Analog Input Module
8U-TPOX02	RTD/Thermocouple Module
CC-TAIM01	Current Input Module
CC-TAOX01	Current Output Module

Popular Related Models

Model	Description
CC-TCF901	C300 Controller Processor
CC-PWRR01	Power Supply Module
CC-PCF901	Control Firewall Module
CC-ECF901	Ethernet Communication Module
8C-PZTA01	Terminal Assembly
8C-ICAI01	Intelligent I/O Module
CC-PAON01	Analog Output Module
CC-PAIH01	Analog Input Module
8U-PWHC02	Power Conditioning Module
8U-TAIX02	Temperature Input Module

Applications

The Honeywell 8C-PAIH54 51307070-275 is widely used in advanced process industries that depend on stable, high-accuracy analog measurement. Plants engaged in refining, petrochemicals, power generation, pharmaceuticals, and large-scale utilities rely on this module for clean, consistent data acquisition. Its architecture supports modern control strategies and is well-suited for installations where precise field signal interpretation directly impacts efficiency and safety.

Advantages

High-resolution signal processing ensures accurate analog measurement under demanding load and temperature shifts.
Strong electrical noise immunity maintains signal integrity in harsh industrial environments.
Fully compatible with Honeywell C Series and Experion PKS systems for seamless engineering and commissioning.
Robust diagnostics help operators identify wiring, configuration, and sensor problems early.
Designed for long service life, reducing recalibration frequency and maintenance overhead.

FAQs

How does the module scale incoming analog signal ranges?
It uses predefined input profiles to automatically convert raw A/D counts into normalized values.
What A/D conversion method does it rely on?
A delta-sigma converter with oversampling delivers stable, high-resolution output.
How does it process temperature-derived signals from field devices?
It reads conditioned transmitter outputs; temperature compensation is performed externally or in the controller.
Does it convert signals to engineering units at the module level?
No, engineering unit scaling is applied in the control logic.
How are multiple channels sampled in a synchronized manner?
A time-division scheduler assigns a fixed sampling interval to each channel.
How does it verify the validity of analog data?
The module checks signal boundaries, validates configuration rules, and applies internal CRC checks.
How are brief or abnormal signal spikes removed?
A digital smoothing buffer filters transient values before publishing data.
What checks occur when the module powers up or is hot-swapped?
Firmware verifies channel configuration tables before enabling the data stream.
How are unstable channels handled?
A channel watchdog marks faulty inputs as bad quality and isolates them.
How does it maintain timing alignment with redundant controllers?
The scan cycle is synchronized with controller timing signals for deterministic updates.
