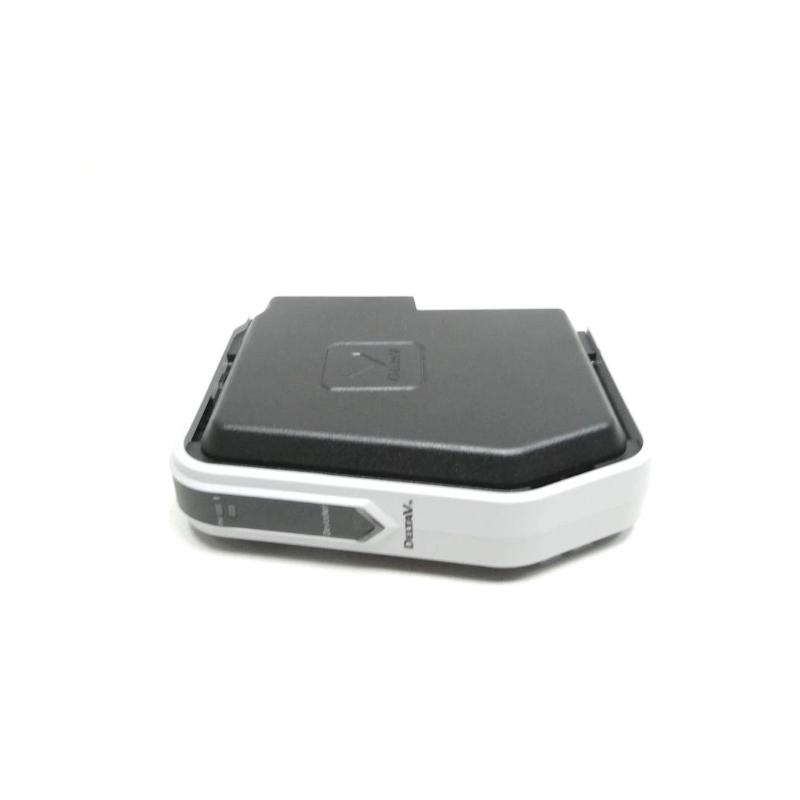

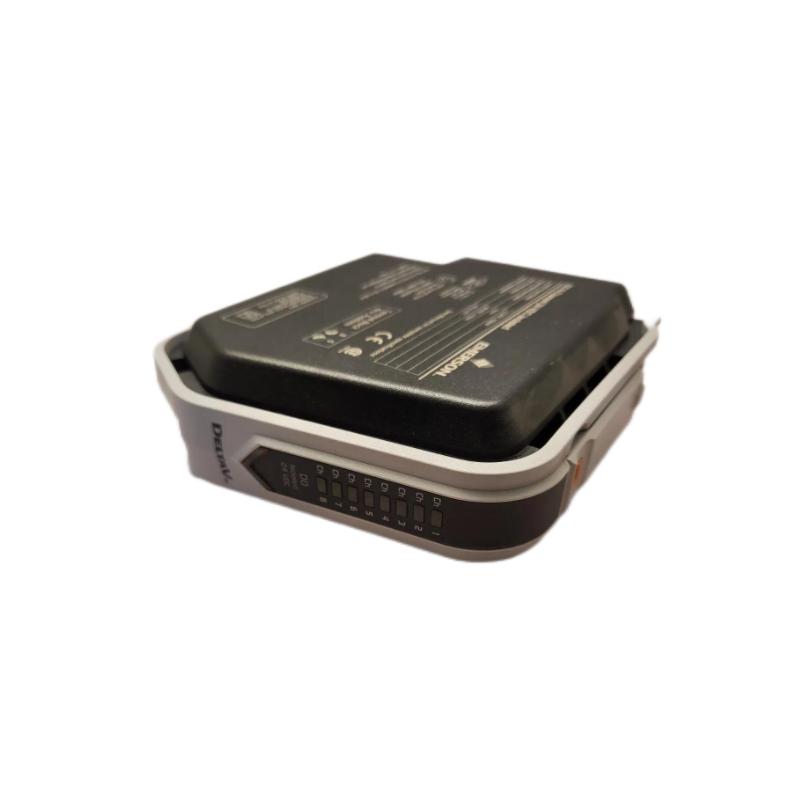

The Emerson KJ3208X1-BK1 Intelligent Field Transmitter is a robust, high-performance device designed to provide reliable and precise measurements for critical industrial applications. Utilizing Emerson’s cutting-edge Rosemount™ technology, this transmitter is built for industries like oil & gas, chemical processing, power generation, and water treatment, where accurate pressure, flow, and level measurement is essential. The KJ3208X1-BK1 model offers multi-variable capabilities and advanced diagnostic features, ensuring seamless integration with modern process control systems. With its exceptional accuracy, robust construction, and wide range of communication protocols, this transmitter is an ideal solution for enhancing operational efficiency, reducing downtime, and optimizing complex industrial processes.

Technical Specifications

Specification	Details
Model	Emerson KJ3208X1-BK1
Module Type	Intelligent Field Transmitter
Measurement Range	0.01 to 5000 m³/h (Flow), 0–15,000 psi (Pressure), 0–100 meters (Level)
Input Type	Differential Pressure, Flow, Level
Communication Protocol	HART®, FOUNDATION™ fieldbus, Profibus PA
Output Signal	4–20 mA, Digital (HART)
Accuracy	±0.05% of Span
Temperature Range	-40°C to 85°C (-40°F to 185°F)
Power Supply	12–42 VDC
Dimensions	9.4" x 7.3" x 6.8" (239 mm x 185 mm x 173 mm)
Weight	2.75 kg (6.06 lbs)
Housing Material	Stainless Steel
Ingress Protection	IP66/IP67

Recommended Related Models

If you need additional features or specific configurations, consider these Emerson models:

Emerson KJ3208X1-BL1 – Offers enhanced multi-variable measurement capabilities and is ideal for applications requiring advanced diagnostics and process control.
Emerson Rosemount 3051 – A versatile multi-variable transmitter, ideal for measuring pressure, flow, and temperature in industrial applications across diverse sectors.
Emerson Rosemount 8700 – Perfect for non-intrusive flow measurement, offering high accuracy and minimal maintenance, ideal for industries requiring consistent performance.

Popular Emerson Models

The Rosemount™ series by Emerson offers a variety of reliable and high-performance measurement instruments:

Emerson Rosemount 3051 – A multi-variable transmitter renowned for its accuracy and flexibility in pressure, flow, and temperature measurement applications.
Emerson Rosemount 2088 – Designed for general-purpose pressure and flow measurements, offering reliable performance in a wide range of industrial processes.
Emerson 1151 – A durable and versatile transmitter for precise measurement of pressure, level, and temperature in industrial environments.

Applications

The Emerson KJ3208X1-BK1 is designed to deliver exceptional performance in industries where precision and reliability are essential:

Oil & Gas: This transmitter is ideal for monitoring pressure, flow, and level in pipelines, refineries, offshore rigs, and upstream/downstream oil and gas applications.
Chemical Processing: The KJ3208X1-BK1 provides precise measurements for chemical reactors, distillation columns, and storage tanks, enabling consistent product quality and optimal process control.
Power Generation: Used in boilers, turbines, and cooling systems, this transmitter helps optimize flow and pressure measurement, improving energy efficiency and reducing downtime.
Water & Wastewater Treatment: Ideal for monitoring critical flow and level parameters in water treatment plants, ensuring compliance with regulatory standards and safeguarding water quality.
Food & Beverage: The transmitter ensures reliable flow and level measurements in production lines, maintaining product consistency and meeting regulatory requirements for food safety.

Advantages

Multi-Variable Measurement: The KJ3208X1-BK1 supports simultaneous measurement of pressure, flow, and level, providing a comprehensive solution for complex process monitoring.
High Accuracy: With ±0.05% of span accuracy, this transmitter ensures precise measurements, enhancing the reliability and performance of critical industrial processes.
Advanced Diagnostics: Equipped with Emerson Smart Diagnostics, the KJ3208X1-BK1 offers real-time performance monitoring, allowing for predictive maintenance and reducing unplanned downtime.
Durable and Reliable: With stainless-steel housing and IP66/IP67 ingress protection, this transmitter is designed to withstand harsh environmental conditions, providing reliable operation in even the most challenging industrial settings.
Wide Temperature Range: The KJ3208X1-BK1 operates within a temperature range of -40°C to 85°C (-40°F to 185°F), making it suitable for extreme industrial environments.
Flexible Communication: Supporting HART®, FOUNDATION™ fieldbus, and Profibus PA communication protocols, the KJ3208X1-BK1 ensures seamless integration into existing industrial control systems.

Technical FAQs

What is the measurement range of the KJ3208X1-BK1?
The KJ3208X1-BK1 is capable of measuring flow from 0.01 to 5000 m³/h, pressure up to 15,000 psi, and level from 0 to 100 meters.
What communication protocols are supported by the KJ3208X1-BK1?
This transmitter supports HART®, FOUNDATION™ fieldbus, and Profibus PA, providing flexible integration with various industrial control systems.
What is the accuracy of the KJ3208X1-BK1?
The KJ3208X1-BK1 delivers ±0.05% of span accuracy, ensuring highly precise and reliable measurements for critical industrial processes.
What is the temperature range of the KJ3208X1-BK1?
The transmitter operates in temperatures ranging from -40°C to 85°C (-40°F to 185°F), making it suitable for diverse and extreme environmental conditions.
What power supply does the KJ3208X1-BK1 require?
The KJ3208X1-BK1 requires a 12–42 VDC power supply, making it compatible with a wide range of industrial setups.
Is the KJ3208X1-BK1 suitable for hazardous environments?
Yes, with IP66/IP67 ingress protection and a stainless-steel housing, this transmitter is built to endure harsh and hazardous environments.
How is the KJ3208X1-BK1 installed?
The KJ3208X1-BK1 can be installed using either pipe-mounting or panel-mounting, providing installation flexibility to suit various application needs.
Does the KJ3208X1-BK1 support multi-variable measurement?
Yes, the KJ3208X1-BK1 supports simultaneous measurement of pressure, flow, and level, offering an integrated solution for complex process monitoring.
Which industries benefit from the KJ3208X1-BK1?
The KJ3208X1-BK1 is ideal for industries such as oil & gas, chemical processing, power generation, water treatment, and food & beverage, where reliable and accurate process measurement is crucial.
What is the weight of the KJ3208X1-BK1?
The KJ3208X1-BK1 weighs approximately 2.75 kg (6.06 lbs), making it easy to handle and install in a variety of industrial environments.
