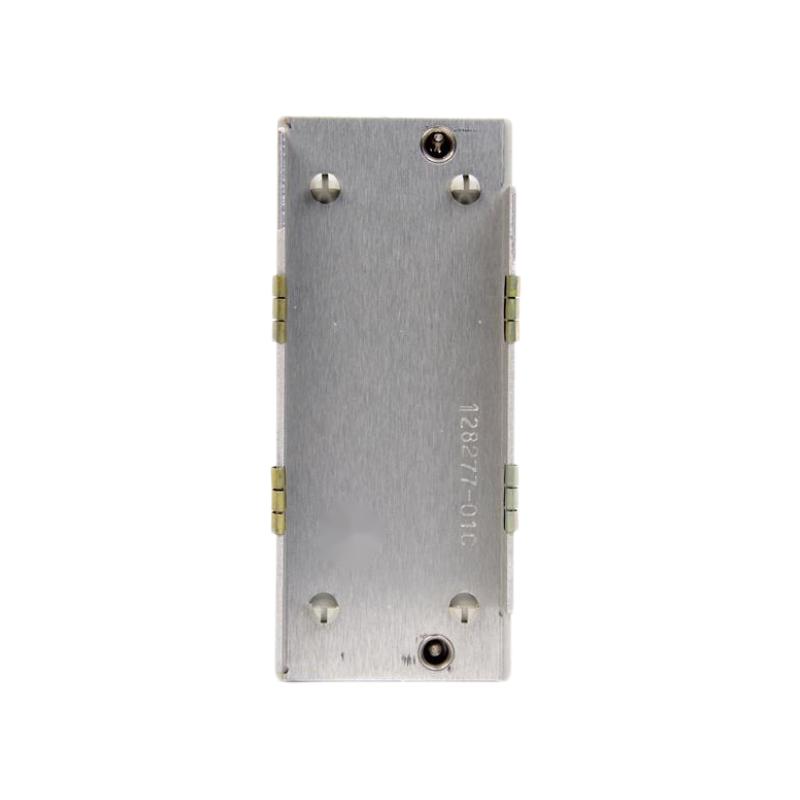

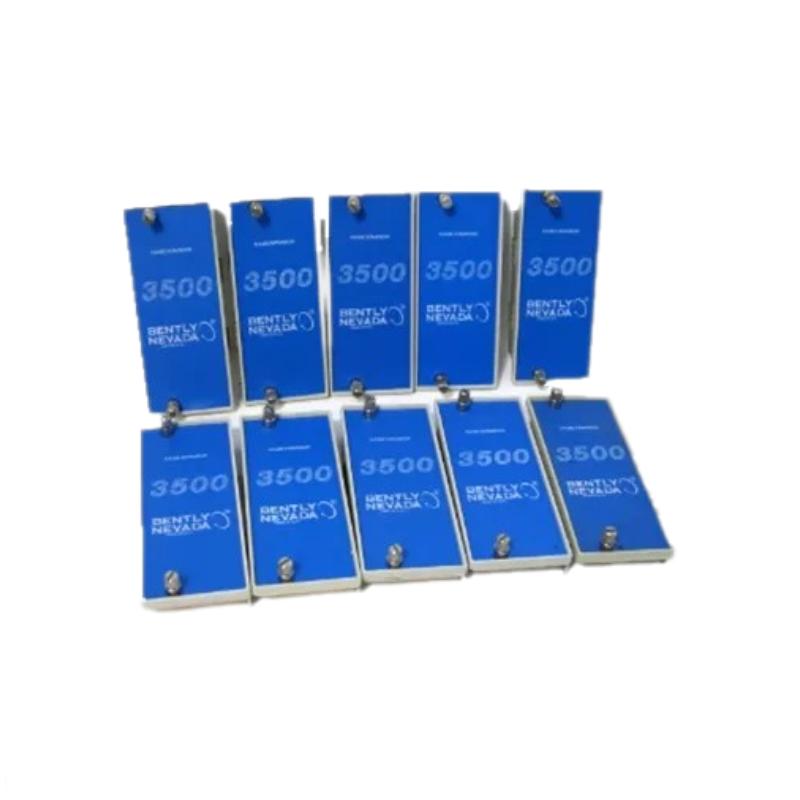

Bently 128277-01 Power Supply Module

Introduction

The Bently 128277-01 is a reliable power supply module designed for Bently Nevada 3500 Series machinery protection and condition monitoring systems. This module ensures that vital monitoring devices, such as vibration sensors, temperature probes, and other critical instruments, receive stable 24 VDC power. Its role is to maintain continuous operation and optimal performance of machinery protection systems, preventing unexpected downtime and enabling predictive maintenance.

Designed to meet the harsh requirements of industrial environments, the 128277-01 includes several protective features to safeguard both the module and the machinery it supports. It is ideal for applications in industries such as oil & gas, power generation, manufacturing, and utilities, where reliable and continuous monitoring of machinery is crucial for avoiding costly failures and maintaining operational safety.

Technical Specifications

Specification	Details
Model	128277-01
Module Type	Power Supply Module
Input Voltage	120/240 VAC
Output Voltage	24 VDC
Output Current	8 A
Size (W x H x D)	160 x 120 x 100 mm
Weight	1.5 kg
Mounting Type	Panel Mounting
Operating Temperature	-20°C to +70°C
Power Consumption	192 W
Protection Features	Overload, Short-circuit, Thermal Protection
Certifications	CE, UL, RoHS

Recommended Related Models

Model	Module Type	Output Voltage	Output Current	Input Voltage
Bently 128277-02	Power Supply Module	24 VDC	9 A	120/240 VAC
Bently 128277-03	Power Supply Module	24 VDC	10 A	120/240 VAC
Bently 106765-15	Power Supply Module	24 VDC	7 A	120/240 VAC

Popular Bently Models

Model	Module Type	Output Voltage	Output Current	Input Voltage
Bently 128277-01	Power Supply Module	24 VDC	8 A	120/240 VAC
Bently 106765-12	Power Supply Module	24 VDC	5 A	120/240 VAC
Bently 106765-14	Power Supply Module	24 VDC	6 A	120/240 VAC

Applications

Machinery Protection Systems: The Bently 128277-01 is essential in machinery protection systems, providing continuous and reliable power to sensors and other devices monitoring the health of critical machinery.
Condition Monitoring: It is widely used in condition monitoring applications, where it powers systems that track the operational status of machines, providing real-time feedback to operators.
Predictive Maintenance: The module ensures that predictive maintenance systems receive uninterrupted power, allowing them to detect anomalies and predict future failures before they occur.
Industrial Automation: It supports industrial automation systems, supplying power to control devices, sensors, and automation equipment used in manufacturing and production environments.
Energy & Power Generation: In the energy and power generation sector, the 128277-01 powers monitoring systems that protect turbines, generators, and other essential infrastructure, ensuring continuous operation.

Advantages

Stable Power Output: The 128277-01 delivers a steady 8 A output of 24 VDC, ensuring reliable performance for machinery protection and monitoring systems.
Efficient Power Consumption: With a power consumption of 192 W, the module operates efficiently, making it cost-effective for long-term use.
Compact Design: The module's compact size (160 x 120 x 100 mm) makes it easy to install in constrained spaces, such as control panels or machinery protection racks.
Global Compatibility: The 120/240 VAC input voltage compatibility ensures that the module can be used in various global markets with different electrical standards.
Advanced Protection Features: The module includes overload protection, short-circuit protection, and thermal protection to safeguard both the module and the devices it powers.
Wide Operating Temperature Range: With an operating temperature range of -20°C to +70°C, the module is designed to function reliably in challenging industrial environments.

Technical FAQs

What is the input voltage for the Bently 128277-01 module?
The module supports 120/240 VAC input voltage.
What is the output voltage of the Bently 128277-01 module?
The output voltage is 24 VDC.
What is the output current of the Bently 128277-01 module?
The output current is 8 A.
What is the size of the Bently 128277-01 module?
The module measures 160 x 120 x 100 mm.
What is the weight of the Bently 128277-01 module?
The weight is 1.5 kg.
What is the operating temperature range for the Bently 128277-01 module?
The operating temperature range is -20°C to +70°C.
How is the Bently 128277-01 module mounted?
The module is designed for panel mounting.
What protection features does the Bently 128277-01 module offer?
The module includes overload protection, short-circuit protection, and thermal protection.
Is the Bently 128277-01 module certified for international standards?
Yes, it is CE, UL, and RoHS certified.
Can the Bently 128277-01 module be used in predictive maintenance?
Yes, it is ideal for use in predictive maintenance systems, ensuring that all monitoring devices remain powered for accurate diagnostics.
