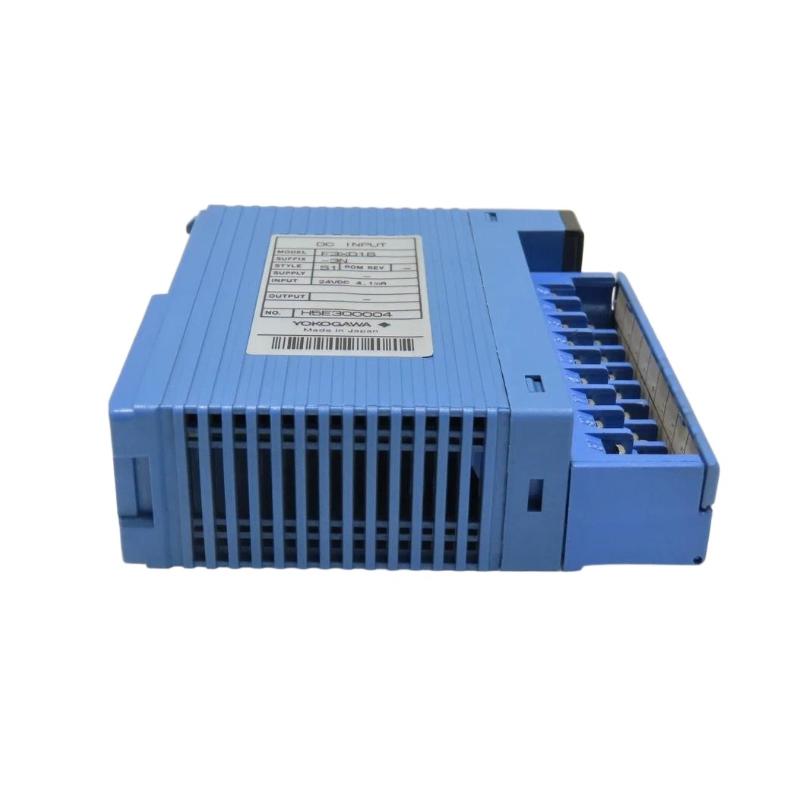

Yokogawa F3XD16-3N DC Input Module

Applications

The Yokogawa F3XD16-3N DC Input Module is designed for reliable signal acquisition from field devices in industrial automation systems. Typical applications include:

• Receiving DC input signals from sensors and switches

• Integrating field signals into Yokogawa UT and ESB networks

• Expanding I/O capacity in distributed control systems

• Facilitating retrofits or upgrades of existing automation installations

Advantages

• High-precision input: Ensures accurate detection of DC signals

• Compact and lightweight: Easy installation in control cabinets or DIN-rail setups

• Industrial-grade durability: Resistant to vibration, temperature variations, and electrical interference

• Seamless integration: Fully compatible with Yokogawa UT, ESB, and STARDOM systems

Technical FAQs

1. What are the physical dimensions of this module?
   28.9 × 100 × 83.2 mm.

2. What is the weight?
   0.16 kg.

3. What type of module is this?
   DC Input Module for industrial control systems.

4. Can it integrate with UT and ESB networks?
   Yes, fully compatible with Yokogawa automation networks.

5. Is it suitable for industrial environments?
   Yes, engineered for vibration and temperature resilience.

6. Does it require special mounting?
   Standard DIN-rail or panel mounting is supported.

7. Is maintenance required?
   Minimal; periodic inspection recommended.

8. Can it be used for retrofitting older systems?
   Yes, compatible with legacy installations.

9. How many input channels does it support?
   Supports multiple DC input channels for efficient signal acquisition.

10. Is it resistant to electrical interference?
    Yes, designed for stable input signal performance in industrial environments.
