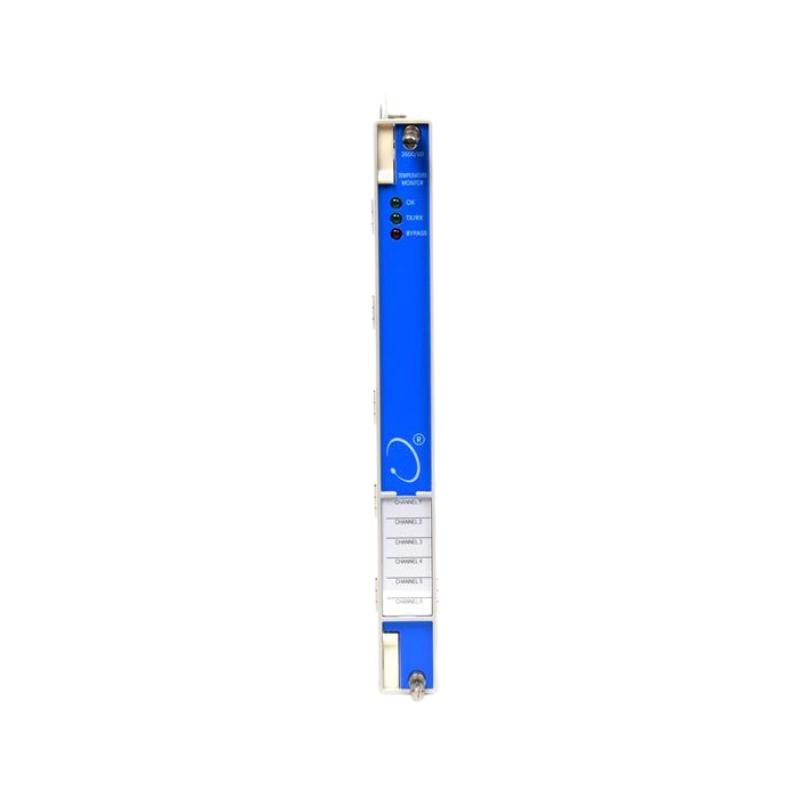

Bently 133811-01 Vibration Monitoring System

Introduction

The Bently 133811-01 is a vibration monitoring module designed for use with Bently Nevada 3500 Series machinery protection and condition monitoring systems. This module is essential for detecting vibrations in critical rotating machinery such as turbines, compressors, motors, and pumps. By continuously monitoring vibration levels, it helps identify early signs of equipment malfunction or deterioration, which is crucial for predictive maintenance and minimizing unplanned downtimes.

Built with rugged reliability, the 133811-01 module is engineered to perform in demanding industrial environments, making it ideal for use in industries like oil & gas, power generation, and manufacturing. This module ensures your monitoring system operates without interruptions, improving both machinery health and operational efficiency.

Technical Specifications

Specification	Details
Model	133811-01
Module Type	Vibration Monitoring Module
Input Voltage	24 VDC
Output	Analog & Digital Signals
Size (W x H x D)	180 x 120 x 90 mm
Weight	1.5 kg
Operating Temperature	-20°C to +60°C
Protection Features	Overvoltage, Reverse Polarity, Short-circuit
Certifications	CE, UL, RoHS

Applications

Rotating Machinery Monitoring: The 133811-01 is ideal for monitoring critical rotating machinery like turbines, compressors, pumps, and motors, ensuring they are operating within optimal parameters.
Condition Monitoring: It helps detect abnormal vibration patterns early, which could indicate mechanical issues such as imbalance, misalignment, or bearing wear.
Predictive Maintenance: The module provides real-time data that supports predictive maintenance efforts by identifying potential problems before they lead to expensive failures or shutdowns.
Industrial Automation: Plays a significant role in industrial automation systems by offering continuous data, allowing automatic adjustments or alerts based on real-time vibration conditions.
Power Generation: In power plants, the module ensures that critical equipment, like turbines and generators, is constantly monitored to prevent failures and avoid costly downtime.

Advantages

Continuous Vibration Monitoring: The module provides continuous real-time data on machinery health, enabling quick decision-making.
Precise Fault Detection: By detecting even minor deviations in vibration patterns, it helps identify early-stage faults and avoid costly repairs.
Versatile Outputs: Equipped with both analog and digital outputs, the 133811-01 can integrate seamlessly with a variety of monitoring systems.
Compact and Robust Design: With dimensions of 180 x 120 x 90 mm and weighing 1.5 kg, this module is designed to fit into tight spaces while remaining durable enough to withstand harsh industrial environments.
Protection Against Electrical Faults: Includes built-in protection features such as overvoltage, reverse polarity, and short-circuit protection.
Wide Temperature Range: Operates effectively in a range of -20°C to +60°C, making it suitable for a variety of industrial environments.

Technical FAQs

What is the input voltage for the Bently 133811-01 module?
The input voltage is 24 VDC.
What is the size of the Bently 133811-01 module?
The module measures 180 x 120 x 90 mm.
What protection features does the Bently 133811-01 module offer?
It includes overvoltage, reverse polarity, and short-circuit protection.
What is the weight of the Bently 133811-01 module?
The weight is 1.5 kg.
What types of outputs are available from the Bently 133811-01 module?
It provides both analog and digital outputs.
What is the operating temperature range of the Bently 133811-01 module?
The module can operate within the temperature range of -20°C to +60°C.
Can the Bently 133811-01 module be used for predictive maintenance?
Yes, it is ideal for use in predictive maintenance applications, helping to detect faults early and avoid unexpected failures.
What industries typically use the Bently 133811-01 module?
The module is widely used in oil & gas, power generation, manufacturing, and other industries where machinery uptime is critical.
Is the Bently 133811-01 module certified for safety and environmental standards?
Yes, it is CE, UL, and RoHS certified, meeting international safety and environmental standards.
What are the key benefits of the Bently 133811-01 module?
The module provides real-time vibration monitoring, early fault detection, flexibility in integration, compact design, and reliable performance in harsh industrial environments.
