Introduction

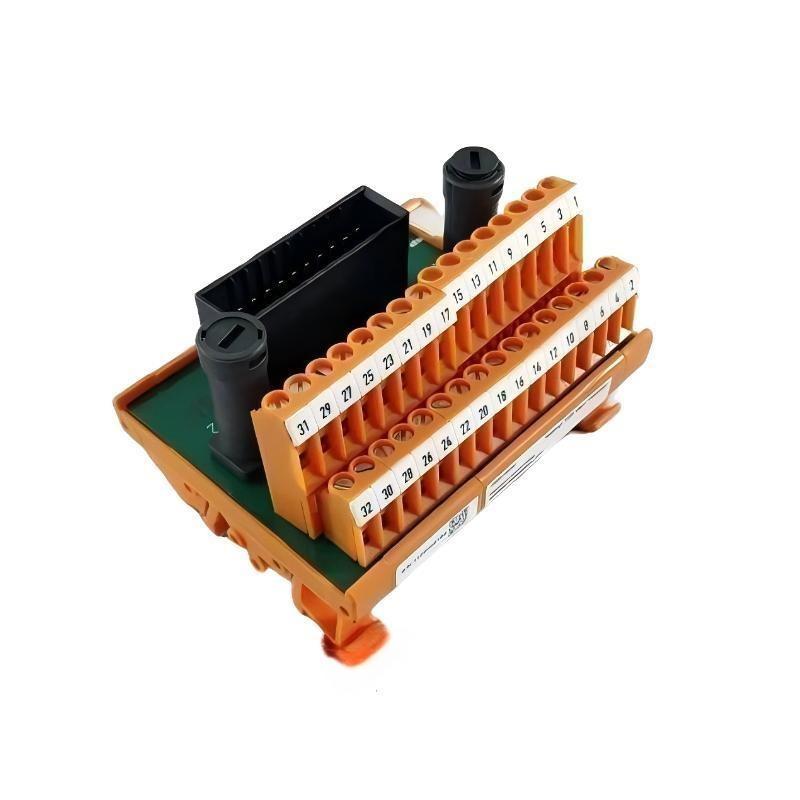

The Honeywell FC-TSDL-16UNI Safety Digital Input Field Termination Components are designed to deliver precise, safe, and reliable terminations for digital input signals in safety-critical industrial systems. Their compact size and rugged construction make them ideal for tight control panels, while modularity allows easy integration and maintenance. Trusted in industrial environments, these components simplify wiring, enhance safety compliance, and reduce installation errors.

Technical Specifications

Feature	Specification
Dimensions	22.5 × 100 × 115 mm
Weight	0.2 kg
Material	High-strength polymer
Mounting	DIN rail compatible
Compatible Modules	Honeywell FC-TSDL series, FC-PDIO01
Operating Temperature	-20°C to 60°C
Electrical Rating	As per connected digital input modules
Color	Gray
Compliance	CE, RoHS

Recommended Related Models

Honeywell FC-PDIO01 Safety Digital I/O Module
Honeywell FC-USI-0001 Universal Safety Interface Module
Honeywell FC-PDB-0824 Distribution Board

Popular Related Models

Honeywell FC-PSU-UNI2450 Power Supply
Honeywell FC-MCAR-02 Mounting Bracket
Honeywell FS-TERM-0001 Redundant I/O Bus Terminator

Applications

The Honeywell FC-TSDL-16UNI components are crafted to streamline digital input wiring in safety-critical systems. Key applications include:

Terminating field wiring for digital input modules in safety automation networks.
Simplifying integration of sensors and switchgear in industrial control systems.
Protecting connections against accidental disconnections or wiring errors.
Enabling organized and safe layout in control panels or junction boxes.
Supporting compliance with industrial safety standards for input signal integrity.

Advantages

Compact and Durable: Small footprint allows installation in tight spaces without compromising strength.
Reliable Termination: Ensures secure electrical connections for consistent system performance.
Easy Maintenance: Modular design allows quick inspection and replacement without full system shutdown.
Enhanced Safety Compliance: Meets industrial safety standards for digital input wiring.
Versatile Installation: Suitable for a variety of FC digital input modules and field layouts.

Technical FAQs

What is the size of this termination component?
22.5 × 100 × 115 mm.
How much does it weigh?
Approximately 0.2 kg.
Which digital input modules is it compatible with?
Designed for Honeywell FC-TSDL series and FC-PDIO01 modules.
Is it rated for high-voltage input signals?
Yes, within the specifications of the connected digital input modules.
Can it be mounted on DIN rails?
Yes, supports standard DIN rail installation.
Does it support field wiring for safety circuits?
Yes, optimized for fail-safe digital input circuits.
Is the enclosure material durable?
Made from high-quality polymer for mechanical strength and insulation.
Is it easy to replace or service?
Yes, modular design enables quick replacement without disconnecting entire panels.
Is it suitable for high-vibration environments?
Yes, engineered for stability in industrial conditions.
Does it come with installation accessories?
Standard mounting clips and terminals are included.
