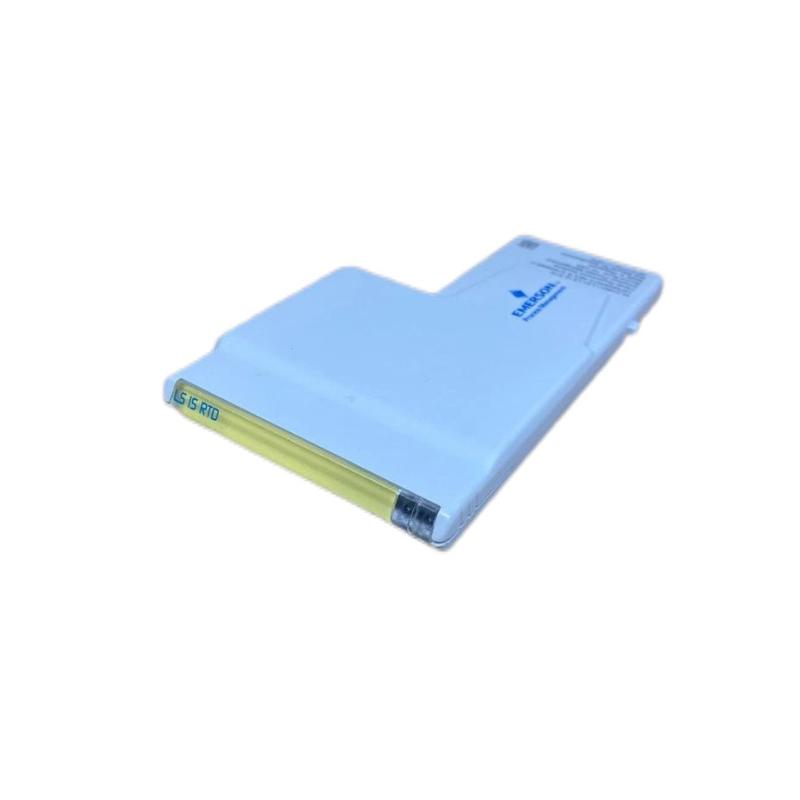

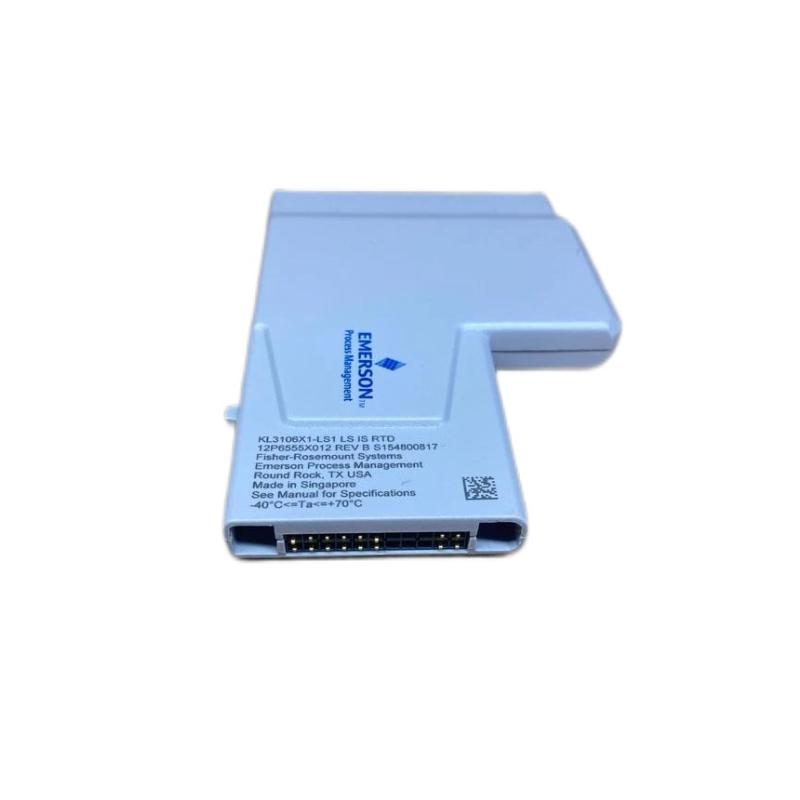

KL3106X1-LS1 (2) KL3106X1-LS1 (1) KL3106X1-LS1 (3) KL3106X1-LS1 (4)

The Emerson KL3106X1-LS1 Intelligent Field Transmitter delivers high-precision pressure and level measurements, offering outstanding performance in challenging industrial environments. Built on Emerson’s renowned Rosemount™ technology, this transmitter is designed to meet the needs of industries requiring reliable and accurate measurement, such as oil & gas, chemical processing, power generation, and water treatment.

The KL3106X1-LS1 integrates both pressure and level measurements in a single device, helping to simplify system architecture, reduce equipment costs, and minimize the complexity of installation and maintenance. This transmitter’s advanced capabilities ensure that it provides highly accurate data even in extreme conditions, making it a trusted solution for applications where reliability and real-time monitoring are critical.

With IP66/IP67 ingress protection, the KL3106X1-LS1 is built to withstand exposure to dust, moisture, and harsh chemicals, ensuring durability in even the most demanding environments. It supports multiple communication protocols, including HART®, FOUNDATION™ fieldbus, and Profibus PA, which ensures seamless integration into both modern and legacy control systems.

Technical Specifications

Specification	Details
Model	Emerson KL3106X1-LS1
Module Type	Intelligent Field Transmitter
Measurement Type	Pressure, Level
Communication Protocol	HART®, FOUNDATION™ fieldbus, Profibus PA
Output Signal	4-20 mA, Digital (HART)
Accuracy	±0.05% of Span
Temperature Range	-40°C to 85°C (-40°F to 185°F)
Power Supply	12–42 VDC
Dimensions	9.6" x 7.5" x 7.0" (244 mm x 190 mm x 178 mm)
Weight	3.20 kg (7.05 lbs)
Ingress Protection	IP66/IP67
Housing Material	Stainless Steel

Recommended Related Models

For additional features or alternative configurations, consider these Emerson models:

Emerson KJ4001X1-BA1 – A versatile multi-variable transmitter for pressure and flow measurements, providing excellent flexibility for complex systems.
Emerson Rosemount 3051 – Offers multi-variable measurement for pressure, flow, and level, with advanced diagnostics for improved process reliability.
Emerson Rosemount 8700 – A non-intrusive flow transmitter for high-pressure applications, designed for minimal maintenance and enhanced performance in harsh conditions.

Popular Emerson Models

For high-performance pressure and level measurement, consider these popular Emerson transmitters:

Emerson Rosemount 3051 – Well-known for its multi-variable capabilities, offering advanced diagnostics for improved control over process operations.
Emerson 1151 – A cost-effective solution for pressure measurement, ideal for general industrial applications.
Emerson Rosemount 2088 – A simple and economical solution for pressure measurement, commonly used in less complex industrial systems.

Applications

The KL3106X1-LS1 Intelligent Field Transmitter is ideal for a range of critical applications that require precise pressure and level measurement:

Oil & Gas: Monitors wellhead pressure, pipeline levels, and reservoir pressure to ensure safe, efficient operations in upstream, midstream, and downstream processes.
Chemical Processing: Provides pressure and level measurement in reactors, tanks, and distillation columns, optimizing production while ensuring compliance with safety regulations.
Power Generation: Measures boiler pressure, turbine levels, and cooling water pressures, helping to maintain the safe and efficient operation of power plants.
Water Treatment: Monitors water levels and pressure in treatment facilities, optimizing purification processes and ensuring regulatory compliance.
Food & Beverage: Measures level and pressure in processing lines, maintaining product quality and meeting the specific regulatory requirements of the industry.

Advantages

High Accuracy: The KL3106X1-LS1 offers ±0.05% of span accuracy, ensuring precise measurement even in critical applications where reliability is paramount.
Multi-Variable Measurement: The transmitter simultaneously measures pressure and level, reducing the need for multiple devices and simplifying the system design, which leads to reduced installation costs.
Advanced Diagnostics: With Smart Diagnostics, the transmitter continuously monitors its health and provides early warnings of potential issues, enabling predictive maintenance and reducing unplanned downtime.
Durability in Harsh Conditions: The KL3106X1-LS1 features IP66/IP67 ingress protection, making it resistant to dust, moisture, and harsh chemicals, ensuring reliable operation in demanding environments.
Wide Temperature Range: The transmitter operates within a temperature range of -40°C to 85°C (-40°F to 185°F), making it ideal for use in both cold and high-temperature environments.
Flexible Integration: The KL3106X1-LS1 supports HART®, FOUNDATION™ fieldbus, and Profibus PA, making it compatible with a wide range of industrial control systems, both new and legacy.

Technical FAQs

What types of measurements does the KL3106X1-LS1 provide?
The KL3106X1-LS1 provides both pressure and level measurements, offering multi-variable measurement to improve system performance and reduce equipment needs.
What is the accuracy of the KL3106X1-LS1?
The KL3106X1-LS1 has an accuracy of ±0.05% of span, delivering precise measurements for critical industrial processes.
How does the KL3106X1-LS1 support predictive maintenance?
The transmitter features Smart Diagnostics, which continuously monitors the device’s health, providing early warnings and allowing for predictive maintenance to avoid costly downtimes.
What industries benefit from the KL3106X1-LS1?
The KL3106X1-LS1 is suitable for industries such as oil & gas, chemical processing, power generation, water treatment, and food & beverage, where accurate pressure and level measurement is critical.
What communication protocols are supported by the KL3106X1-LS1?
The KL3106X1-LS1 supports HART®, FOUNDATION™ fieldbus, and Profibus PA, allowing it to integrate easily into both modern and legacy control systems.
What is the temperature range of the KL3106X1-LS1?
The transmitter operates in temperatures ranging from -40°C to 85°C (-40°F to 185°F), making it suitable for both cold and high-temperature applications.
What ingress protection rating does the KL3106X1-LS1 have?
The KL3106X1-LS1 has an IP66/IP67 ingress protection rating, which means it is dust-tight and protected from moisture and harsh chemicals, making it perfect for use in rugged industrial environments.
What is the weight of the KL3106X1-LS1?
The KL3106X1-LS1 weighs 3.20 kg (7.05 lbs), ensuring it is manageable for both installation and ongoing maintenance.
What power supply is required for the KL3106X1-LS1?
The KL3106X1-LS1 operates on a 12–42 VDC power supply, which is commonly used for industrial transmitters.
How does the KL3106X1-LS1 integrate with existing control systems?
The KL3106X1-LS1 supports HART®, FOUNDATION™ fieldbus, and Profibus PA protocols, making it easy to integrate into various process control systems, both new and legacy.
