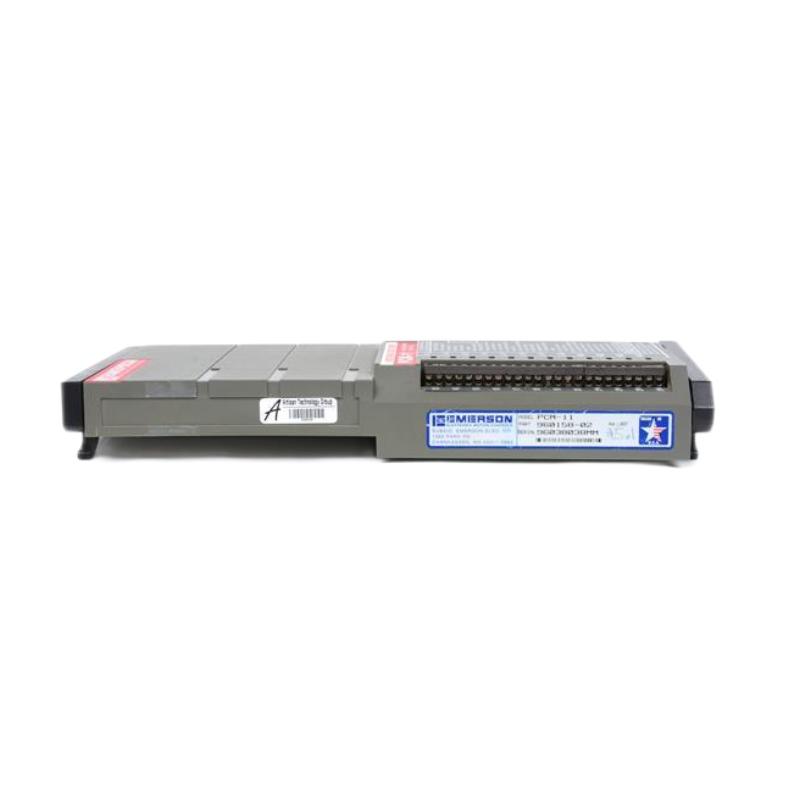

The Emerson PCM-11 Power and Control Module is a vital component for optimizing the performance and reliability of industrial control systems. Designed to provide stable power supply and enhanced control capabilities, the PCM-11 ensures smooth operation for a wide variety of process control applications. Widely used in industries like oil & gas, chemical processing, energy, and water treatment, the PCM-11 offers a powerful and reliable solution for mission-critical systems.

The PCM-11 integrates advanced power management and control functions, ensuring that connected control devices, sensors, and transmitters are supplied with clean and stable power, reducing the risks associated with power fluctuations and system downtime. Its modular design allows for flexible integration into existing systems and provides scalability for future expansion.

Built with Emerson’s expertise in automation technology, the PCM-11 guarantees high efficiency, reliability, and long-lasting performance. Its compact size, intuitive operation, and robust protection features make it an essential tool in maintaining the integrity of control systems in demanding environments.

Technical Specifications

Specification	Details
Model	Emerson PCM-11
Module Type	Power and Control Module
Power Supply	24 VDC (Nominal)
Input Voltage Range	18 VDC to 36 VDC
Output Power	12 VDC, 24 VDC, 48 VDC
Control Features	Power monitoring, Load regulation, Fault detection
Dimensions (HxWxD)	8.5" x 6.5" x 4.0" (216 mm x 165 mm x 101 mm)
Weight	2.5 kg (5.5 lbs)
Temperature Range	-20°C to 60°C (-4°F to 140°F)
Protection	Overcurrent, Overvoltage, Overtemperature protection
Ingress Protection	IP20
Communication	Integrated with Emerson's control systems via proprietary protocols

Recommended Related Models

For additional flexibility or alternative configurations, consider these Emerson models that complement or expand on the features of the PCM-11:

Emerson PCM-21 – A higher power variant that provides expanded power management for large-scale systems, capable of handling more demanding control applications.
Emerson ROC800 – A remote operations controller that integrates seamlessly with PCM-11, offering more advanced field control and monitoring capabilities.
Emerson DeltaV™ PKS – A distributed control system (DCS) offering advanced process control, where the PCM-11 can provide stable power and control for smaller or larger modules within the system.

Popular Emerson Models

For power management and control applications, these Emerson models are commonly used:

Emerson ROC800 – A versatile remote operations controller with integrated communication and power management features, well-suited for remote or distributed applications.
Emerson DeltaV™ PKS – A high-performance control system that integrates power and control capabilities across industrial processes.
Emerson ControlWave® – Offers edge computing capabilities and remote control functions, particularly useful in industries with complex system management needs.

Applications

The Emerson PCM-11 Power and Control Module is ideal for a wide range of industrial applications requiring stable and reliable power management:

Oil & Gas: Manages power distribution for critical wellhead control systems, pipeline monitoring, and subsea control systems, ensuring consistent performance in extreme environments.
Chemical Processing: Provides reliable power and control for process automation systems, helping optimize production while ensuring safety and compliance with regulatory standards.
Energy: Powers and manages control systems in power plants, renewable energy systems, and substation automation, ensuring that all power equipment operates within safe and optimal parameters.
Water Treatment: Ensures stable and reliable operation of water treatment plants, pumping stations, and water distribution systems, contributing to efficient water management and treatment.
Manufacturing: Supplies power to automation systems, robotic systems, and sensors, contributing to precise manufacturing operations and minimizing downtime.

Advantages

Stable Power Supply: The PCM-11 ensures continuous and clean power for control systems, preventing power fluctuations that could otherwise lead to failures or inaccuracies.
Modular Design: Its flexible design makes it easy to integrate into various control systems, and its scalability supports future system expansions without requiring complete overhauls.
Advanced Protection Features: Equipped with built-in overcurrent, overvoltage, and overtemperature protection, the PCM-11 helps safeguard the connected systems and equipment from electrical damage.
Compact and Lightweight: The PCM-11 features a compact form factor (216 mm x 165 mm x 101 mm), making it suitable for installations where space is limited while delivering reliable performance.
Versatile Applications: Whether in remote locations or high-demand environments, the PCM-11 provides a flexible power management solution that can be used across oil & gas, chemical, energy, and water treatment industries.
Robust Performance in Harsh Conditions: With an operating temperature range of -20°C to 60°C and IP20 ingress protection, the PCM-11 operates effectively in a range of environmental conditions, ensuring durability and reliability.

Technical FAQs

What type of power does the PCM-11 require?
The PCM-11 operates on a 24 VDC nominal power supply and has an input voltage range from 18 VDC to 36 VDC, providing flexibility for different power sources.
What protection features does the PCM-11 have?
The PCM-11 is equipped with overcurrent, overvoltage, and overtemperature protection, ensuring that both the module and the connected devices remain safe from electrical damage.
What is the operating temperature range of the PCM-11?
The PCM-11 can operate in temperatures ranging from -20°C to 60°C (-4°F to 140°F), making it suitable for both extreme cold and high-temperature environments.
How does the PCM-11 support system scalability?
The PCM-11’s modular design allows for easy integration into larger systems, enabling future expansion without the need for complete system upgrades.
What industries can benefit from the PCM-11?
The PCM-11 is ideal for industries such as oil & gas, chemical processing, power generation, water treatment, and manufacturing, where reliable power management is crucial.
What is the ingress protection rating of the PCM-11?
The PCM-11 has an IP20 ingress protection rating, which provides protection against dust and foreign objects larger than 12mm, but it is not waterproof. It is suitable for indoor installations where environmental exposure is minimal.
What communication features does the PCM-11 support?
The PCM-11 integrates seamlessly with Emerson's control systems and supports proprietary protocols, enabling smooth communication with other Emerson devices in the system.
What is the weight of the PCM-11?
The PCM-11 weighs approximately 2.5 kg (5.5 lbs), making it manageable for both installation and ongoing maintenance.
Can the PCM-11 be used in remote locations?
Yes, the PCM-11 is designed to work in both remote and harsh environments, offering reliable power management and control capabilities for offshore or onshore installations.
What is the output power of the PCM-11?
The PCM-11 provides 12 VDC, 24 VDC, and 48 VDC output power, suitable for a variety of industrial devices that require consistent voltage for operation.
