Introduction

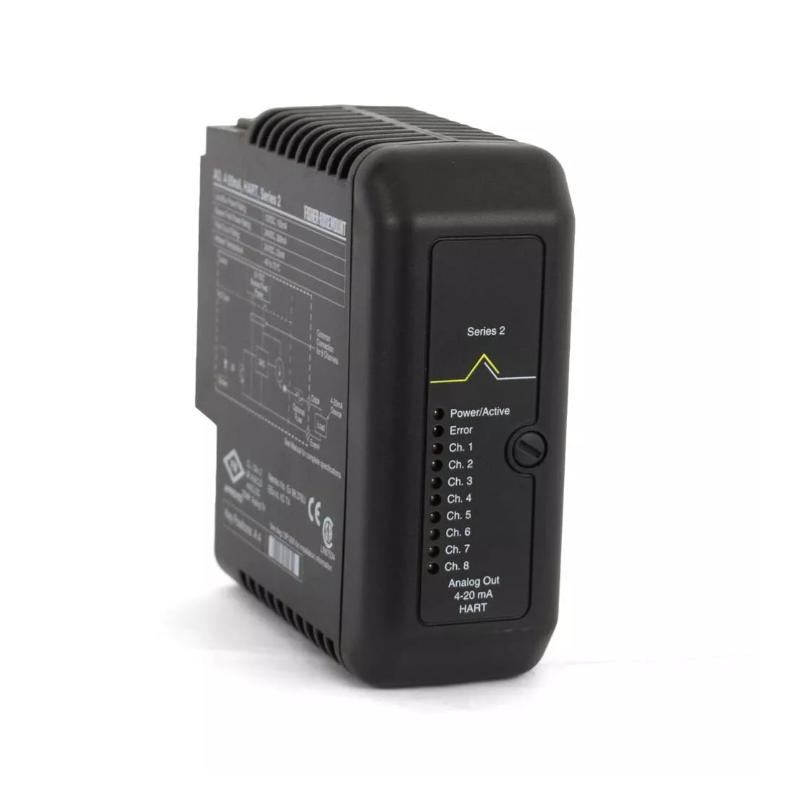

The Emerson KJ3221X1-BA1 12P2531X142 Analog Output Module provides precise and reliable analog signal control for industrial automation systems. Engineered for continuous operation and seamless integration with Emerson DeltaV DCS, it allows engineers to drive actuators, valves, and other field devices accurately. Compact, robust, and highly compatible, this module is a key component for achieving stable and efficient process control in demanding industrial environments.

Technical Specifications

Feature	Specification
Product Type	Analog Output Module
Model	KJ3221X1-BA1 / 12P2531X142
Function	Digital-to-analog signal conversion
Output Type	4–20 mA / 0–10 V
Mounting	Control cabinet installation
Operating Mode	Continuous operation
System Compatibility	Emerson DeltaV DCS
Dimensions	107 × 41 × 105 mm
Weight	0.231 kg
Application Environment	Industrial process control

Recommended Related Models

Emerson KJ3220X1-BA1 Analog Input Module
Emerson KJ3000X1 Power Supply Module
Emerson KJ3221X1-AA1 Digital Output Module

Popular Related Models

Emerson KJ3001X1 CPU Module
Emerson KJ3220X1-AA1 Analog Input Module
Emerson KJ3002X1 Communication Interface Module

Applications

The Emerson KJ3221X1-BA1 Analog Output Module is engineered for reliable analog signal transmission in industrial automation systems. Common applications include:

Converting digital control signals into precise analog outputs for actuators and valves.
Supporting process control in chemical, petrochemical, and energy industries.
Driving field devices requiring 4–20 mA or 0–10 V analog signals.
Integration into Emerson DeltaV distributed control systems (DCS).
Facilitating system expansion and redundancy in analog output channels.

Advantages

High-Precision Output: Ensures accurate control of process variables and field devices.
Stable Signal Transmission: Maintains signal integrity even under continuous operation.
Compact and Efficient: Designed for dense cabinet installation.
Seamless System Integration: Fully compatible with Emerson DeltaV DCS architectures.
Industrial Reliability: Built to operate continuously in demanding environments.

Technical FAQs

What is the primary function of the KJ3221X1-BA1 module?
It converts digital control signals into precise analog outputs.
What types of analog signals does it support?
Supports 4–20 mA and 0–10 V output signals.
Is this module suitable for continuous operation?
Yes, it is designed for 24/7 industrial use.
Can it be installed in compact cabinets?
Yes, its slim design supports space-efficient layouts.
Is it compatible with Emerson DeltaV systems?
Fully compatible with Emerson DeltaV distributed control systems.
Can it drive multiple field devices?
Yes, within the rated output limits.
Does it require active cooling?
No, standard cabinet airflow is sufficient.
Is it suitable for system upgrades?
Yes, it can be used in both new installations and expansions.
Does the module maintain signal accuracy under load fluctuations?
Yes, it is engineered for stable output under varying conditions.
Is it commonly used in mission-critical processes?
Yes, it is widely deployed in industries requiring precise analog control.
