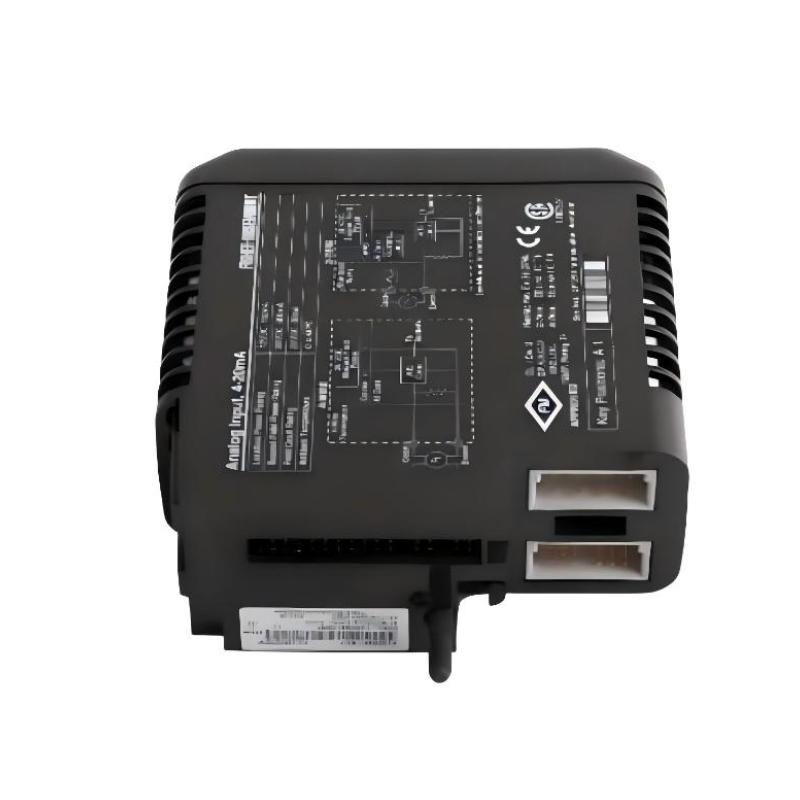

Emerson VE4003S2B4 Analog Input Card

Applications

The Emerson VE4003S2B4 Analog Input Card is designed for high-precision data acquisition in modern automation systems. Common applications include:

• Monitoring temperature, pressure, and flow in chemical plants

• Industrial process control in oil & gas facilities

• Water and wastewater treatment monitoring

• Energy management systems in power plants

• Food and beverage process automation

Advantages

• Exceptional Accuracy: High-resolution input ensures precise measurement.

• Robust Construction: Engineered to withstand harsh industrial environments.

• Easy Integration: Fully compatible with Emerson VE Series controllers.

• Flexible Input Range: Supports multiple analog signals, including 4–20 mA and 0–10 V.

• Reduced Downtime: Reliable design minimizes maintenance and system interruptions.

Technical FAQs

1. What types of analog signals are supported?
   Supports 4–20 mA, 0–10 V, and thermocouple inputs.

2. How many channels does the card have?
   16 analog input channels.

3. Can it operate in extreme temperatures?
   Yes, operational range is -20°C to 60°C.

4. What is the card’s weight and size?
   Dimensions: 107 × 41 × 105 mm, Weight: 0.36 kg.

5. Does it support high-speed sampling?
   Yes, optimized for real-time process monitoring.

6. Is it compatible with Emerson VE4000 racks?
   Fully compatible with VE4000 I/O racks.

7. Can it handle thermocouple inputs?
   Yes, it supports common thermocouple types with integrated cold-junction compensation.

8. Is there any built-in protection?
   Yes, includes overvoltage and short-circuit protection.

9. What is the communication interface?
   Operates through the VE Series backplane for seamless controller integration.

10. Is it suitable for safety-rated systems?
    Yes, compliant with SIL1 requirements.
