Introduction

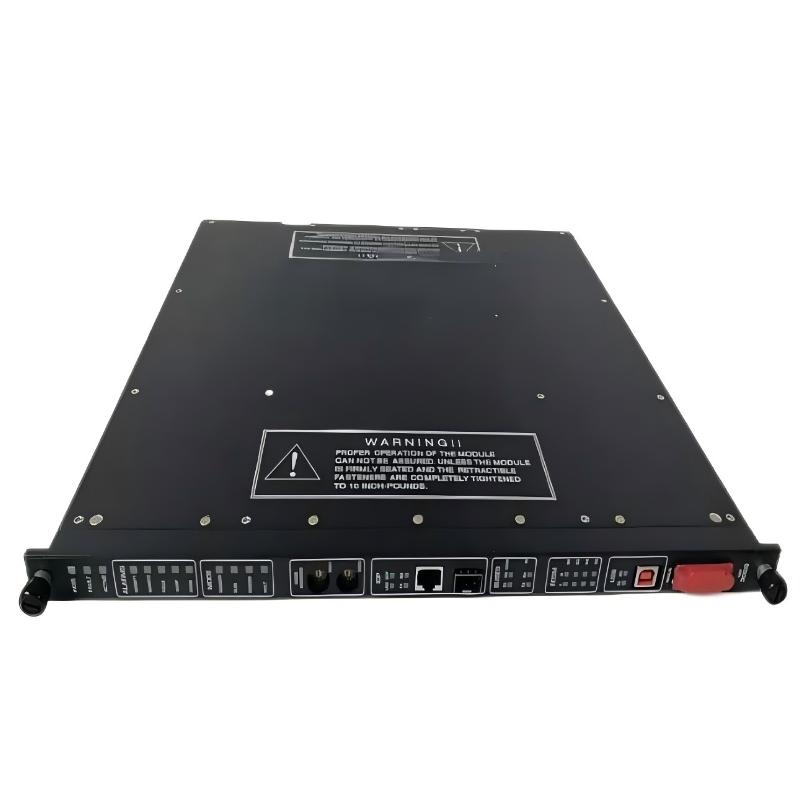

The Triconex 3009 Enhanced Main Processor Module is the core of Triconex’s advanced safety and control systems, providing enhanced processing power for complex, high-speed applications. Designed for TMR architectures, it ensures fault-tolerant operation and deterministic control for safety-critical processes. Its robust diagnostics, seamless integration with Triconex I/O modules, and industrial-grade reliability make it ideal for demanding industrial environments requiring maximum uptime and safety integrity.

Technical Specifications

Parameter	Details
Module Type	Enhanced Main Processor Module
Model	Triconex 3009
Function	Real-time safety and control processing
Redundancy	Triple Modular Redundancy (TMR) support
Diagnostics	Self-tests for CPU, memory, and communication
Communication	Triconex proprietary protocols; supports industrial networks via interface modules
Operating Environment	Industrial-grade temperature and EMI tolerance
Dimensions	228 × 160 × 75 mm
Weight	1.6 kg
System Compatibility	Triconex TMR systems, Triconex I/O modules

Recommended Related Models

Model	Description
Triconex 3008	Main Processor Module
Triconex 3010	Communication Interface Module
Triconex 3020	Power Supply Module
Triconex 3030	Analog Input Module
Triconex 3040	Analog Output Module
Triconex 3050	Digital Input Module
Triconex 3060	Digital Output Module
Triconex 3070	Ethernet Interface Module
Triconex 3080	Expansion I/O Module
Triconex 3007	Backup Processor Module

Popular Related Models

Model	Description
Triconex 3002	Main Processor for standard applications
Triconex 3004	Backup CPU module
Triconex 3005	Digital Input/Output module
Triconex 3006	Analog Input/Output module
Triconex 3015	Communication module
Triconex 3025	Redundant power supply
Triconex 3035	Safety interface module
Triconex 3045	Expansion module
Triconex 3055	Process control interface
Triconex 3065	Fieldbus communication module

Applications

The Triconex 3009 Enhanced Main Processor Module is designed for high-performance safety and critical control applications. It is widely used in oil & gas, chemical processing, power generation, and nuclear industries where high-speed deterministic processing and advanced safety logic are required. Its enhanced capabilities make it suitable for complex process loops and large-scale redundant control systems.

Advantages

High-speed deterministic processing for advanced safety and control tasks.
Triple Modular Redundancy (TMR) support ensures maximum fault tolerance.
Enhanced processing power compared to standard 3008 modules for larger applications.
Built-in diagnostics for continuous monitoring of processor, memory, and communications.
Seamless integration with Triconex I/O and communication modules for scalable systems.

FAQs

What is the main function of the 3009 module?
It executes high-speed safety and control logic in TMR configurations.
How does it differ from the 3008 module?
The 3009 offers enhanced processing speed and memory capacity for larger or more complex applications.
Is redundancy supported?
Yes, it operates in a triple modular redundancy (TMR) system.
What communication options are available?
It supports Triconex proprietary protocols and interfaces with industrial networks through communication modules.
Can it handle SIL 3/SIL 4 safety applications?
Yes, it is certified for high-integrity safety instrumented functions.
How is system integrity ensured?
Built-in diagnostics and voting mechanisms maintain reliable and consistent operation.
Is hot-swapping supported?
Yes, safe hot-swap is possible with proper system configuration.
What is the typical response time of the module?
It provides deterministic real-time processing suitable for safety-critical control loops.
Can it integrate with all Triconex I/O modules?
Yes, it is fully compatible with Triconex analog, digital, and communication modules.
What maintenance procedures are recommended?
Routine verification via diagnostics and system tests, as specified in Triconex manuals.
