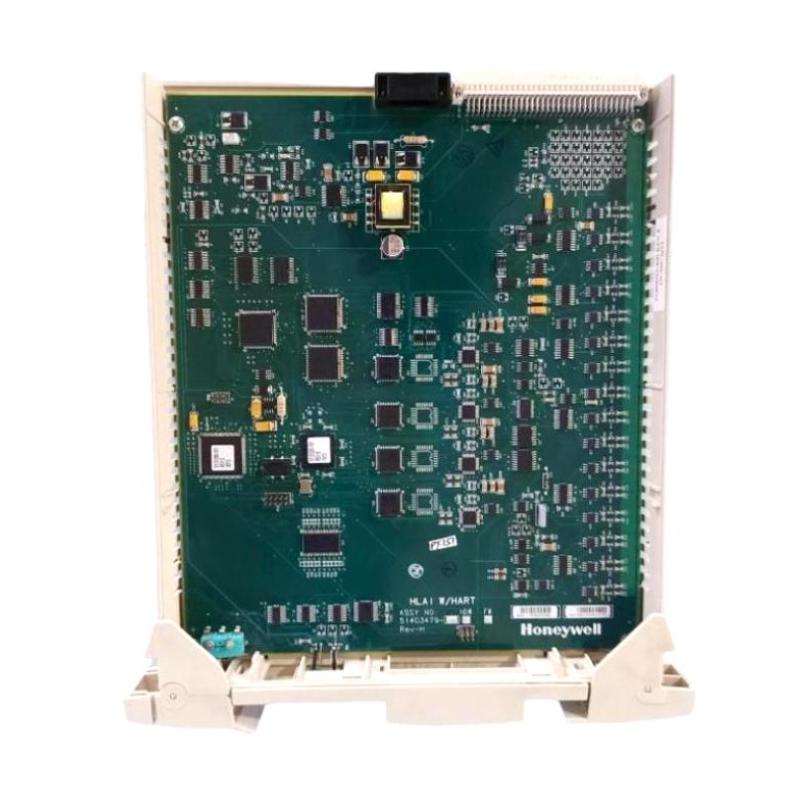

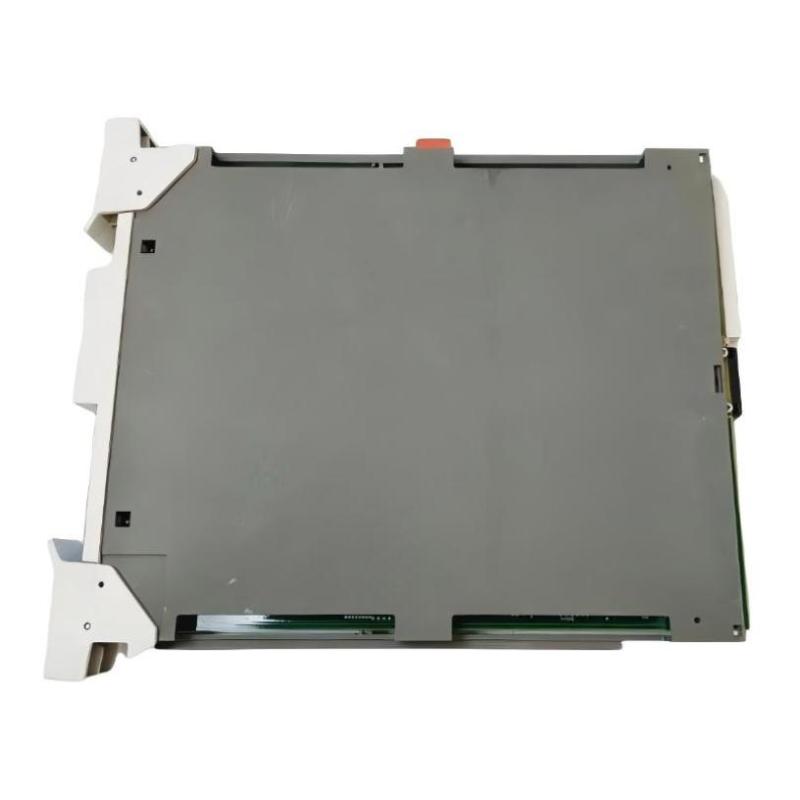

Honeywell MC-PHAI01 51403479-150 High-level Analog Input Module

Applications

• High-level Analog Signal Acquisition: Designed for accurate measurement of high-level voltage and current signals.

• Process Control Systems: Used in Honeywell DCS environments for monitoring critical process variables.

• Industrial Automation: Suitable for power, oil & gas, chemical, and manufacturing applications.

• System Expansion & Retrofit: Ideal for adding or upgrading analog input capacity in existing systems.

• Control Room Instrumentation: Supports stable and reliable data input for control and monitoring.

Advantages

• High accuracy and stability for high-level analog signals.

• Designed for seamless integration with Honeywell control systems.

• Compact form factor allows high-density I/O installations.

• Reliable performance in harsh industrial environments.

• Simplifies maintenance and system diagnostics.

Technical FAQs

1. What type of signals does the MC-PHAI01 support?
   It supports high-level analog input signals such as voltage and current.

2. Is this module suitable for safety-related applications?
   It is intended for control and monitoring; safety suitability depends on system design.

3. Which Honeywell systems is it compatible with?
   Compatible with Honeywell control and I/O platforms using MC-series modules.

4. Can it be used in retrofit projects?
   Yes, it is commonly used to replace or expand existing analog input modules.

5. Does it support multiple channels?
   Yes, it supports multiple analog input channels (exact count system-dependent).

6. Is calibration required?
   Factory-calibrated; periodic verification may be required per application standards.

7. Does it provide signal isolation?
   Designed to meet industrial isolation requirements for stable signal acquisition.

8. Is it suitable for harsh environments?
   Yes, engineered for continuous industrial operation.

9. Can it be hot-swapped?
   Hot-swap capability depends on the system and carrier configuration.

10. Is configuration done via software?
    Yes, configuration and diagnostics are handled through the control system software.
