Introduction

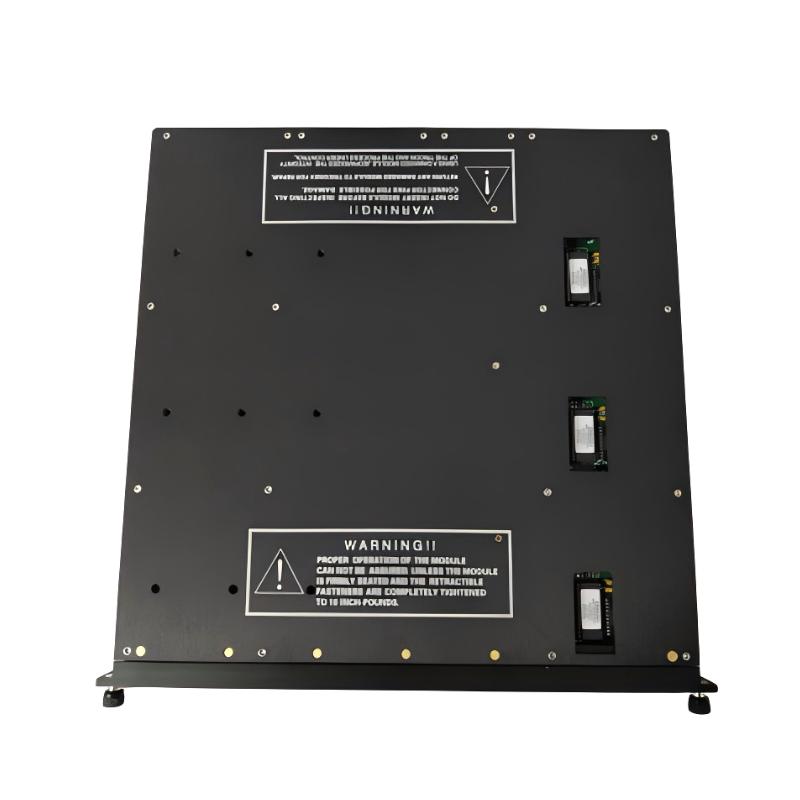

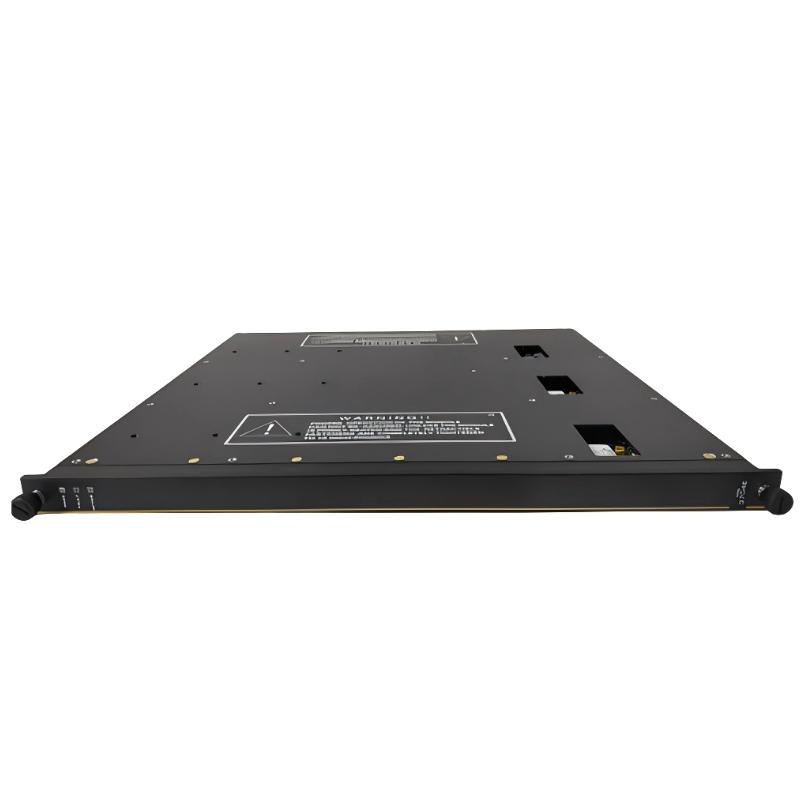

The Triconex 3704E Analog Input Module delivers precise and reliable analog signal acquisition for safety and process control applications. Its TMR-compatible design ensures fault-tolerant, deterministic operation, while integrated diagnostics provide confidence in sensor and wiring integrity. Compact and robust, the 3704E integrates seamlessly with Triconex processors and I/O modules, offering efficient and accurate monitoring of critical process parameters.

Technical Specifications

Parameter	Details
Module Type	Analog Input Module
Model	Triconex 3704E
Input Type	Standard analog signals (4–20 mA, 0–10 V)
Channels	Multiple isolated channels
Diagnostics	Wiring faults, sensor failure detection
Isolation	Channel-to-system isolation
Redundancy	Supports Triple Modular Redundancy (TMR)
Operating Environment	Industrial EMI, vibration, and temperature tolerance
Dimensions	273 × 213 × 25 mm
Weight	1.29 kg
Compatibility	Triconex TMR processors and I/O modules

Recommended Related Models

Model	Description
Triconex 3701A	Analog Output Module
Triconex 3700A	Analog Input Module
Triconex 3540	Analog Output Module
Triconex 3503E	Digital Input Module
Triconex 3504E	Digital Output Module
Triconex 3008	Main Processor Module
Triconex 3009	Enhanced Main Processor Module
Triconex 3070	Ethernet Interface Module
Triconex 3080	Expansion I/O Module
Triconex 3550	Fieldbus Interface Module

Popular Related Models

Model	Description
Triconex 3002	Standard Main Processor
Triconex 3004	Backup CPU Module
Triconex 3005	Digital Input/Output Module
Triconex 3006	Analog Input/Output Module
Triconex 3015	Communication Module
Triconex 3025	Redundant Power Supply
Triconex 3035	Safety Interface Module
Triconex 3045	Expansion Module
Triconex 3055	Process Control Interface
Triconex 3065	Fieldbus Communication Module

pplications

The Triconex 3704E Analog Input Module is designed to capture and process analog signals from field devices in safety-critical and industrial control systems. It is widely used in oil & gas, chemical processing, power generation, and nuclear industries to monitor variables such as pressure, temperature, flow, and level. The module ensures deterministic, reliable data acquisition for TMR (Triple Modular Redundant) safety systems.

Advantages

High-accuracy analog signal acquisition for critical process monitoring.
Supports Triple Modular Redundancy (TMR) for fault-tolerant operation.
Built-in diagnostics detect wiring issues, sensor faults, and signal anomalies.
Robust industrial design tolerates EMI, vibration, and temperature extremes.
Slim, high-density design for efficient control cabinet integration.

FAQs

What types of signals does the 3704E module support?
It supports standard industrial analog signals, including 4–20 mA and 0–10 V inputs.
Is it suitable for safety-critical applications?
Yes, certified for SIL 3 and SIL 4 applications, compatible with TMR systems.
How many input channels are available?
Multiple isolated channels configurable per system requirements.
Does it provide diagnostics for input faults?
Yes, it monitors channel integrity and reports wiring or sensor issues.
Can it operate in redundant configurations?
Yes, fully compatible with Triple Modular Redundancy (TMR) setups.
How does it handle noisy or unstable signals?
Built-in filtering ensures stable, accurate readings.
Is hot-swapping supported?
Yes, safe hot-swap is possible if system configuration allows.
Can it interface with all Triconex processors?
Yes, fully compatible with Triconex 3008, 3009, and other TMR processors.
What is the response time of the analog inputs?
Deterministic sampling with millisecond-level response suitable for safety loops.
What maintenance is recommended?
Regular verification using module diagnostics and system tests per Triconex manuals.
